1/05
10-179
DocuColor 12/DCCS50
Tamper Motor
Principles of Operation
Reissue
Tamper Motor
The Finisher PWB switches on the Tamper Motor when a paper set in the Compiler Tray is
ready to be sent to the Stapler. The Tamper is attached to the Tamper Drive Belt (Figure 1).
When the Tamper Motor is switched on, it pulses, which in turn taps the Tamper against the
side of the paper set. The Tamper Home Sensor monitors the position of the Tamper.

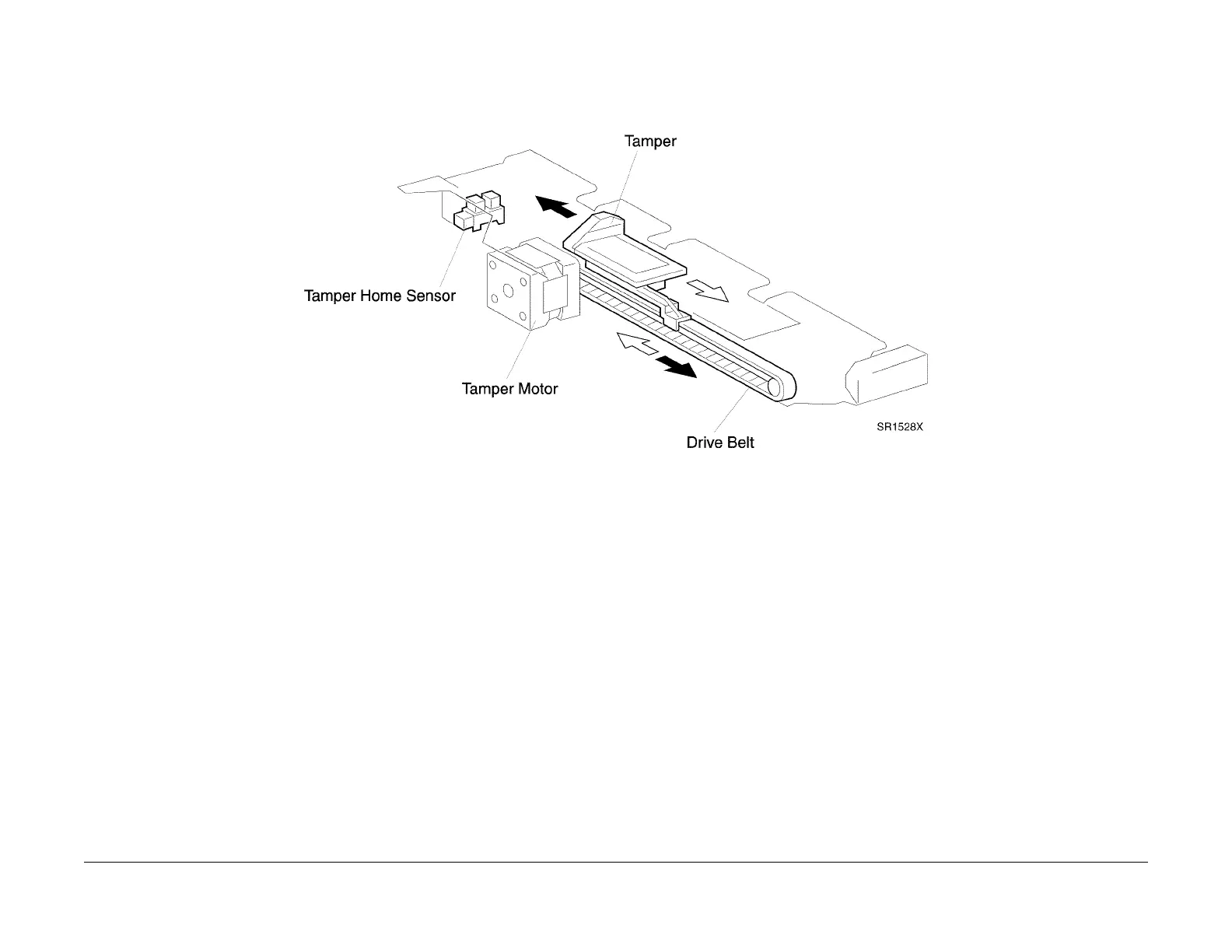

Figure 1 Compiler Tamper and Its Associated Components
Tamper Mechanical Drive Components
1. Tamper Motor
A +24 VDC stepper motor. Drives the Tamper Drive Belt.
2. Tamper Drive Belt
Drives the Tamper.
3. Tamper
Attached to the Drive Belt. The side of the Tamper t
aps the edge of each sheet of paper to
align the set before stapling.
4. Tamper Home Sensor
Monitors the position of the Tamper when it is not activated.
