Xerox DocuColor 12/DCCS50

1/05
4-124
DocuColor 12/DCCS50
REP 8.3.3
Reissue
Repairs and Adjustments
Installation
NOTE: Ensure that the bearings are installed with the flanges inside of the Lift Lever Frame
(Figure 4) and (Figure 5).

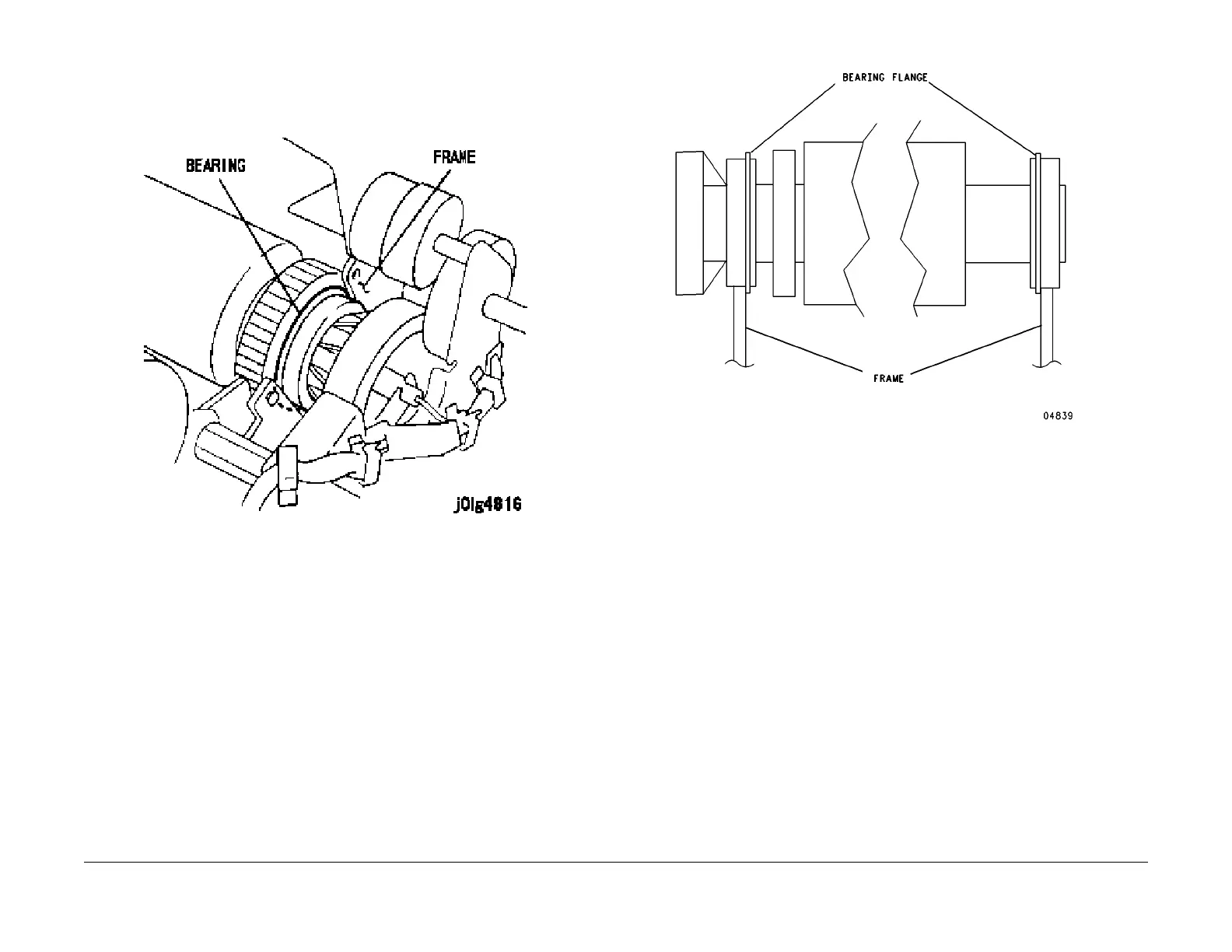

Figure 4 Install the Pressure Roll
Figure 5 Install the Pressure Roll
