Repairs and Adjustments

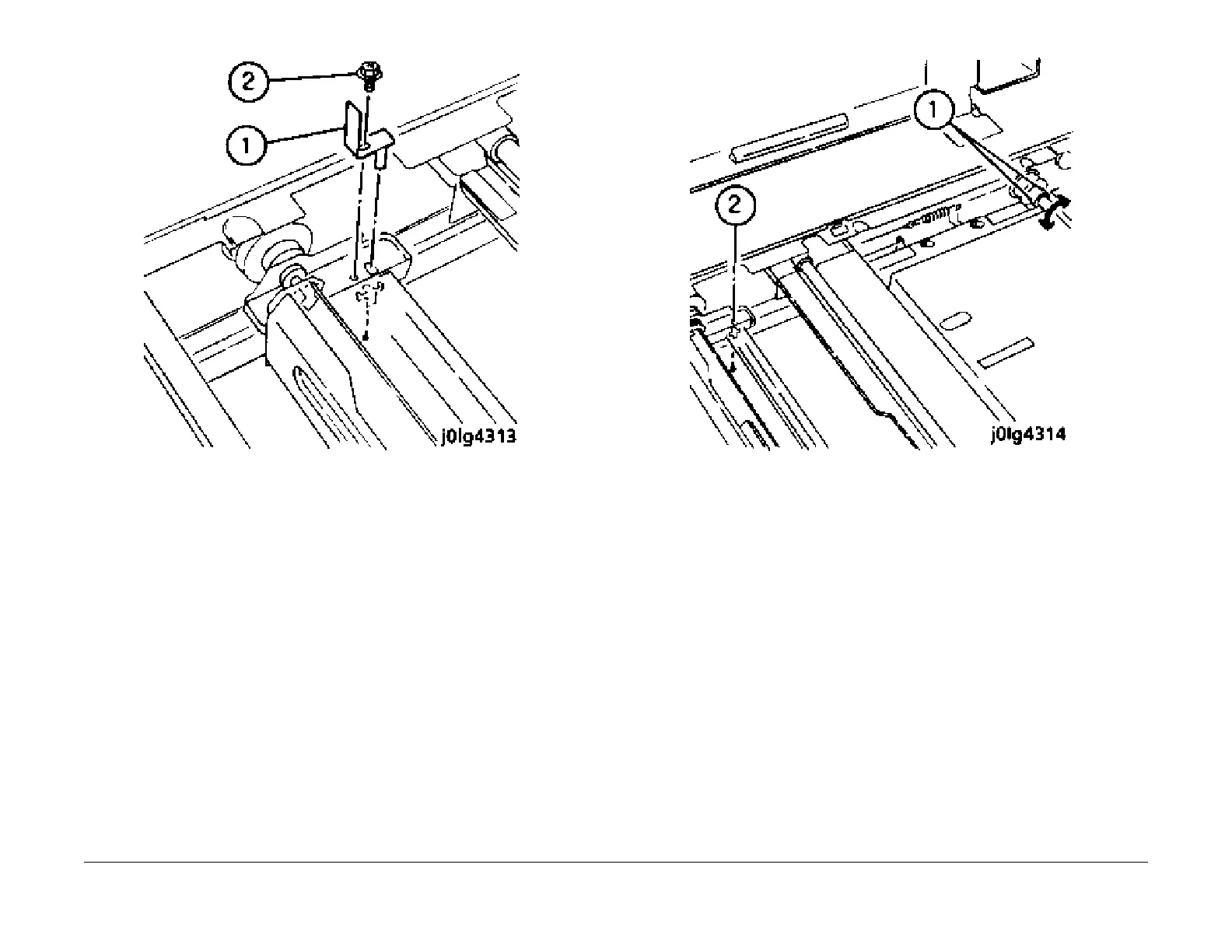

Figure 3 Install the Half Rate Jigs
NOTE: If the Half Rate Carriage jig hole and the rail jig hole do not match and the jigs cannot
be inst
alled, change the pulley lock position (Figure 4).
6. Perform the following to match the jig holes:
1. Loosen the set screws (2), rotate the pulley and match the jig holes.
2. Match the jig holes.
Figure 4 Change the Half Rate Pulley Lock Position
7. Install the jig on the frame jig hole. Check that the jig holes of the frame and the Full Rate
Carriage match (front/rear) (Figure 5).
1. Install the jig (front/rear).
2. Lock them with the screw.
