Xerox DocuColor 12/DCCS50 User Manual

1/05
4-191
DocuColor 12/DCCS50
ADJ. 3.4.1
Repairs and Adjustments
Reissue

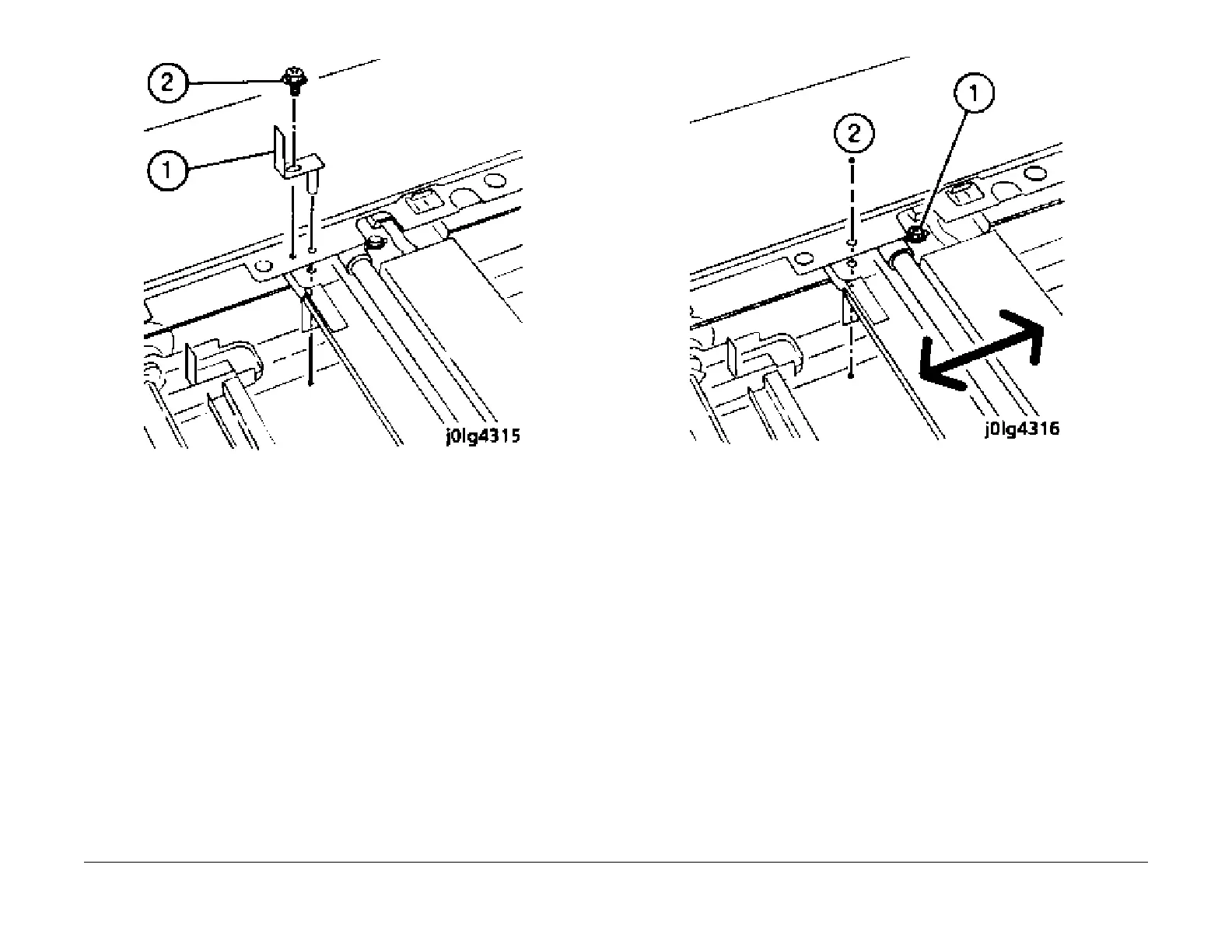

Figure 5 Install the Full Rate Jigs
NOTE: If the Full Rate Carriage jig hole and the rail jig hole do not match and the jigs cannot
be installed,
loosen the lock screw of the carriage cable and match the holes (front/rear) (Fig-
ure 6).
1. Loosen the screw, move the Full Rate Carriage, and match the holes (front/rear).
2. Match the holes (front/rear).
Figure 6 Change the Full Rate Carriage Position
