1/05
4-220
DocuColor 12/DCCS50
ADJ 12.3.3
Reissue
Repairs and Adjustments

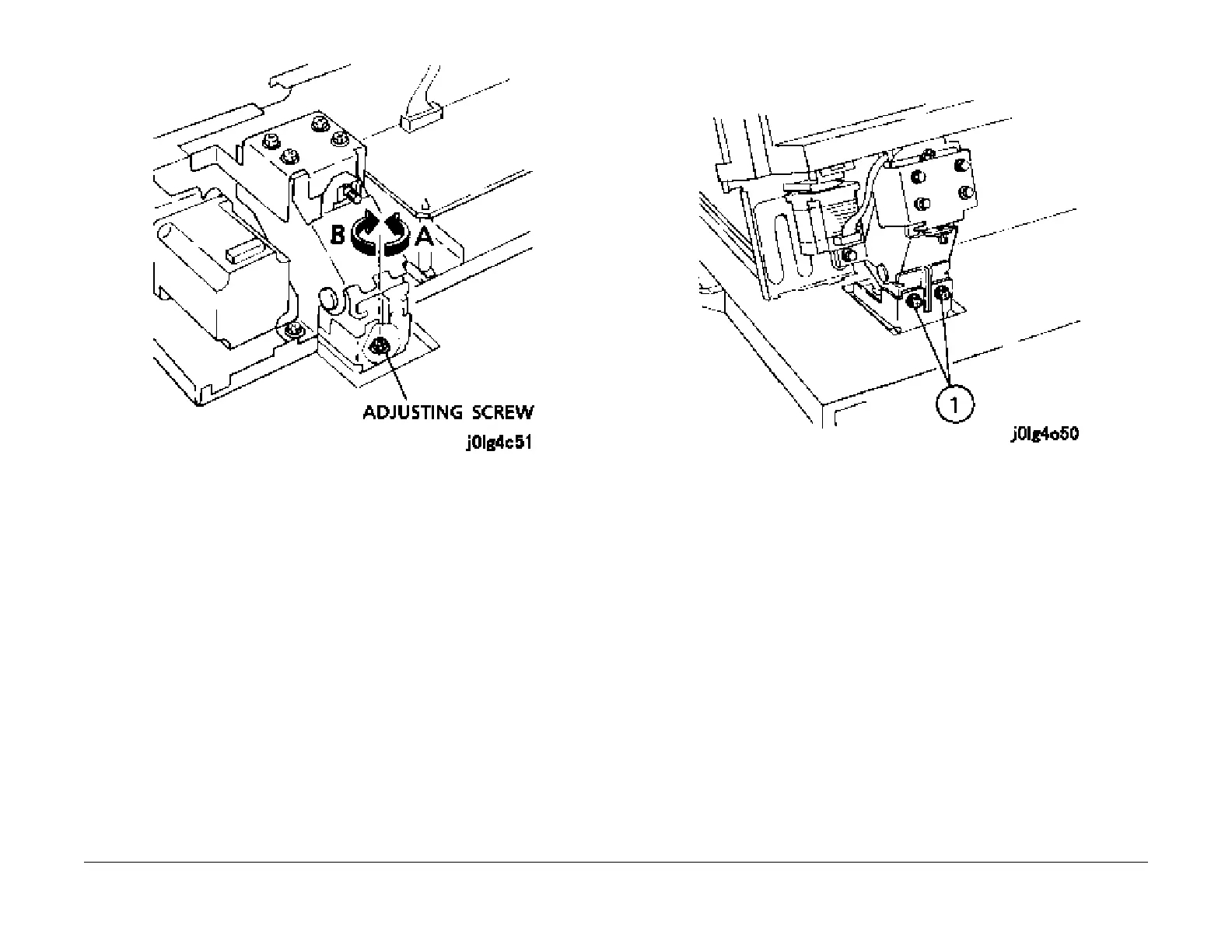

Figure 3 Adjusting the Gap
NOTE:
a. Rotate once in the A direction, approximately 0.75mm lower.
b. Rotate once in the B direction, approximately 0.75mm higher.
3. Open the DADF and tighten the screws (F
igure
4).
1. Tighten the screws (2).
Figure 4 Tightening the Screws
4. Repeat the check steps and make sure that the height is correct.
