1/05
4-94
DocuColor 12/DCCS50
REP 6.7.1
Reissue
Repairs and Adjustments
NOTE: Remove the Black, Yellow, Magenta and Cyan Inner/Outer Dispense Housings.

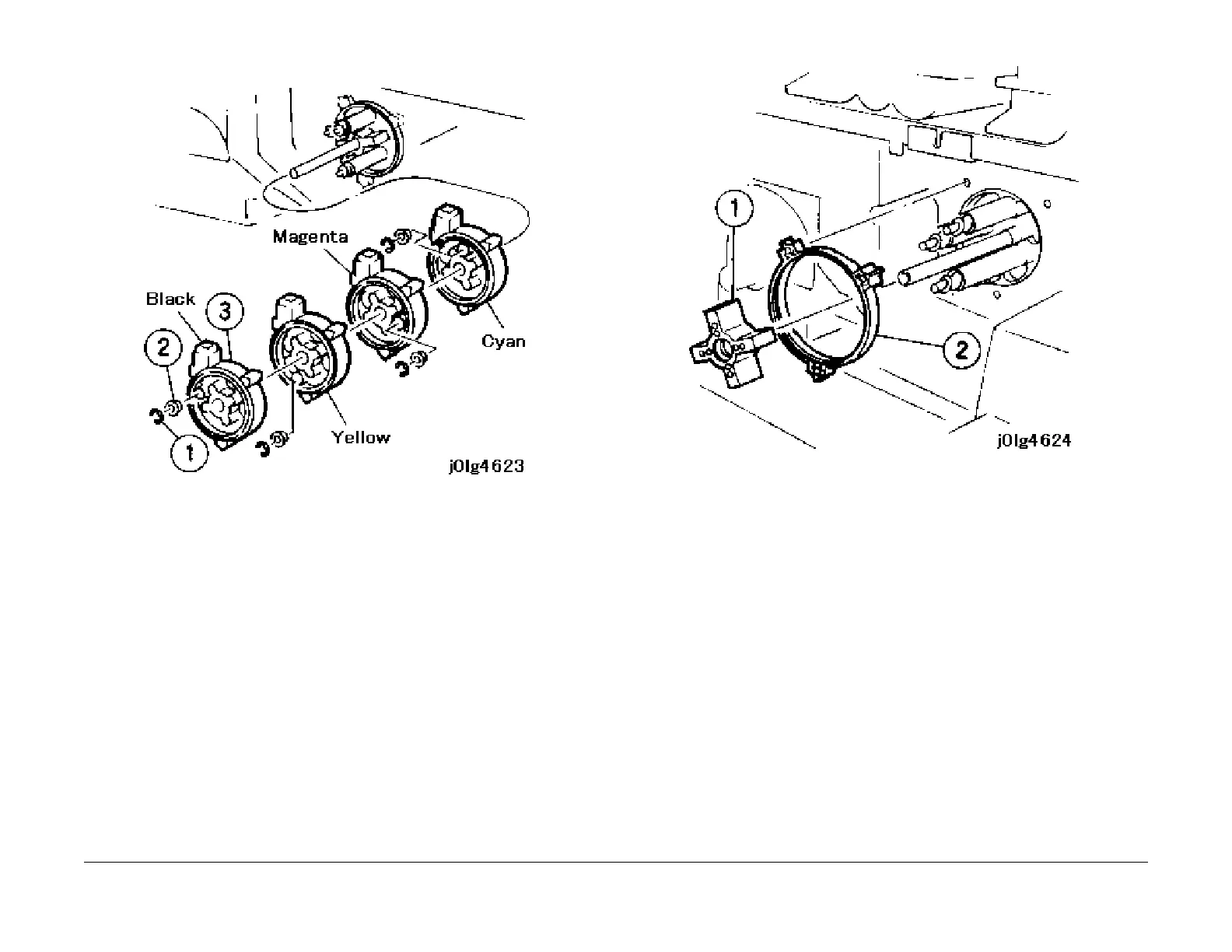

Figure 4 Remove the Inner/Outer DIspense Housings
7. Remove the spacer (Figure 5).
1.
Remove the block.
2. Remove the spacer.
Figure 5 Remove the Spacer
8. Remove the Rotary Auger (Fi
gu
re 6).
NOTE: Mark the Developer Rotary Frame Assembly with the color of the Rotary Auger if
removing m
ore then one Rotary Auger.
1. From inside the machine, release the stopper tab on the Rotary Auger (PL 6.7).
2. Push the Rotary Auger toward the front of the machine to remove it from Rotary
Frame.
