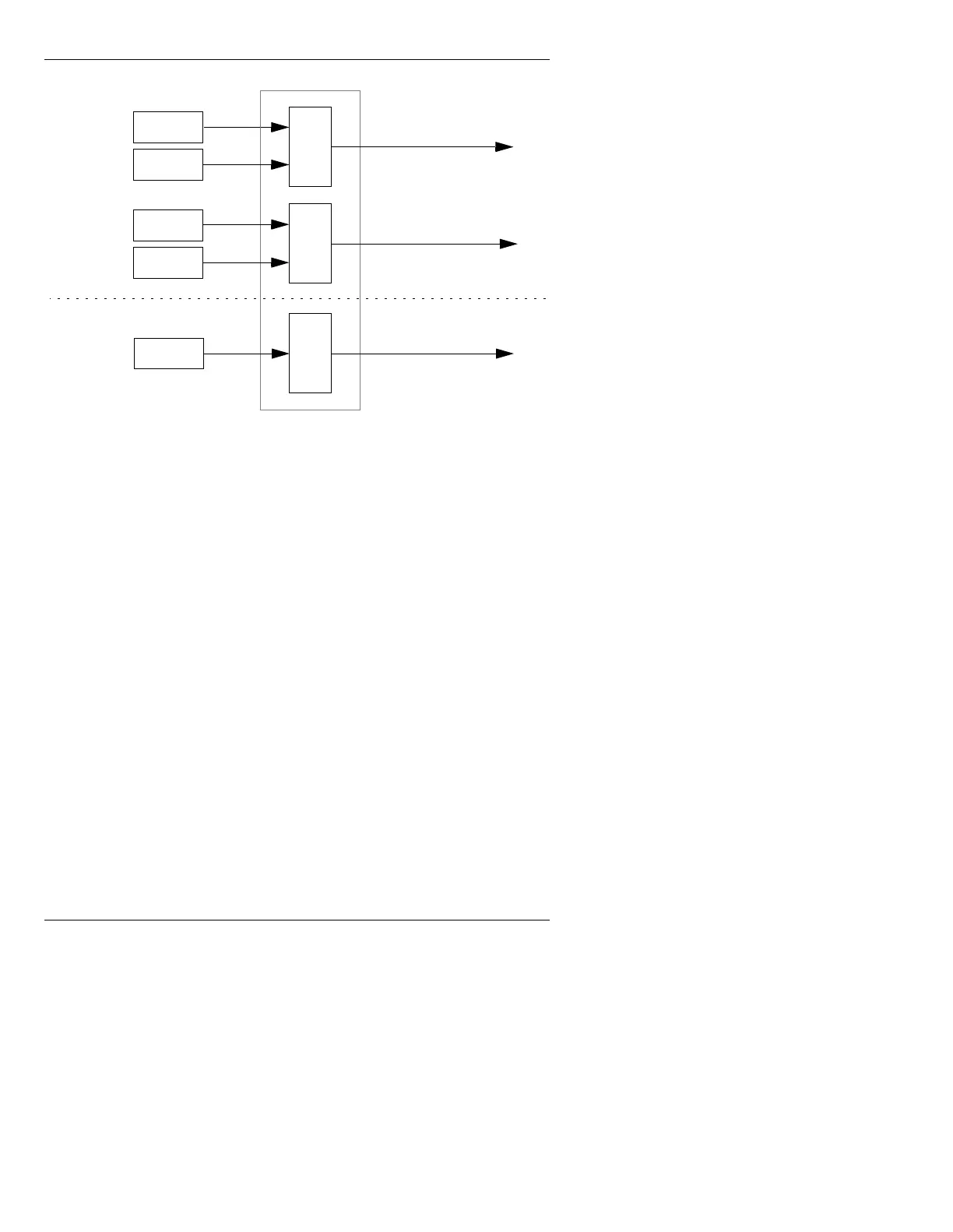

Figure 14-10. iNFiNiT! Input Switching
Three Frame Buffers - Dual Users
In this system, the Primary User has access to frame buff-
ers 1 and 2; and CHANNELS A and B. The Primary
User can use the
CHNG and CNTL CHNG functions.
The Secondary User has access to only frame buffer 3
and PREVIEW. The Secondary User cannot use the
CHNG or CNTL CHNG functions.
2:1
PREVIEW
Buffer 1
Buffer 2
A
B
2:1
1:1Buffer 3
Buffer 1
Buffer 2
Primary
User
Secondary
User
To Next Page
