Buffers & Channels 14-36 Revision D
 L1)L1L7,QSXW6ZLWFKLQJ
'XDO8VH UV7ZR)UDPH %XIIHUV
A two buffer system (Figure 14-9) is divided into two
partitions when in Dual User mode. One partition, allo-
cated to the Primary User, is configured as two 1:1 (1
input:1output) switchers.
The input to each of the Primary User’s switchers
(CHANNEL A or CHANNEL B) can be FB-A or black.
The second partition, allocated to the Secondary User, is
configured as one 1:1 (1 input:1 output) switcher. The
input to the Secondary User’s switcher (PREVIEW) can
be FB-B or black.

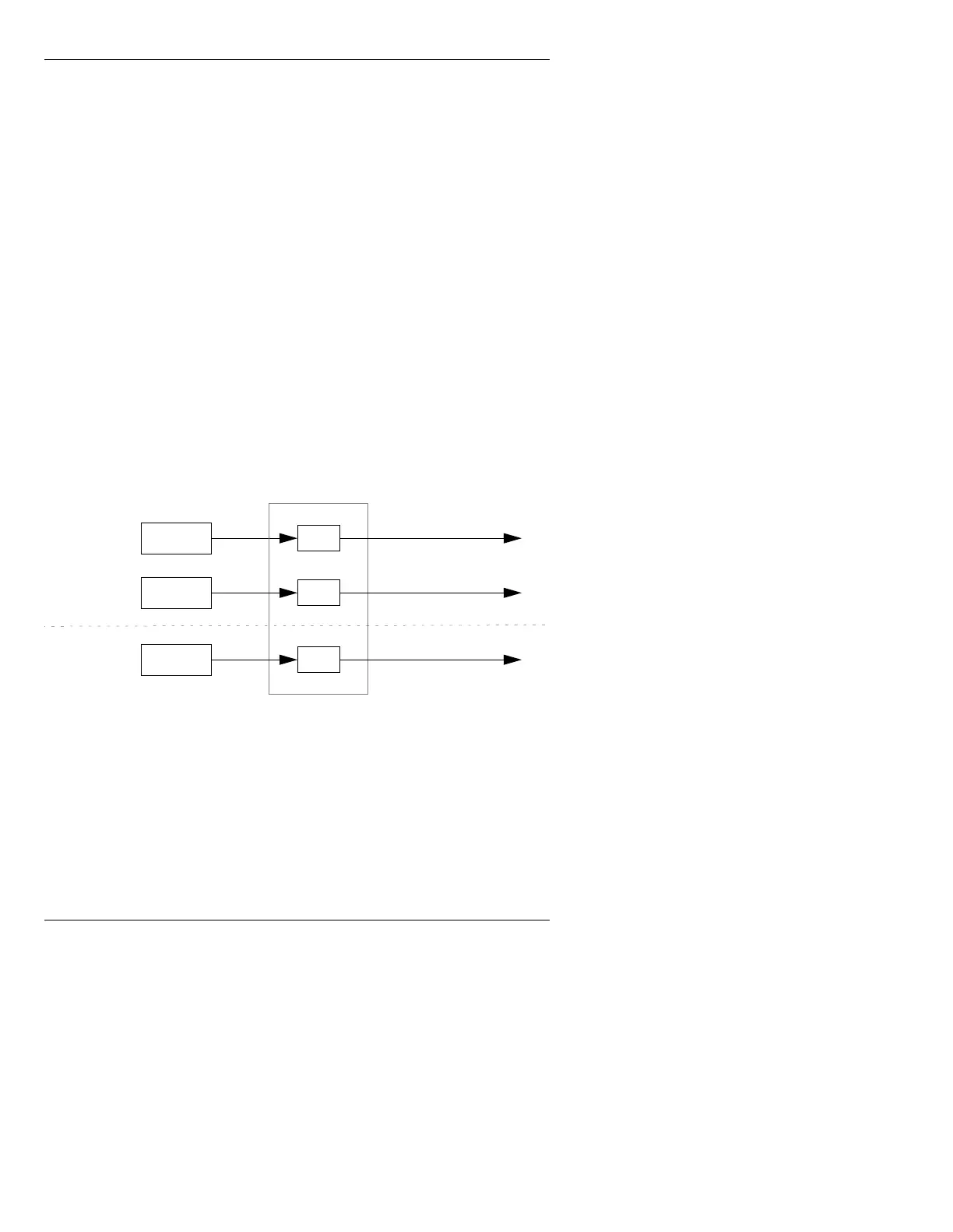

Figure 14-9. iNFiNiT! Input Switching
Two Frame Buffers - Dual Users
1:1
PREVIEW
Buffer 1
1:1
Buffer 1
1:1
Buffer 2
A
B
Primary
User
Secondary
User
