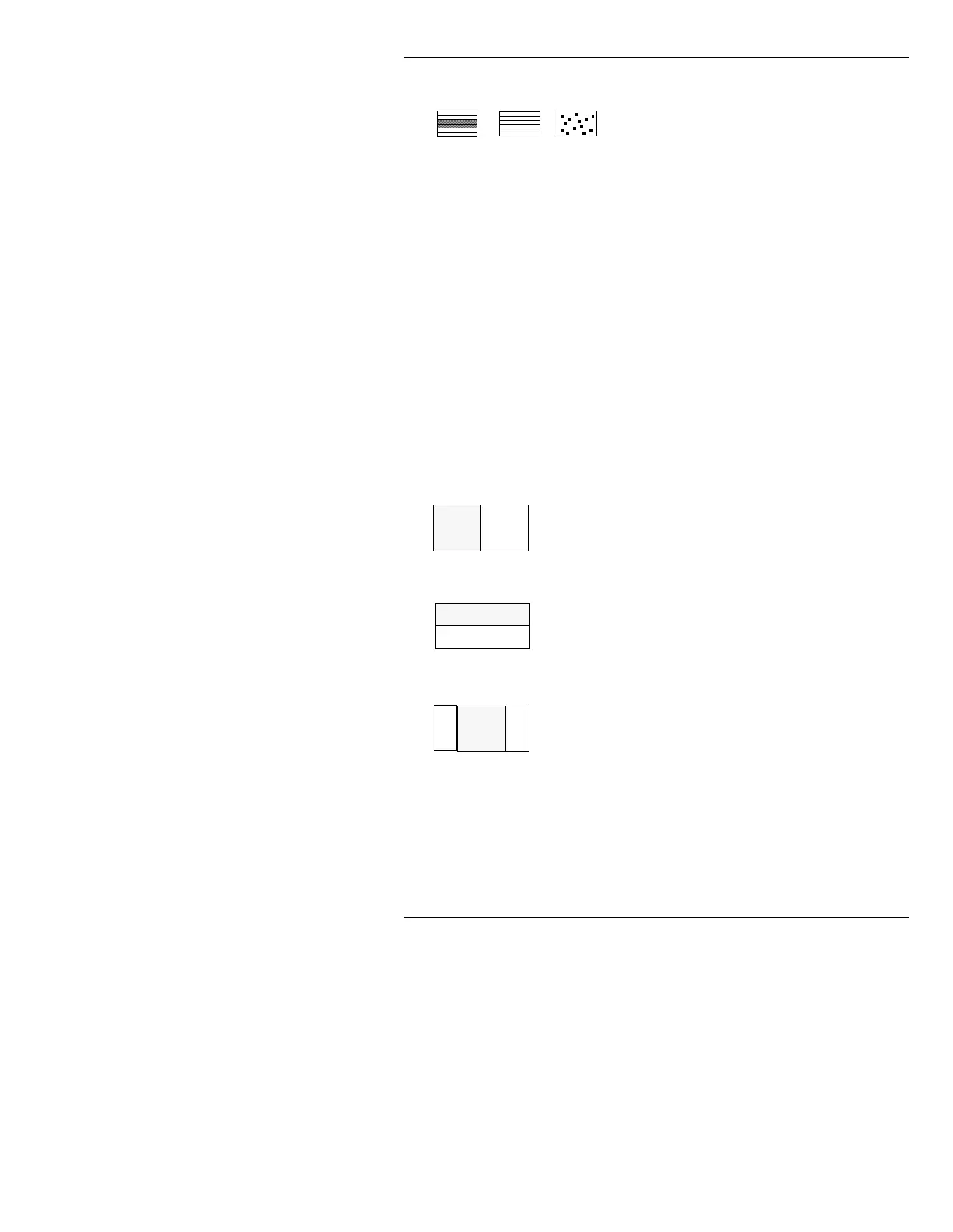

Figure 15-8. Transition Patterns H - J
 :LSHV
As a Wipe executes, the new image overwrites the old
image. Neither image moves. All patterns
A - J are
available to
Wipe.
Transition Patterns
A through E, I and J treat a message
as a full screen image. Using Transition Patterns
F - H,
rows of text can be controlled individually using the Row
Menu (§15.4).
The following Wipes are available:
Horizontal Slide/Wipe:
The new image
overwrites the old image from either the left edge
(
Reverse: Off) or the right edge (Reverse: On)
of the screen.
Vertical Slide/Wipe:
The new image
overwrites the old image from either the top edge
(
Reverse: Off) or the bottom edge (Reverse:
On
) of the screen.
Horizontal Split Wipe:
The new image
overwrites the old image from the center of the
screen and expands simultaneously out towards the
left and right edges of the screen (
Reverse: Off).
OR...
The new image overwrites the old image
simultaneously from the left and right edges of
the screen, and wipes towards the center of the
screen (
Reverse: On).
HI
J
A
B
C
