iNFiNiT! Family Operation Manual
Revision D 3-21 Start-Up
0$;!6\QF$GMXVWPHQWV
NOTE
This procedure requires special test
equipment, and should only be done
by a qualified technician.
The Sync Control icon opens a Sync Control window
(Figure 3-16) for setting sub-carrier phase, vertical phase,
and horizontal phase.

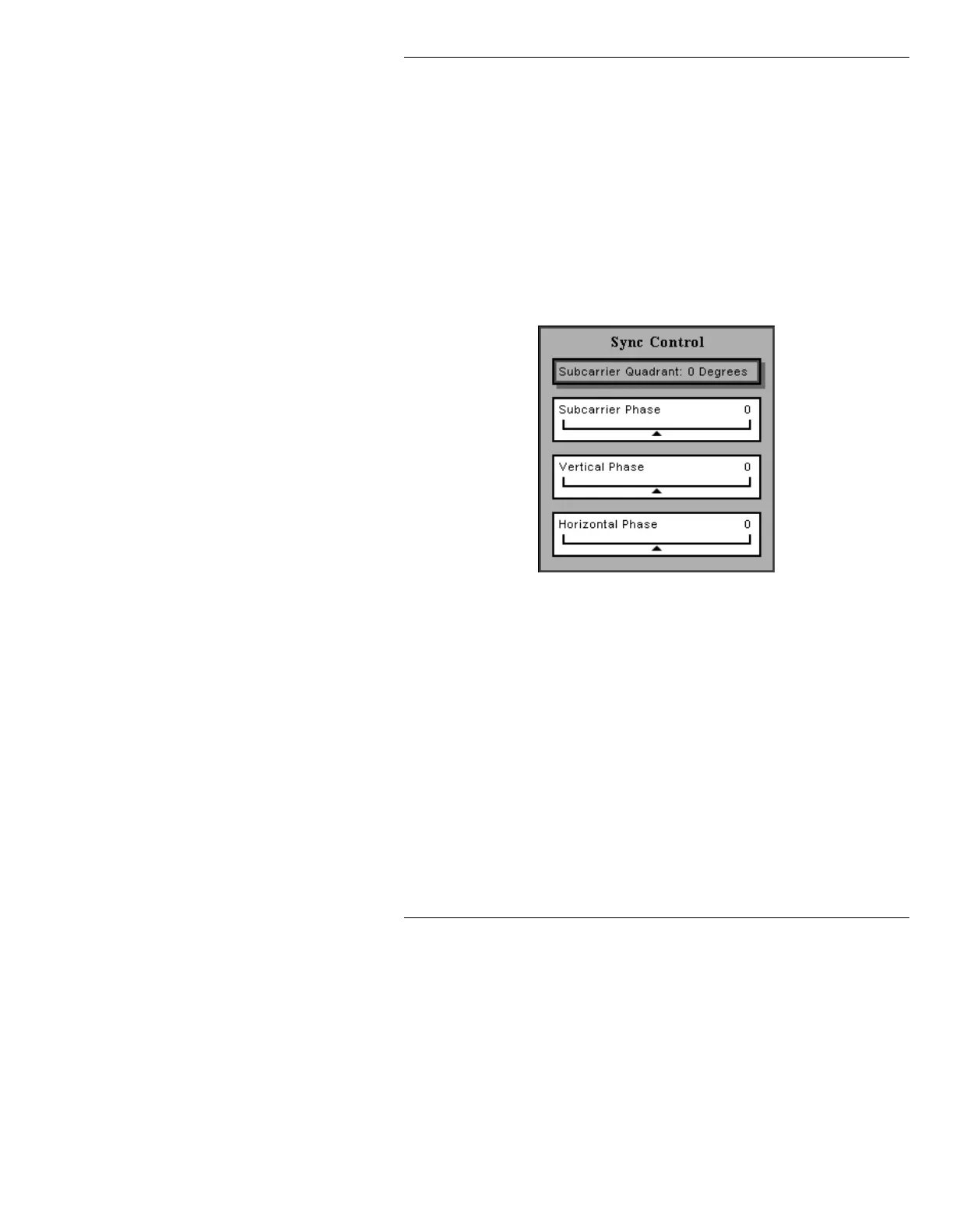

Figure 3-16. MAX!> Sync Control Menu
0$;!6RIWZDUH
6\QF$GMXVWPHQWV
Subcarrier quadrant:
Select the Quadrant field by pressing the SPACE
BAR
to toggle through 90°, 180°, 270°, or 0°.
Subcarrier Phase:
Press Ï to move to the - /+ slider. Press SHIFT
CHAR
+ Ì or Í to adjust the slider.
V or H Phase:
Adjust the sliders by holding SHIFT CHAR and
pressing the cursor keys.
