iNFiNiT! Family Operation Manual
Revision D 2-43 Installation

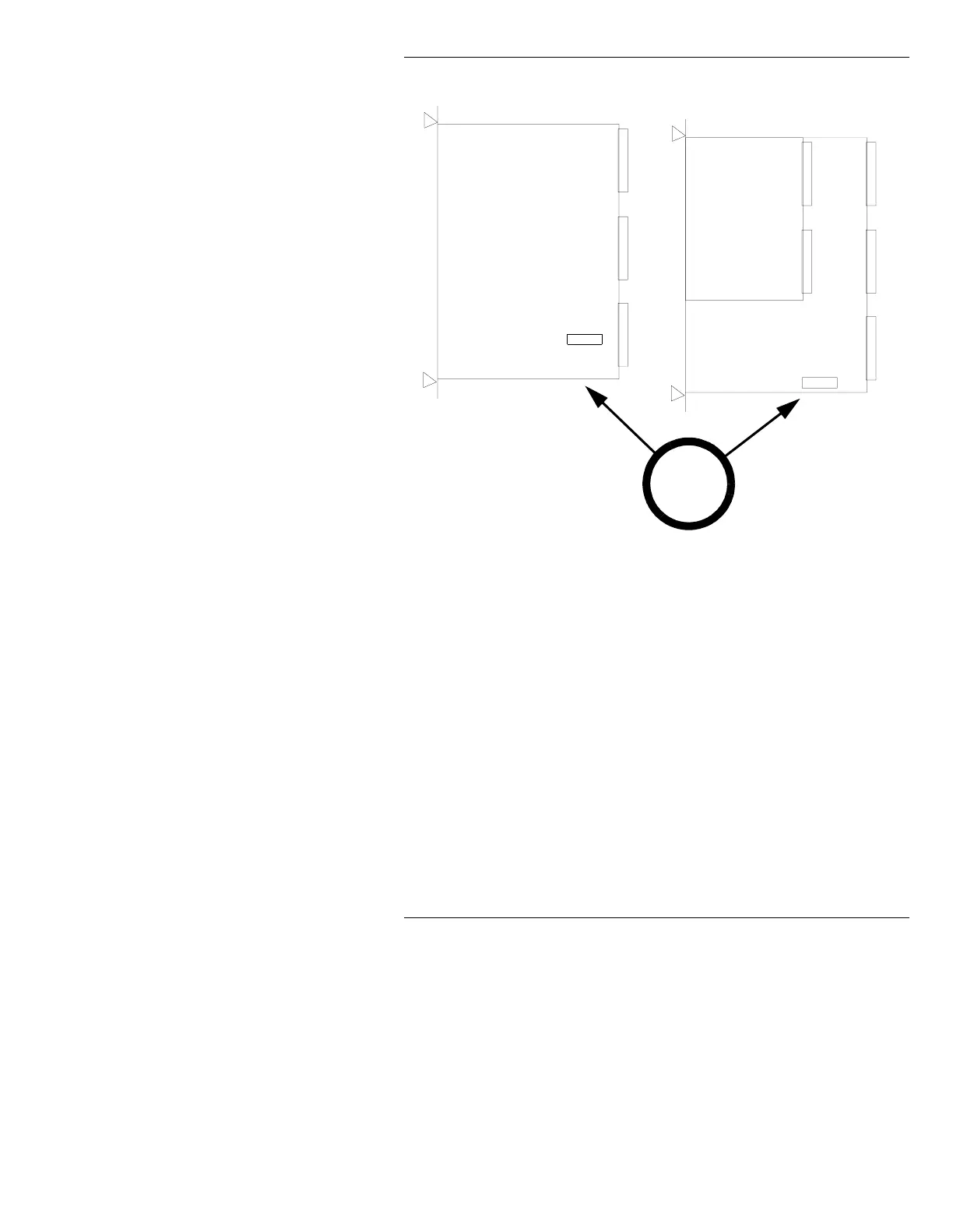

Figure 2-21. iNFiNiT!, MAX!> Host ID Setting
6ZLWFKLQJ/RFDO5HPRWH0RGH
MAXINE! DIP SWITCH
WARNING!
MAXINE! customers must check the
ArcNet ID DIP Switch on the CPU
board before upgrading from
software versions earlier than 9.00,
because there is a possibility that the
system may be forced into Remote
mode regardless of the software
settings. The normal default settings
are 7 - OFF (open), all else ON
(closed).
iNFiNiT!
Transcoder
Board
MAX!>
CPU
Board
SW1
S1
ArcNet
Host ID
Setting
To Next Page
