Chyron infinit! series - 2.4.1.2 Rear View - iNFiNiT!

CHYRON Corporation
Installation 2-10 Revision D

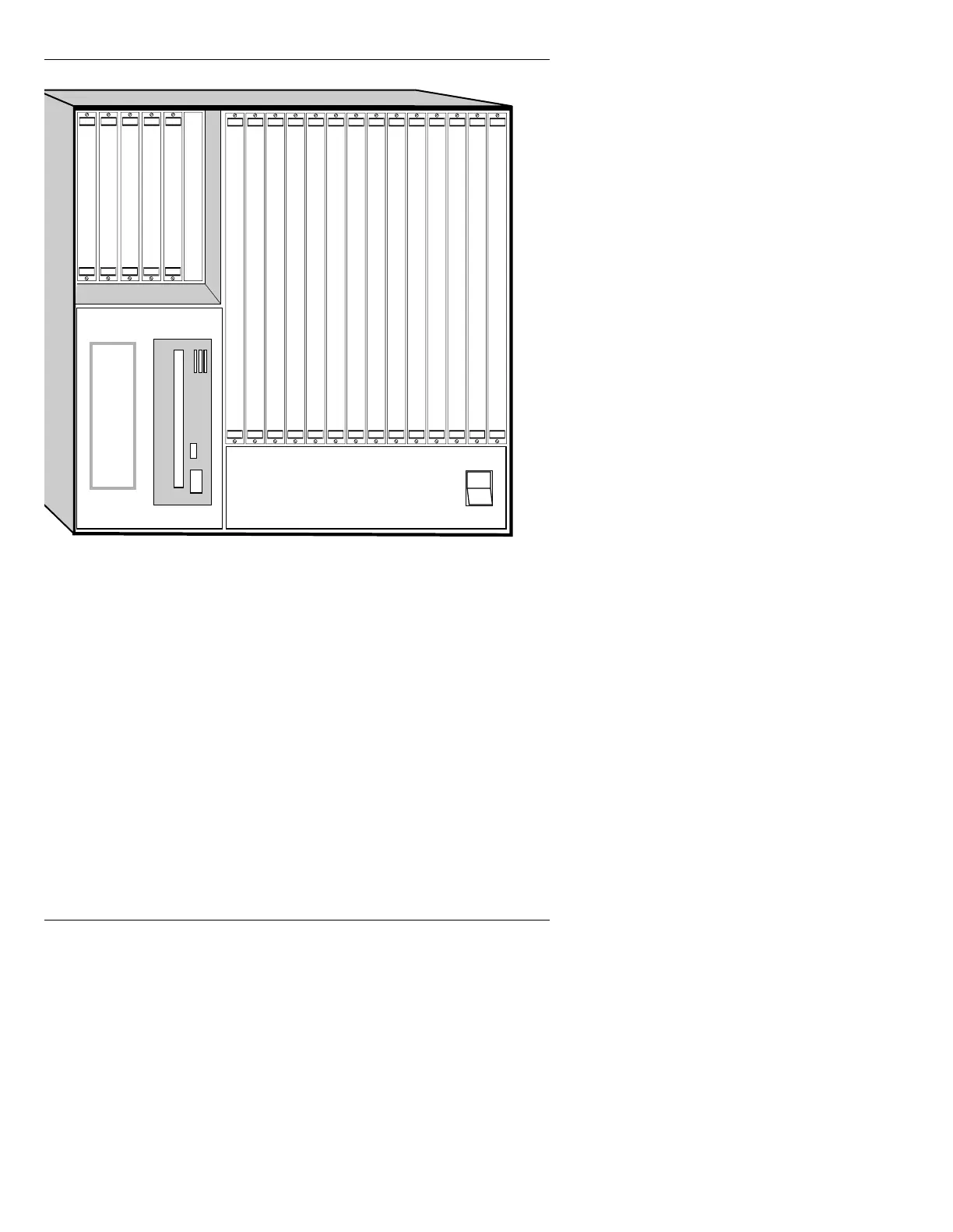

Figure 2-6. iNFiNiT! Chassis - Front View
 5HDU9LHZL1)L1L7
Most inputs and outputs to and from iNFiNiT! are made via
connectors on the rear panel, or the CPU Transition board, of
the main chassis (Figure 2-7).
1
0
J20: SYNC GENERATOR J19: MIX & EFFECTS J18: INTERNAL MIX CHANNEL (OPTION) J17: FRAME BUFFER B J16: FRAME BUFFER A J15: TRANSCODER J14: EXPANSION (601 DIGITAL VIDEO OPTION) J13: EXPANSION (601 DIGITAL VIDEO OPTION) J12: TRANSFORM I (OPTION) J11: EXPANSION (TRANSFORM II OPTION) J10: EXPANSION (TRANSFORM III OPTION) J09: EXPANSION J08: EXPANSION J07: VIDEO INPUT MODULE (OPTION)
J06: NOT USED J05: EXPANSION J04: EXPANSION J03: EXPANSION J02: EXPANSION J01: CPU BOARD
I/OMEGA DRIVE
INTERNAL HARD DRIVE
