Chyron infinit! series - 2.4.2 MAX!> Hardware Description; 2.4.2.1 Front View - MAX!>

iNFiNiT! Family Operation Manual
Revision D 2-13 Installation
 0$; !+ DUGZ DUH' H VFULSWLR Q
 )URQW9LHZ0$;!

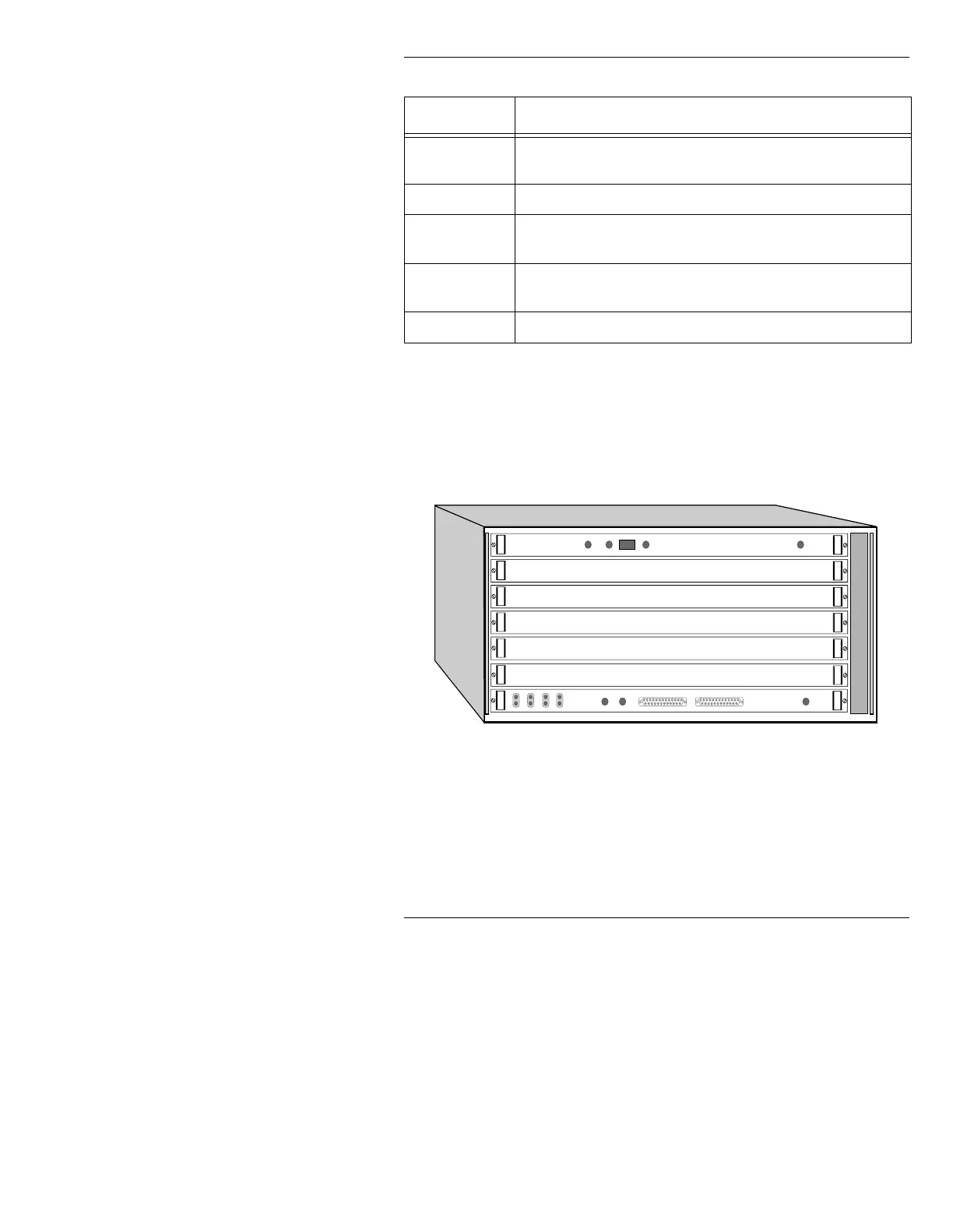

Figure 2-8 shows the MAX!> mainframe with the front door
removed.
Figure 2-8. MAX!> Chassis - Front View
RED
If RGB/YUV equipped, supplies the red or V component
from the RGB/YUV board. (0.7v p-p)
KEY
Analog (linear) key signal output. (1.0v p-p)
PROMPT
Displays icon based prompts, menus, commands and current
operating information. (Monochrome)
GEN LOCK
For attaching an external (house) source of genlock, if
iNFiNiT! internal genlock is not to be used.
SYNC OUT
Supplies iNFiNiT! composite sync to external equipment.
Table 2-2: iNFiNiT! Video Connections
&RQQHFWRU )XQFWLRQ
J07: SYNC GENERATOR
J06: FRAME BUFFER A
J05: FRAME BUFFER B (OPTION)
J04: MIX & EFFECTS
J03: TRANSFORM (OPTION)
J02: VIM (OPTION)
J01: CPU
ABORT RESET
FAIL STAT
RUN SCON
LAN FUSE
SCSI VME
