iNFiNiT! Family Operation Manual
Revision D 2-25 Installation

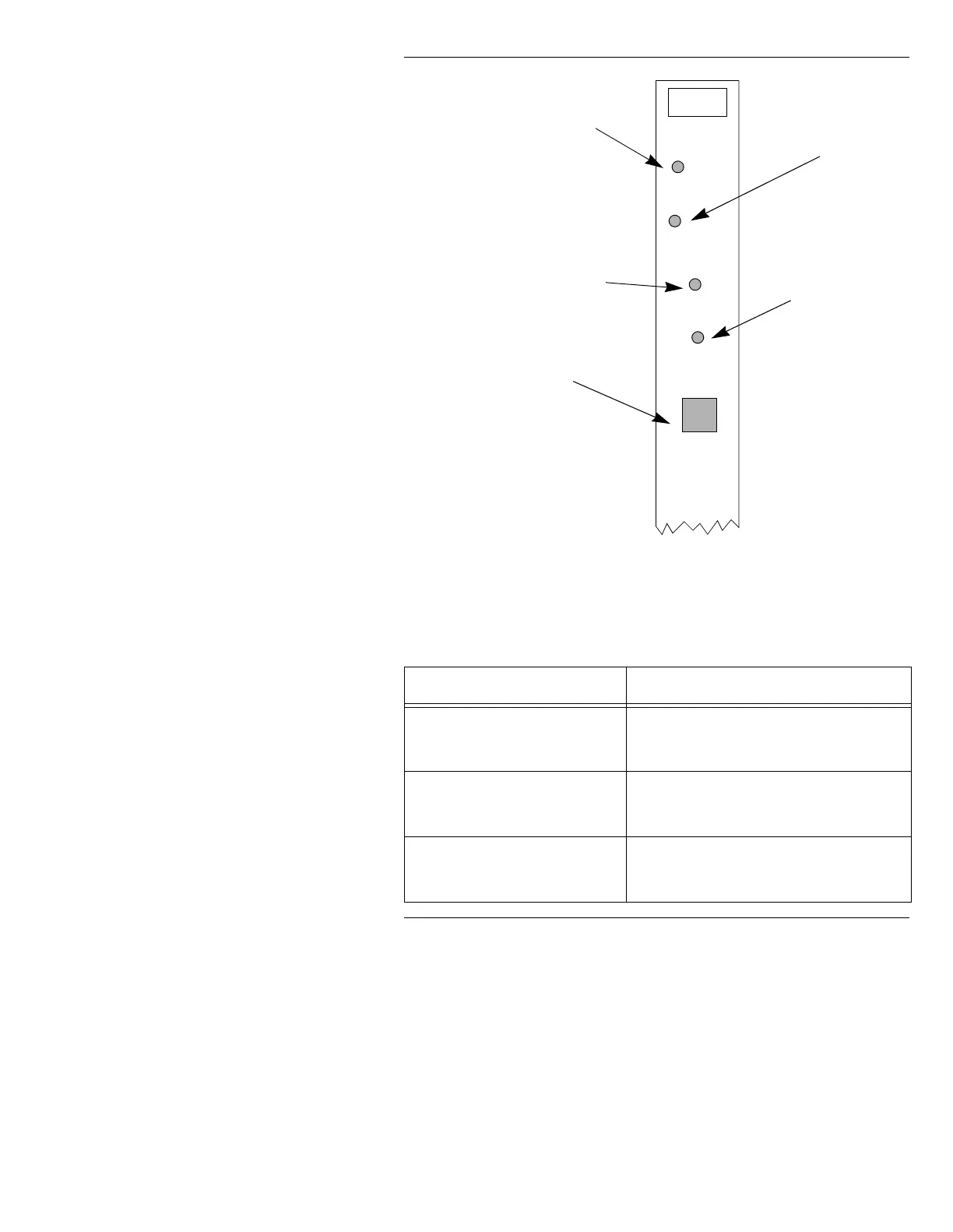

Figure 2-15. Sync Gen Board Adjustments
Table 2-10: Analog Sync Gen Board Adjustments
(All Analog Video Systems)
&RQWUR O )XQFWLRQ
SC Fine Adjust
Adjusts the chroma subcarrier frequency
when the system is in a stand-alone con-
figuration.
Burst Position
Adjusts the position of the burst signal
with respect to the picture blanking inter-
val.
Burst Width
Adjusts the duration of the burst signal,
which should be nine cycles of subcarrier
from + 20 IRE to - 20 IRE.
GENLOCK Lamp
Subcarrier Fine Adjust
Burst Width
Burst Position
S1, Switch 2: Chroma Enable
Switch 3: Luma Notch Enable
Other switches are not used
