iNFiNiT! Family Operation Manual
Revision D 16-23 Mix Effects
[ ] 3. Create or read a message in the buffer that is
assigned to CHANNEL A, and/or create or
read a message in the buffer that is assigned to
CHANNEL B.
[ ] 4. Create or read a message in PREVIEW
[ ] 5. Press
CNTL B or select Bkg Select.
To turn off
Bkg Select:
• Press
CNTL B or select Bkg Select again.

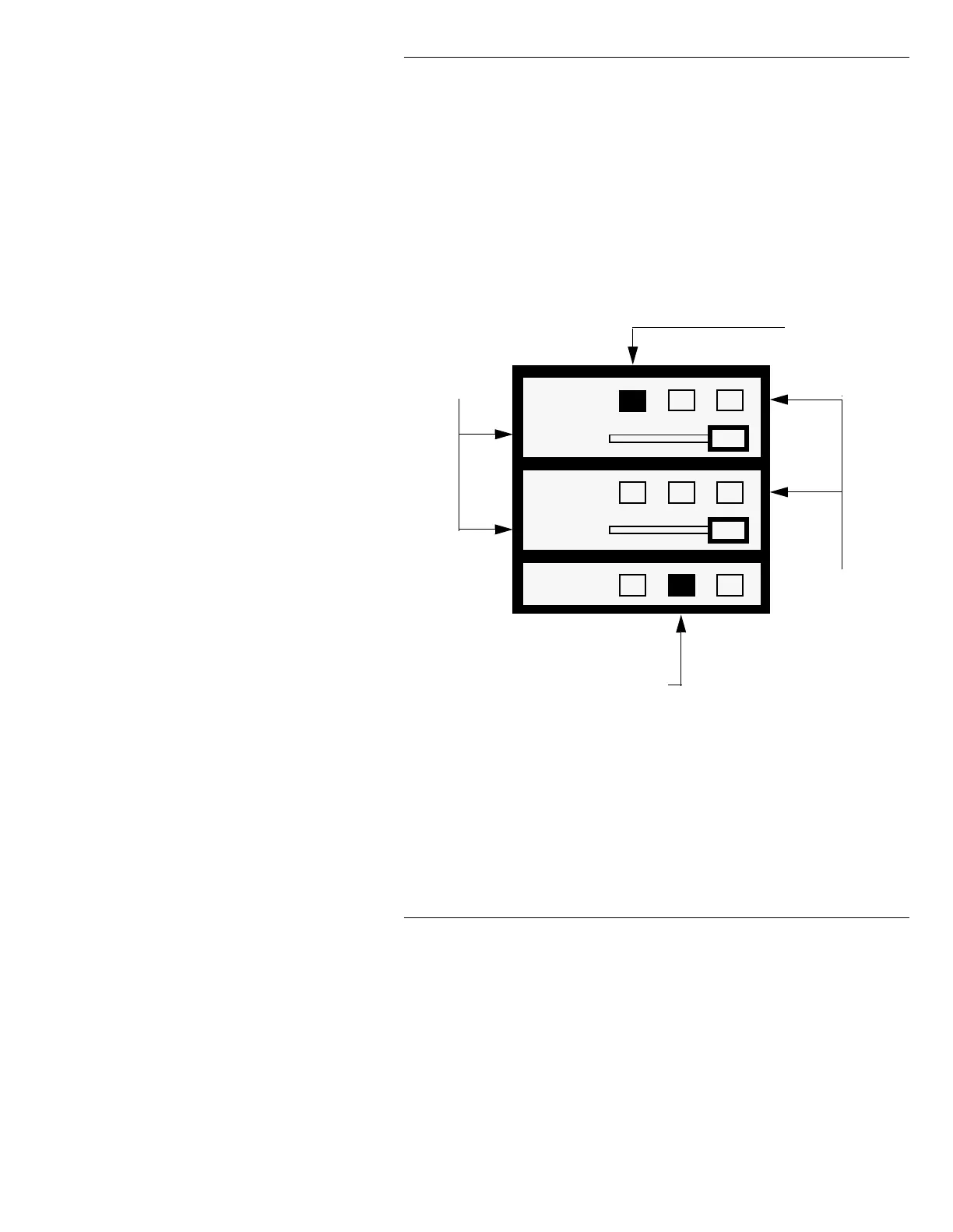

Figure 16-8. Mix Settings Window
Bkg Select Enabled
100
Chan A
Percent
Chan B
Percent
Backgrnd
Buffer 1 currently
assigned to
CHANNEL A/AIR
Buffer 2 currently assigned to PREVIEW.
PREVIEW outputs to the PREVIEW
CHANNEL, which feeds to Channel 2.
When Background Select is enabled,
PREVIEW is also mixed with the outputs
of CHANNELS A and B.
PREVIEW Output Percentage level is
always fixed at 100%.
Mix of CHANNELS
A and B outputs to
the AIR CHANNEL,
which feeds to
Channel 1
Output
Percentage
Level Sliders
(%) for
Channels A & B
1
1
2
2
3
3
3
100
See Section 14 for more information on signal flow.
100
1
2
To Next Page
