CHYRON Corporation
Installation 2-4 Revision D

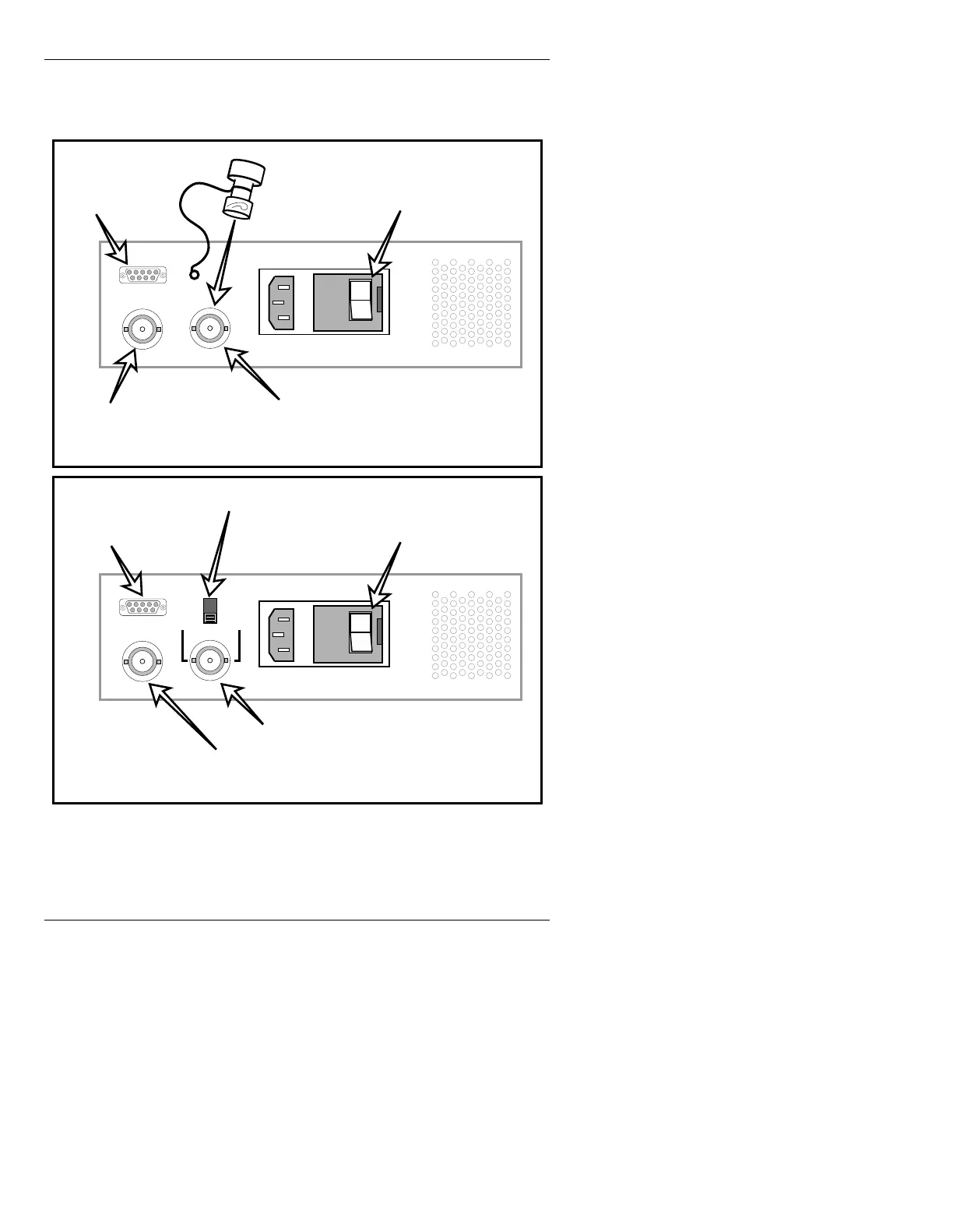

Figure 2-2. Keyboard Rear Panel (iNFiNiT!, MAX!>)
1
0
J2
OFF
ON
J3
T
E
R
M
J1
SEE BOTTOM FOR RATING LABEL
FUSE
3A SLO BLO
100 - 240 VAC
To CHYRON Chassis (or previous keyboard)
To next keyboard
Terminator ON for last
keyboard in chain, OFF for all others
To Mouse (optional)
1
0
Power Switch
J2
J3
J1
SEE BOTTOM FOR RATING LABEL
FUSE
3A SLO BLO
100 - 240 VAC
To CHYRON Chassis
(or previous keyboard)
To next keyboard (or attach ArcNet terminator)
Attach ArcNet Terminator on
last keyboard in chain!
To Mouse (optional)
93-Ohm
Current Keyboard
Earlier Keyboards
Power Switch
