of PE1. An MPLS tunnel connects PE1 and PE2 over the Ethernet pseudowire or the

Ethernet line (E-LINE).

This benchmarking test is used to compute the performance attributes in the

network-to-network interface (NNI) direction of an Ethernet pseudowire service between

Router A and Router B. The logical interface under test on Router A is the CE1 interface

with UNI as the direction, and the logical interface under test on Router B is the CE2

interface with NNI as the direction. Data traffic arriving from UNI towards NNI is ignored

while the test is in progress. Packets from NNI are not sent toward the customer edge

because all packets are assumed to be test frames. The CCC family and NNI direction

are configured on routers A and B.

Figure 72 on page 1368 shows the sample topology to perform an RFC 2544 test for the

NNI direction of an Ethernet pseudowire service.

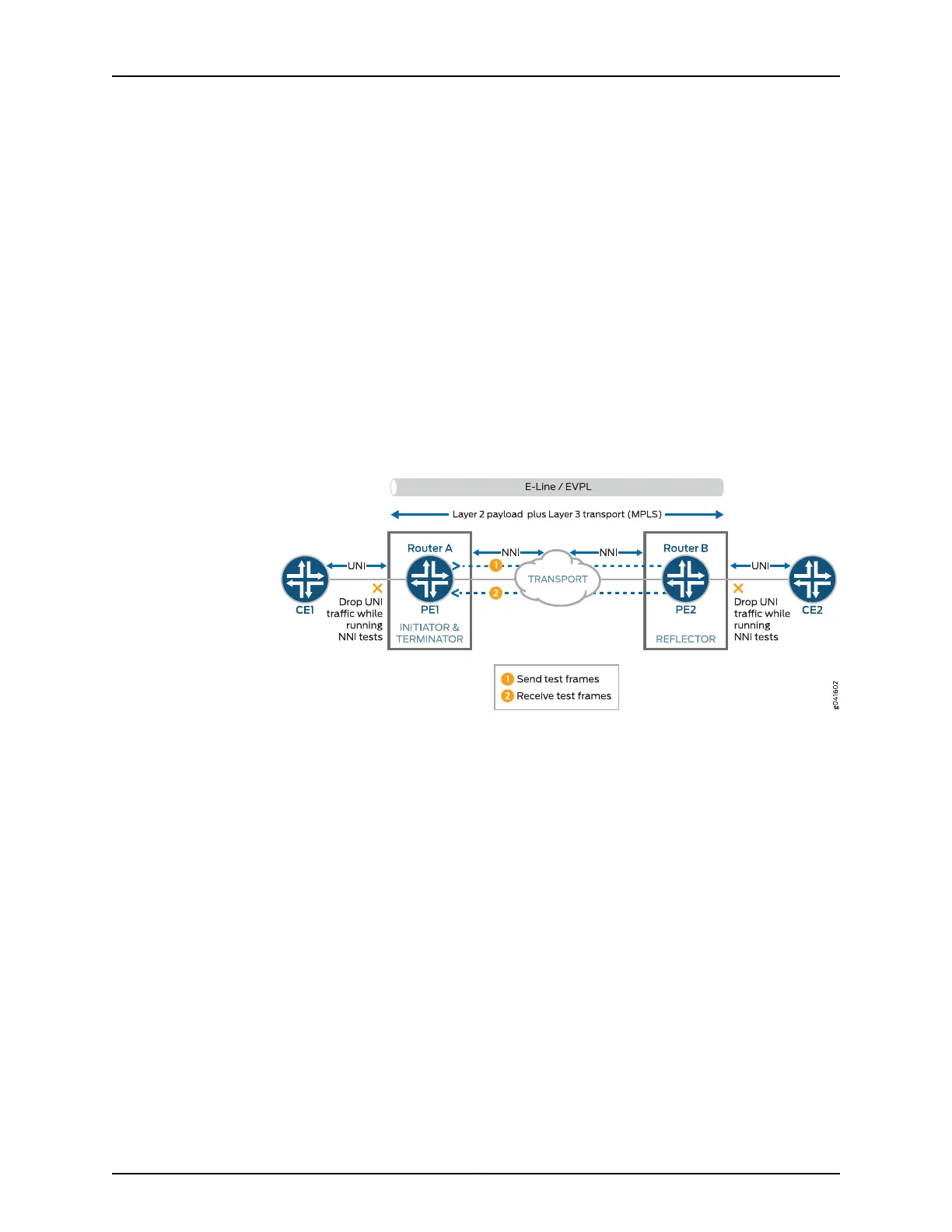

Figure 72: RFC 2544-Based Benchmarking Test for NNI Direction of an

Ethernet Pseudowire

Configuration

In this example, you configure the benchmarking test for the NNI direction of an Ethernet

pseudowire service that is enabled between two routers to detect and analyze the

performance of the interconnecting routers.

•

Configuring Benchmarking Test Parameters on Router B on page 1369

•

Configuring Benchmarking Test Parameters on Router B on page 1372

•

Results on page 1373

CLI Quick

Configuration

To quickly configure this example, copy the following commands, paste them in a text

file, remove any line breaks, change any details necessary to match your network

configuration, and then copy and paste the commands into the CLI at the [edit] hierarchy

level:

Configuring

Benchmarking Test

Parameters on Router
