Table 11: CLI Equivalents of Terms Used in Documentation for ACX2200 Routers (continued)
Additional
Information
Item in
Documentation
Value (as displayed
in the CLI)
Description (as
displayed in the CLI)
Hardware Item (as
displayed in the CLI)
ACX2200 Universal
Access Router Overview
Built-in uplink ports on
the front panel of the
router
PIC 04x 1GE (RJ-45)
ACX2200 Universal
Access Router Overview
Built-in uplink ports on
the front panel of the
router
PIC 1One of the following:
•
4x 1GE (RJ-45)
•
4x 1GE (SFP)
ACX2200 Universal
Access Router Overview
Built-in uplink ports on
the front panel of the
router
PIC 22x 1GE (SFP)
ACX2200 Universal
Access Router Overview
Built-in uplink ports on
the front panel of the
router
PIC 32x 10GE (SFP+)
Uplink Ports on
ACX2200 Routers
Optical transceiversn is a value equivalent
to the number of the
port in which the
transceiver is installed.
Abbreviated name of
the transceiver
Xcvr (n)
ACX2200 Power
Overview
DC power supplyValue of n is always 0.Built-in power supplyPower supply (n)
Cooling System and
Airflow in an ACX2200
Router
Fan–Fan
NOTE: ACX2200
routers are fanless
models.
Fan

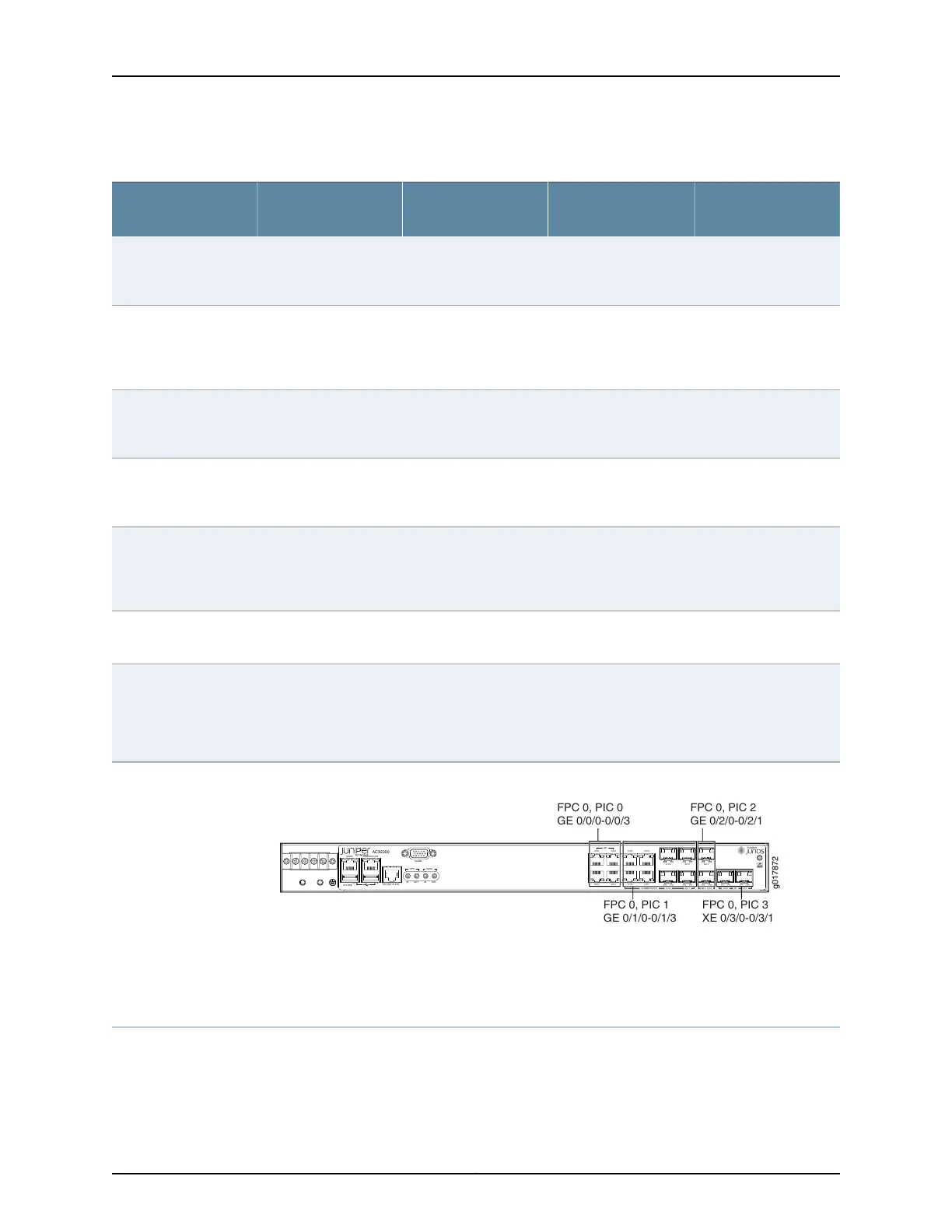

Figure 10: ACX2200 Interface Port Mapping
g017872
ACX2200
MGMT CONSOLE/AUX
SYS
0 1
EXT REF CLK IN
ALARM
OUTIN IN OUT
1PPS 10MHz
0/0/0
0/0/2
0/0/1 0/1/10/1/0
0/0/3 0/1/2
GE
0/1/3
COMBO PORTS XE
0/3/0
0/3/1GE
0/1/2 0/1/3 0/2/1
0/1/0 0/1/1
0/2/0
FPC 0, PIC 0
GE 0/0/0-0/0/3
FPC 0, PIC 2
GE 0/2/0-0/2/1
FPC 0, PIC 1
GE 0/1/0-0/1/3
FPC 0, PIC 3
XE 0/3/0-0/3/1
Related
Documentation
ACX2200 Universal Access Router Overview•
ACX4000 Routers Hardware and CLI Terminology Mapping
Table 12 on page 38 describes the hardware terms used in ACX4000 router documentation
and the corresponding terms used in the Junos OS command line interface (CLI).
Figure 11 on page 39 shows the port locations of the interfaces.
37Copyright © 2017, Juniper Networks, Inc.
Chapter 1: ACX Series Universal Access Router Overview
