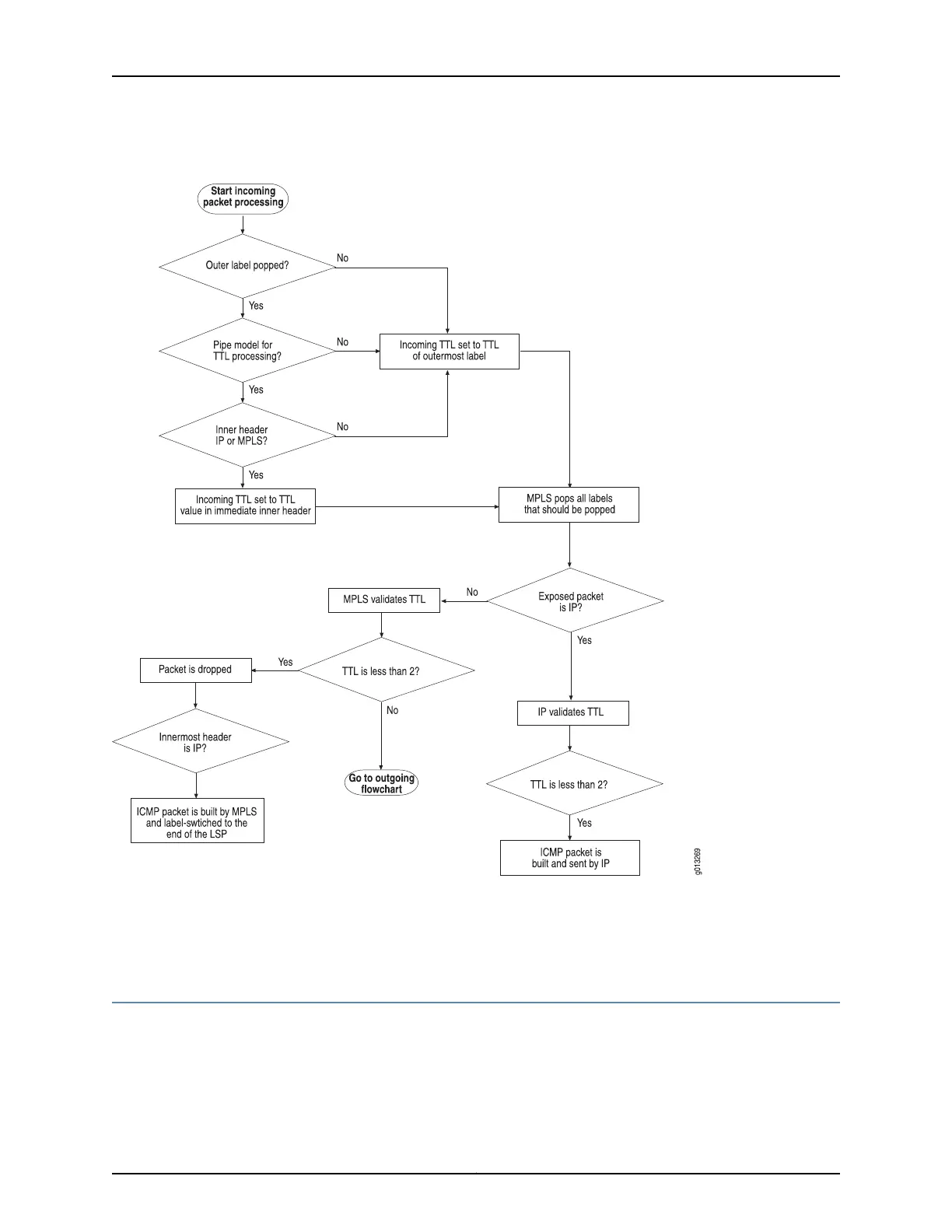

Figure 30: TTL Processing on Incoming MPLS Packets

Documentation

Disabling Normal TTL Decrementing•

• no-propagate-ttl

Pseudowire Overview for ACX Series Universal Access Routers

A pseudowire is a Layer 2 circuit or service, which emulates the essential attributes of a

telecommunications service— such as a T1 line, over an MPLS packet-switched network.

The pseudowire is intended to provide only the minimum necessary functionality to

emulate the wire with the required degree of faithfulness for the given service definition.
