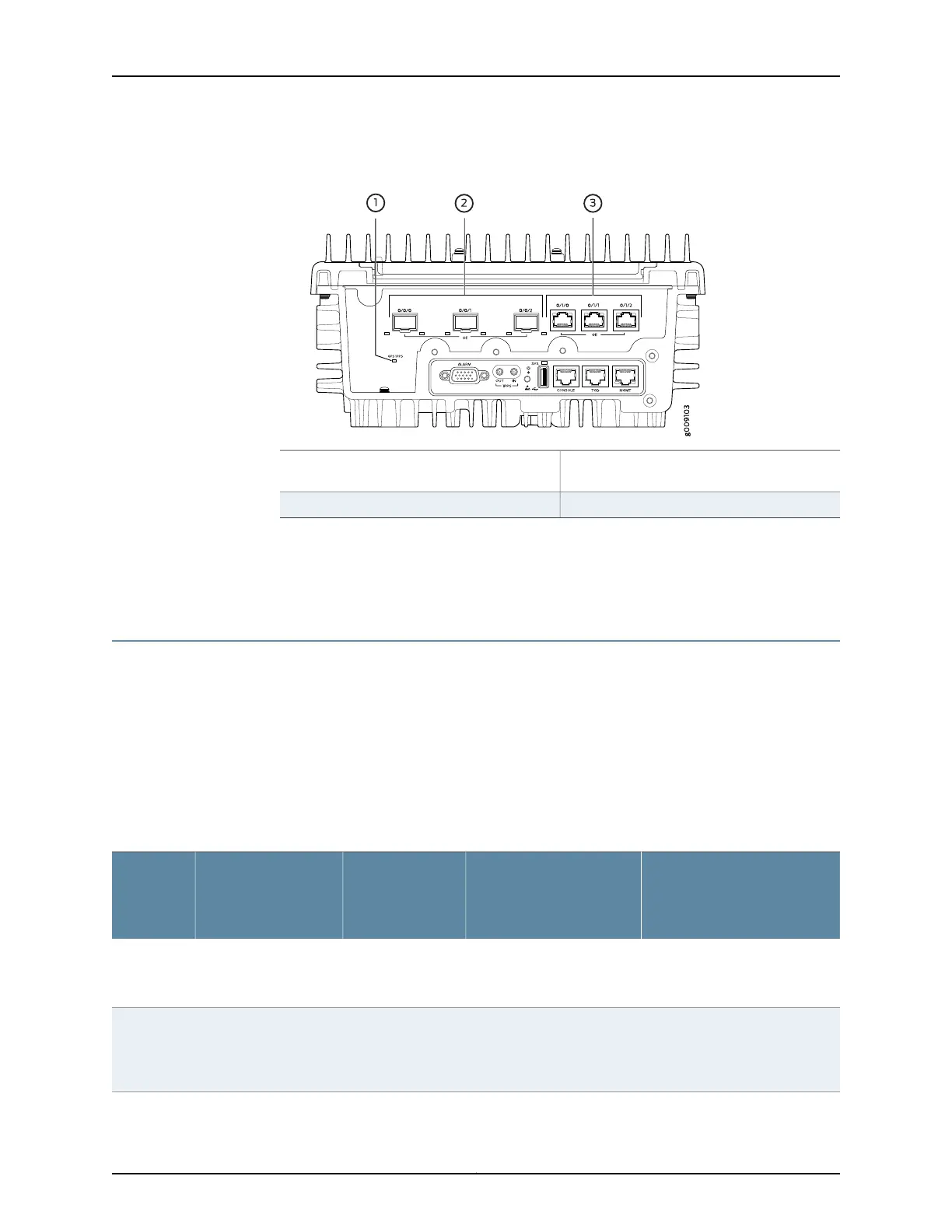

Figure 5: ACX500 Outdoor Router Interface Port Mapping
3—1—
FPC 0, PIC 1: 0/1/0–0/1/2 (3x1GE RJ-45
with PoE+ support)
GPS LED
2—
FPC 0, PIC 0: 0/0/0–0/0/2 (3x1GE SFP)
Related
Documentation
ACX500 Universal Access Router Overview•
• ACX500 Router Models
ACX1000 and ACX1100 Routers Hardware and CLI Terminology Mapping
•
ACX1000 and ACX1100 Routers Hardware and CLI Terminology Mapping on page 30
•
ACX1100 Routers Hardware and CLI Terminology Mapping on page 31
ACX1000 and ACX1100 Routers Hardware and CLI Terminology Mapping
Table 7 on page 30 describes the hardware terms used in ACX1000 router documentation
and the corresponding terms used in the Junos OS command line interface (CLI).
Figure 6 on page 31 shows the port locations of the interfaces.
Table 7: CLI Equivalents of Terms Used in Documentation for ACX1000 Router
Additional InformationItem in Documentation
Value (as
displayed in the
CLI)
Description (as
displayed in the CLI)
Hardware
Item (as
displayed
in the CLI)
Chassis Physical Specifications
for ACX1000 and ACX1100
Routers
Router chassis–ACX1000Chassis
Interface Naming Conventions
Used in the Junos OS Operational
Commands
The router does not have
actual FPCs. In this case,
FPC refers to the router
itself.
Value of n is
always 0.
Abbreviated name of
the Flexible PIC
Concentrator (FPC)
FPC (n)
Copyright © 2017, Juniper Networks, Inc.30
ACX Series Universal Access Router Configuration Guide
