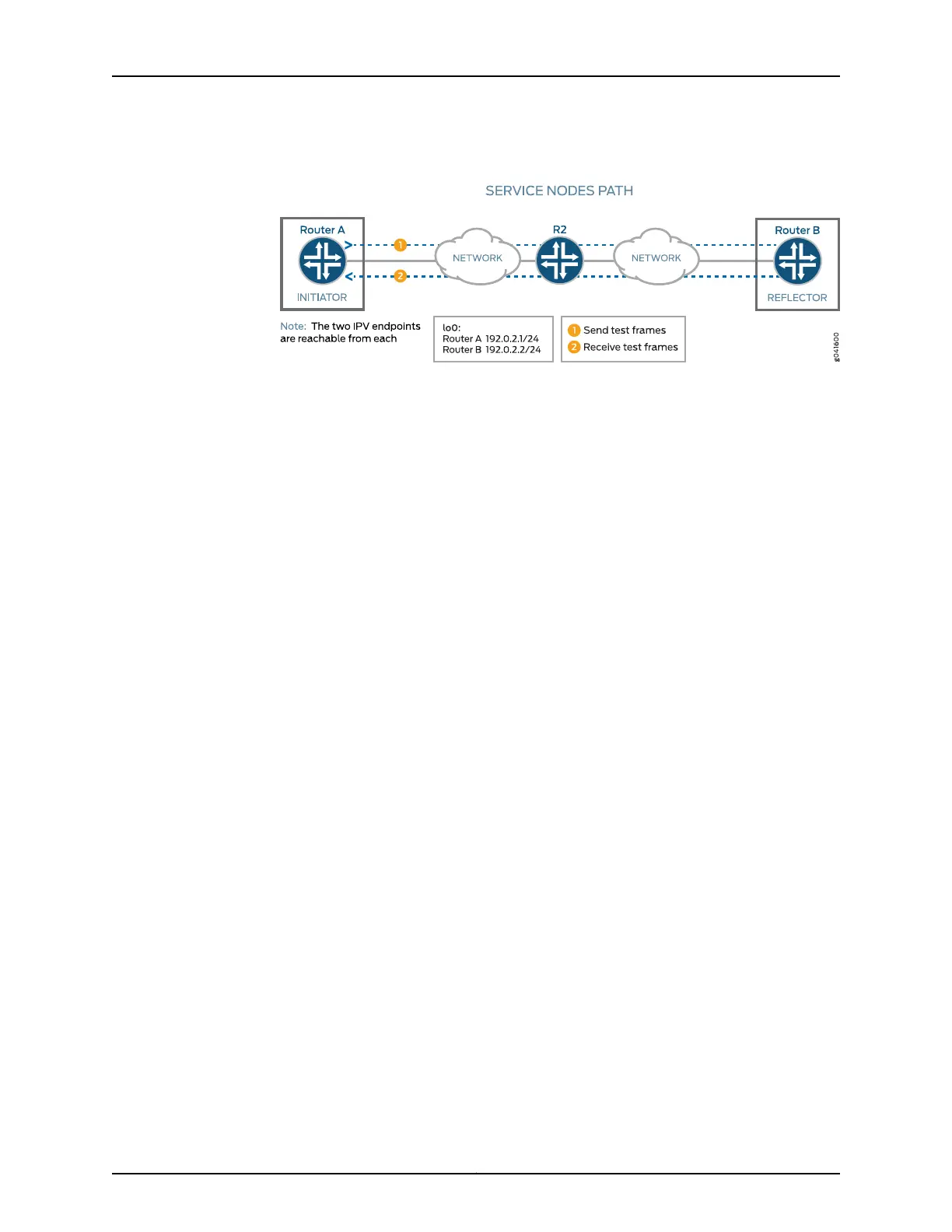

Figure 71: RFC 2544-Based Benchmarking Test for a Layer 3 IPv4 Service
Configuration
In this example, you configure the benchmarking test for a Layer 3 IPv4 service that is
between interface ge-0/0/0 on Router A and interface ge-0/0/4 on Router B to detect
and analyze the performance of the interconnecting routers. You need not configure a
test profile on Router B because it operates as a reflector.
•
Configuring Benchmarking Test Parameters on Router A on page 1361
•
Configuring Benchmarking Test Parameters on Router B on page 1363
•
Results on page 1365
CLI Quick
Configuration
To quickly configure this example, copy the following commands, paste them in a text
file, remove any line breaks, change any details necessary to match your network
configuration, and then copy and paste the commands into the CLI at the [edit] hierarchy
level:
Configuring
Benchmarking Test
Parameters on Router
A
set interfaces ge-0/0/0 unit 0 family inet address 200.0.0.1/24
set rfc2544-benchmarking profiles test-profile throughput test-type throughput
set rfc2544-benchmarking profiles test-profile throughput packet-size 64
set rfc2544-benchmarking profiles test-profile throughput test-duration 20m
set rfc2544-benchmarking profiles test-profile throughput bandwidth-kbps 500
set rfc2544-benchmarking tests test-name test1 test-profile throughput
set rfc2544-benchmarking tests test-name test1 interface ge-0/0/0.1
set rfc2544-benchmarking tests test-name test1 mode initiate-and-terminate
set rfc2544-benchmarking tests test-name test1 family inet
set rfc2544-benchmarking tests test-name test1 dest-address 200.0.0.2
set rfc2544-benchmarking tests test-name test1 udp-port 4001
Configuring
Benchmarking Test
Parameters on Router
B
set interfaces ge-0/0/4 unit 0 family inet address 200.0.0.2/24
set services rpm rfc2544-benchmarking tests test-name test1 interface ge-0/0/4.1
Copyright © 2017, Juniper Networks, Inc.1360
ACX Series Universal Access Router Configuration Guide
