Table 5: CLI Equivalents of Terms Used in Documentation for ACX500 Outdoor
Routers (continued)
Additional InformationItem in Documentation
Value (as
Displayed in the
CLI)
Description (as
Displayed in the CLI)
Hardware
Item (as
Displayed
in the CLI)
Uplink Ports on ACX500
Routers
Optical transceiversn is a value
equivalent to the
number of the port
in which the
transceiver is
installed.
Abbreviated name of
the transceiver
Xcvr (n)
ACX500 Power OverviewDC power supplyValue of n is always
0.
Built-in power supplyPower
supply (n)
Cooling System and Airflow in
ACX500 Routers
Fan–Fan
NOTE: ACX500 routers
are fanless.
Fan

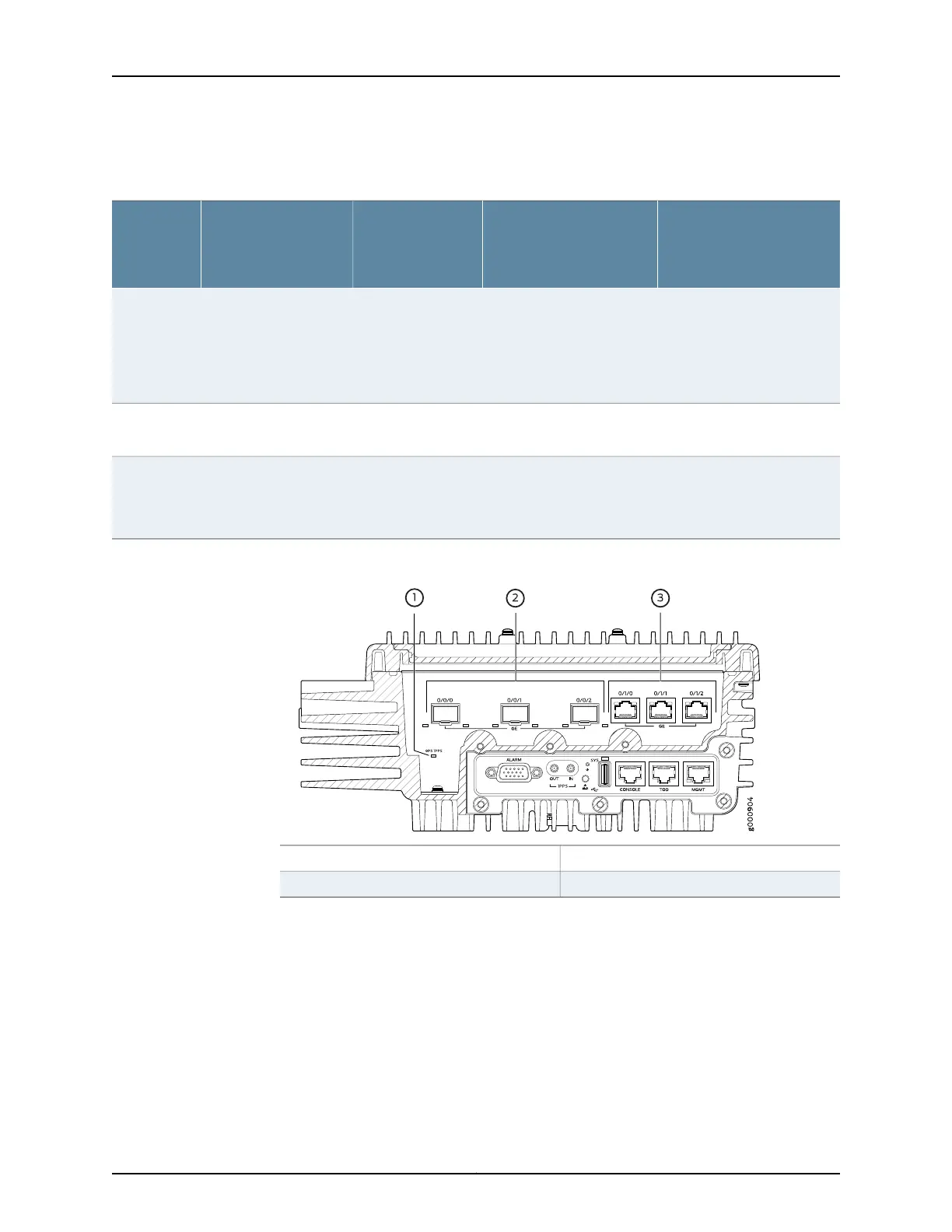

Figure 4: ACX500 Outdoor Router Interface Port Mapping
3—1—
FPC 0, PIC 1: 0/1/0–0/1/2 (3x1GE RJ-45)
GPS LED
2—
FPC 0, PIC 0: 0/0/0–0/0/2 (3x1GE SFP)
ACX500 Outdoor Routers with PoE Hardware and CLI Terminology Mapping
Table 6 on page 29 describes the hardware terms used in ACX500 outdoor router with
PoE documentation and the corresponding terms used in the Junos OS CLI.
Figure 5 on page 30 shows the port locations of the interfaces.
