2.19 QUEStionable Status Register

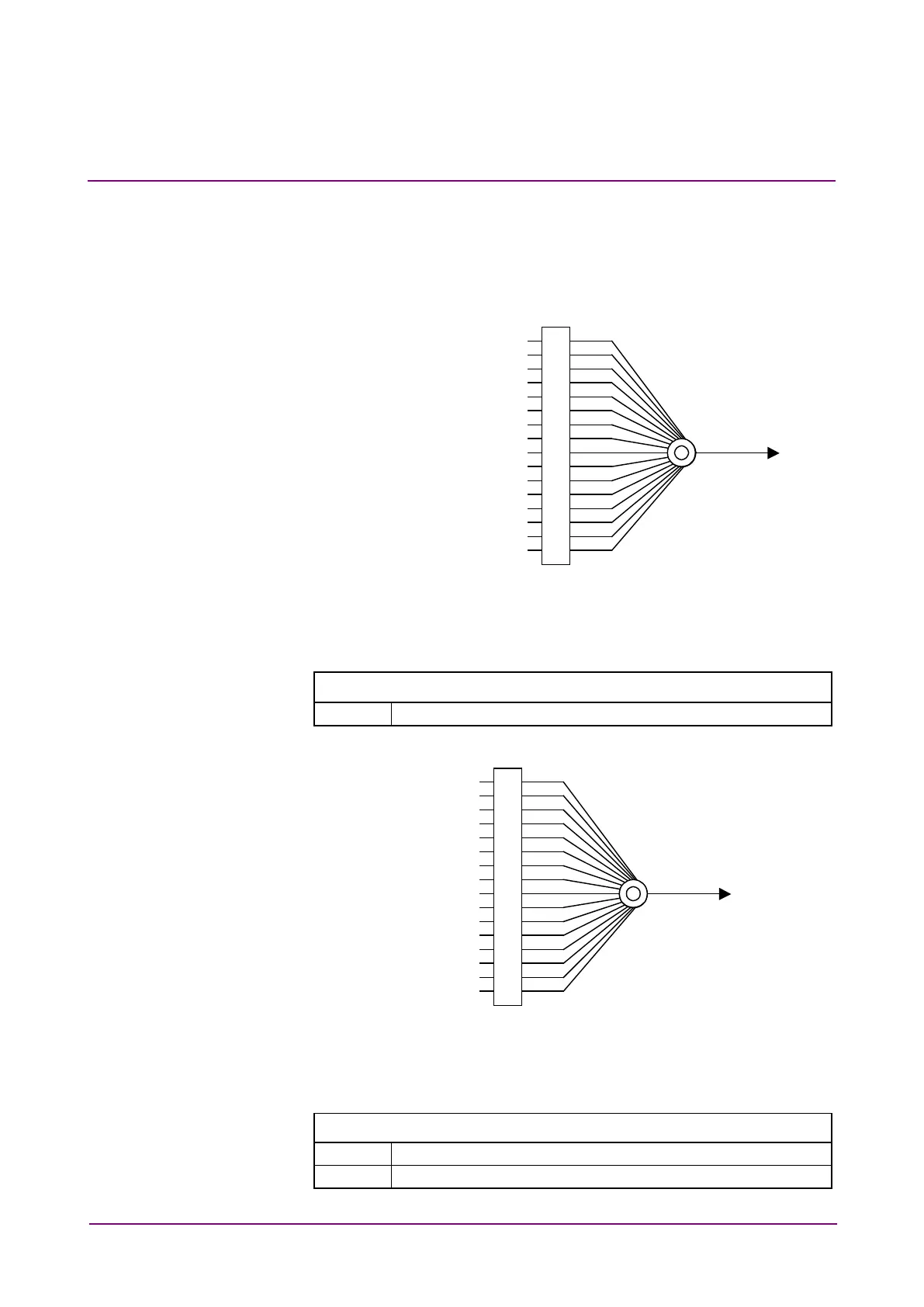

The figure below shows the layer structure of the QUEStionable status
register.
VOLTage (NOT USED)
DB0
CURRent (NOT USED)
DB1
TIME (NOT USED)
DB2
POWer (NOT USED)
DB3
TEMPerature (NOT USED)
DB4
FREQuency (NOT USED)
DB5
PHASe (NOT USED)
DB6
MODulati
on (NOT USED)
DB7
CALibration (NOT USED)
DB8
MEASure
DB9
NOT USED
DB10
NOT USED
DB11
NOT USED
DB12
INSTrument (NOT USED)
DB13
Command Warning (NOT USED)
DB14
NOT USED
DB15
Status Byte Register DB3
Figure 2.19-1 QUEStionable Status Register
Table 2.19-1 QUEStionable Status Register
Byte definition of QUEStionable Status Register
DB9
QUEStionable Measure Register overview
NOT USED
DB0
NOT USED
DB1
NOT USED
DB2
Uncal
DB3
NOT USED
DB4
Level Over
DB5
NOT USED
DB6
NOT USED
DB7
NOT USED
DB8
NOT USED
DB9
NOT USED
DB10
NOT USED
DB11
NOT USED
DB12
NOT USED
DB13
NOT USED
DB14
NOT USED
DB15
Questionable Status Register DB9
Figure 2.19-2 QUEStionable Measure Register
Table 2.19-2 QUEStionable Measure Register
Byte definition of QUEStionable Measure Register
DB3
Displays the generation of Uncal status.
DB5
Displays the generation of level over.
