2.20 OPERation Status Register
2-977
2
SCPI Device Message Details
2.20 OPERation Status Register
The figure below shows the layer structure of the OPERation Status
Register.
CALibrating
DB0
SETTling
DB1
RANGing (NOT USED)
DB2
SWEeping
DB3
MEASuring（NOT USED）
DB4
Wainting for TRIG
DB5
Waiting for ARM (NOT USED)
DB6
CORRecting (NOT USED)
DB7
FILE Operating
DB8
NOT USED
DB9
NOT USED
DB10
NOT USED
DB11
NOT USED
DB12
INSTrument (NOT USED)
DB13
PROGram (NOT USED)
DB14
NOT USED
DB15
Status Byte Register DB7

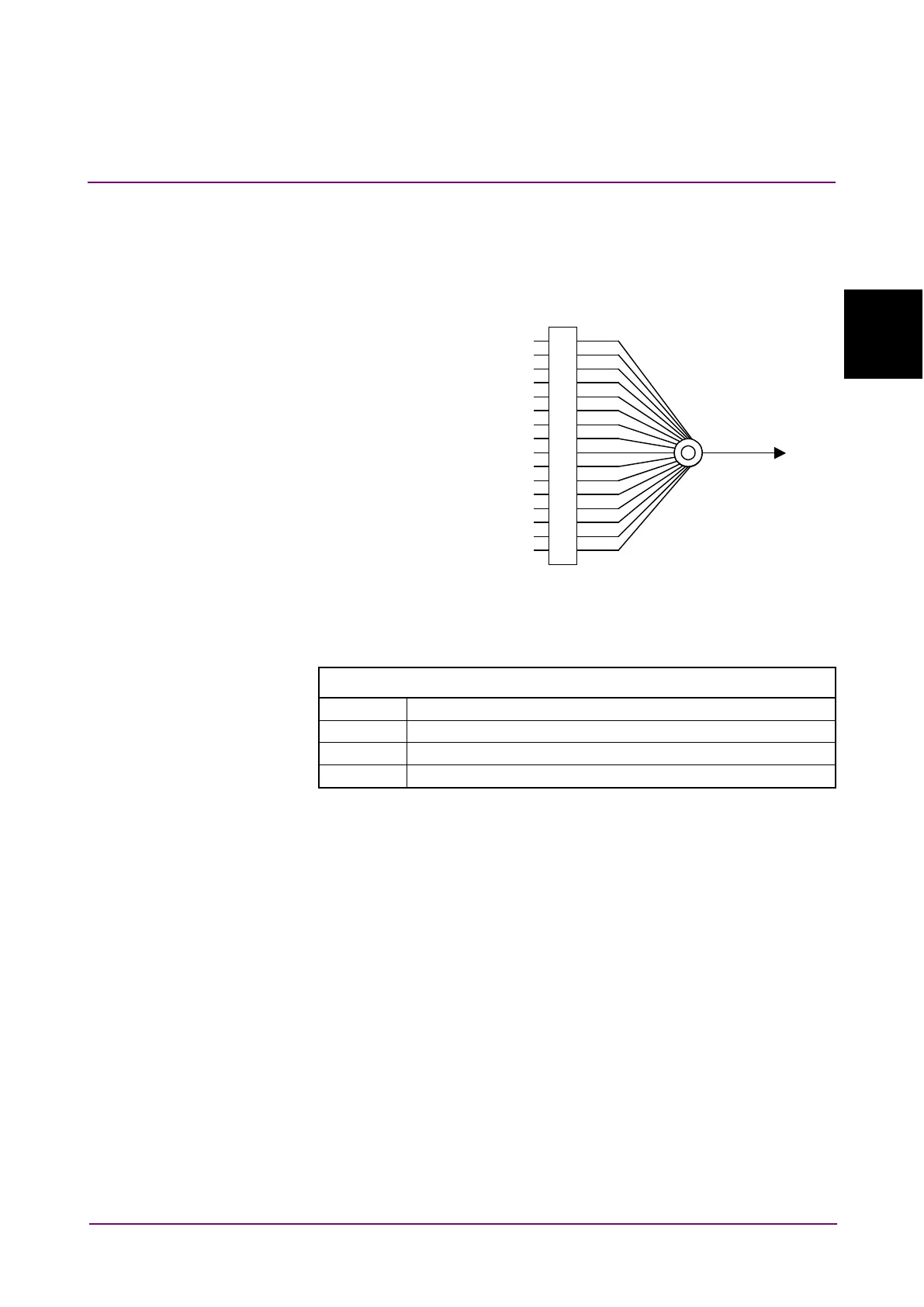

Figure 2.20-1 OPERation Status Register
Table 2.20-1 OPERation Status Register
Byte definition of OPERation Status Register
DB0
CAL is being executed.
DB1
Warm Up Message is being displayed.
DB3
Sweeping
DB5
Waiting for trigger.
