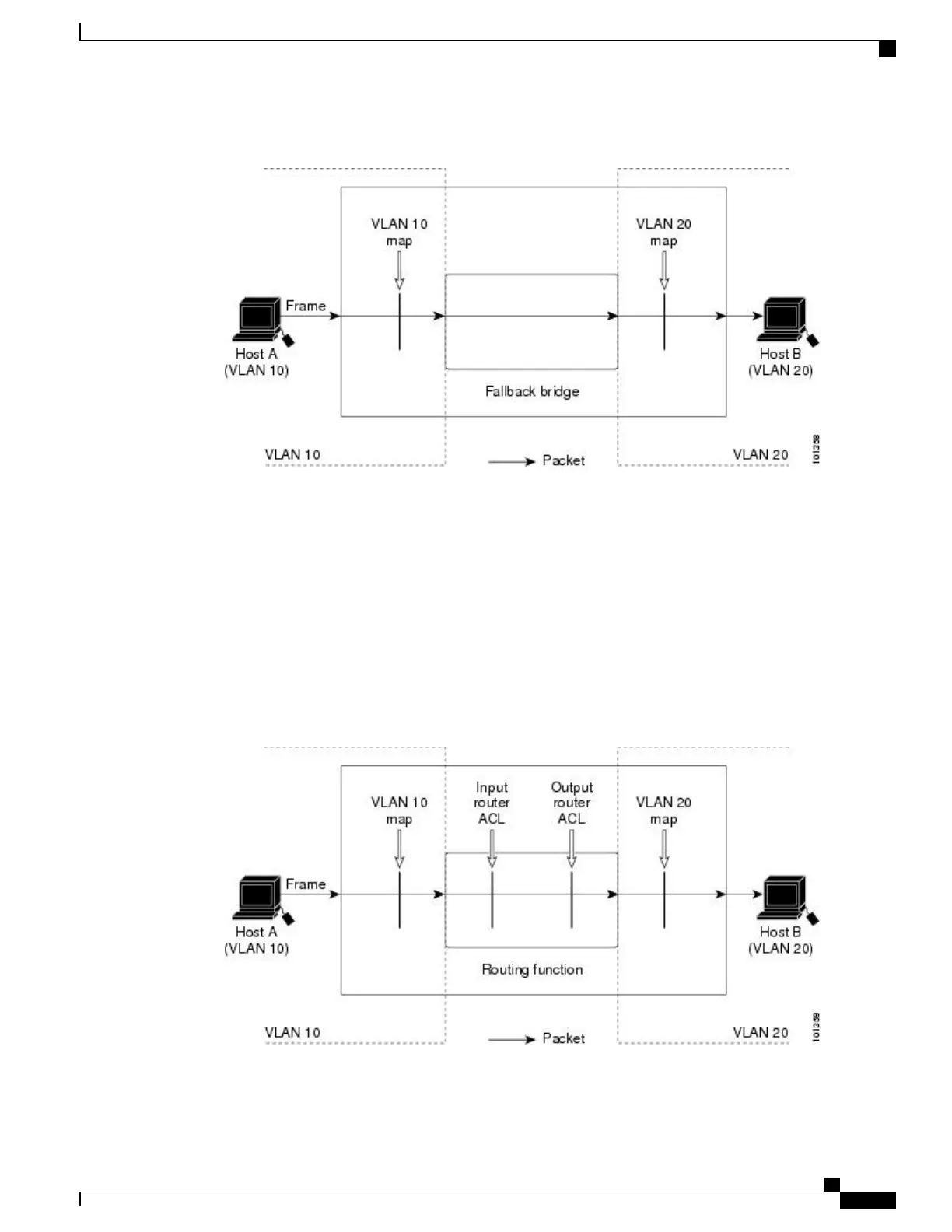

Figure 83: Applying ACLs on Bridged Packets
Example: ACLs and Routed Packets
This example shows how ACLs are applied on routed packets. The ACLs are applied in this order:
1
VLAN map for input VLAN
2
Input router ACL
3
Output router ACL
4
VLAN map for output VLAN
Figure 84: Applying ACLs on Routed Packets
Consolidated Platform Configuration Guide, Cisco IOS Release 15.2(4)E (Catalyst 2960-X Switches)
1263
Configuration Examples of Router ACLs and VLAN Maps Applied to VLANs
