Queueing and Scheduling on Egress Queues
The following figure shows queueing and scheduling flowcharts for egress ports on the switch.

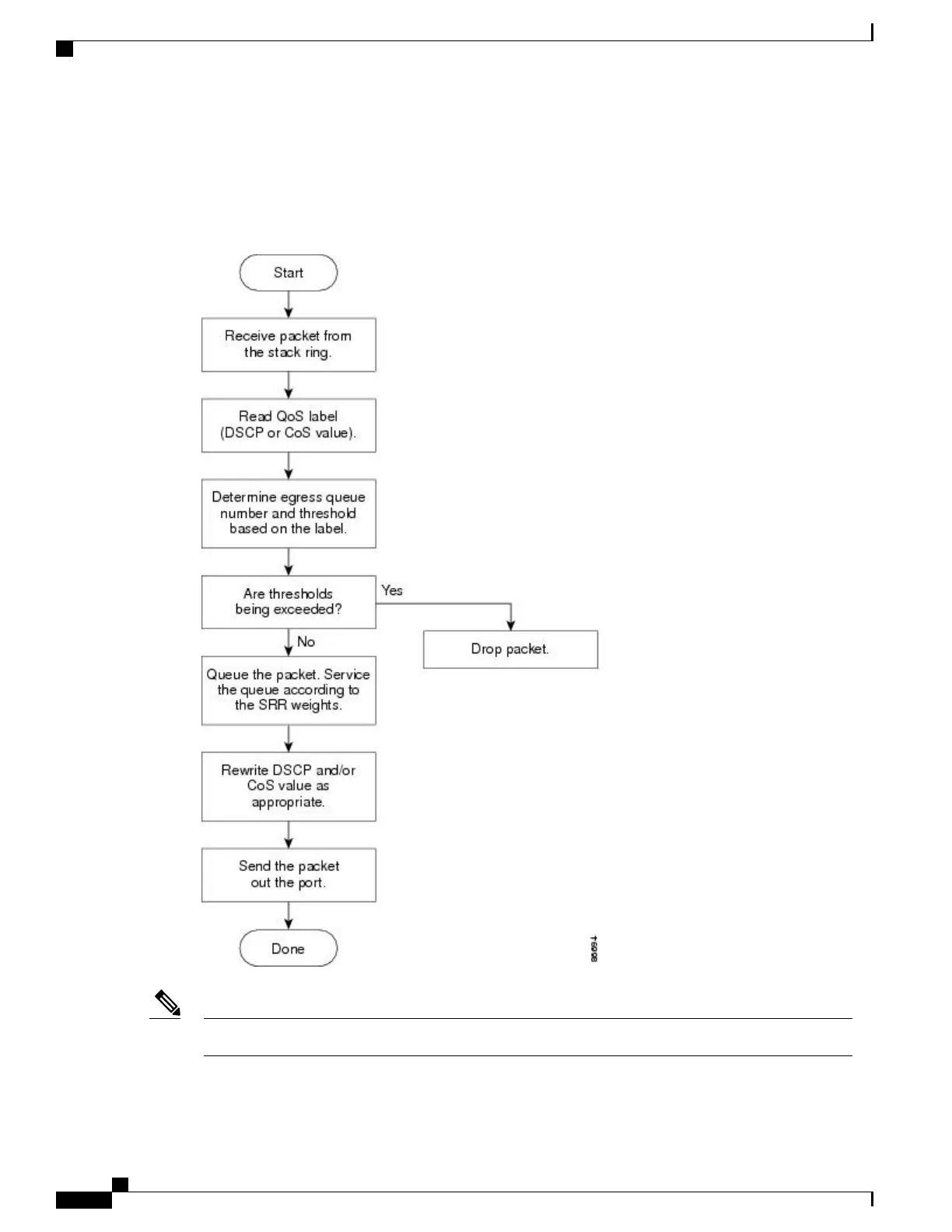

Figure 60: Queueing and Scheduling Flowchart for Egress Ports on the Switch
If the expedite queue is enabled, SRR services it until it is empty before servicing the other three queues.Note
Consolidated Platform Configuration Guide, Cisco IOS Release 15.2(4)E (Catalyst 2960-X Switches)
560
Information About QoS
