Chapter 39: Additional Classifier Support

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

Operation

In such an application the gateway controller communicates with the VoIP network elements. These might include a

Session Initiated Protocol (SIP) Application Server and a Session Border Controller (SBC). See figure below:

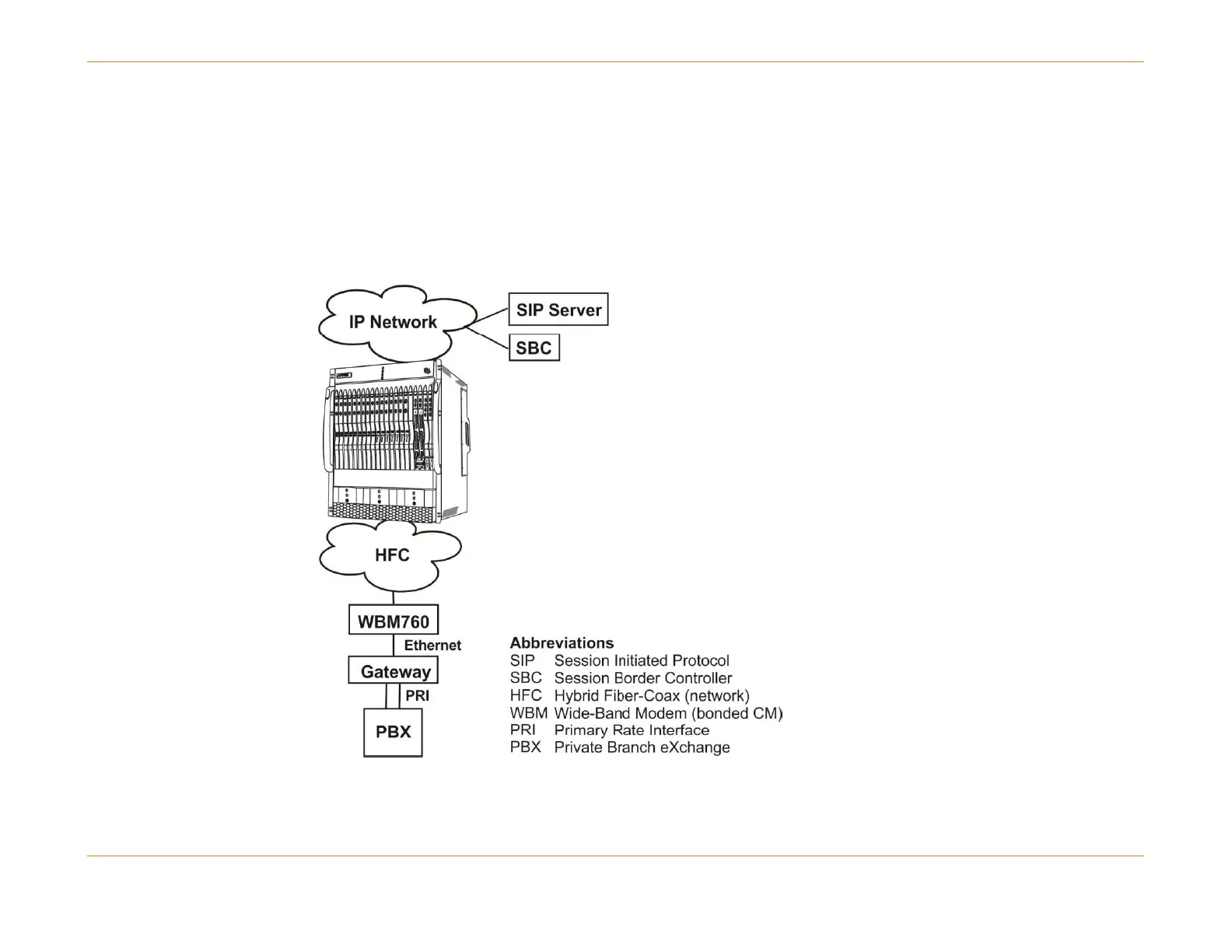

Figure 105: Example of a Network Diagram for Additional Classifier Telephony
