Chapter 5: C4c CMTS Installation Requirements

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

 To lift the chassis: use two people (one on each side). With one hand grasp the underside of the chassis front at the

recess and with the other hand grasp a back handle and lift slowly. Do not twist your body as you lift.

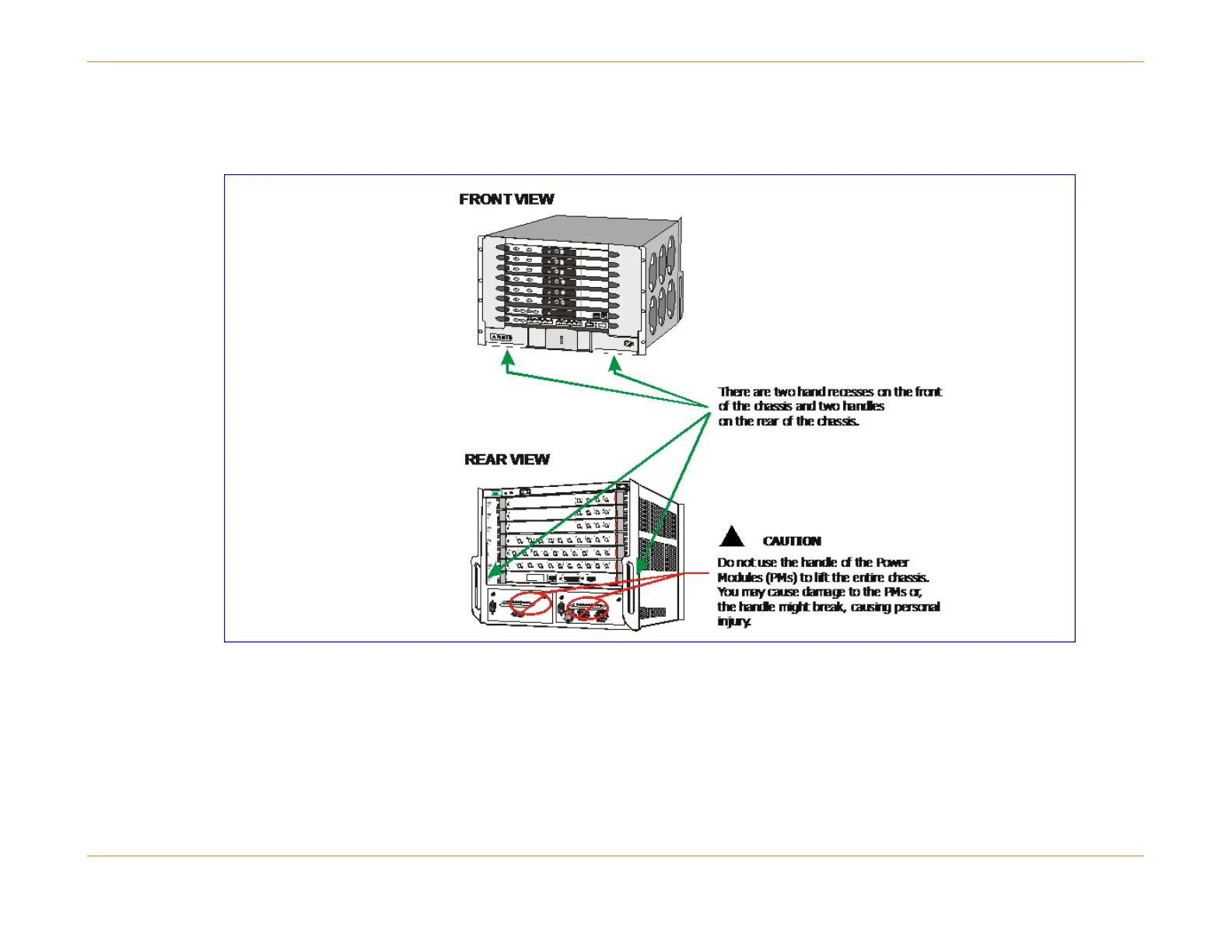

Figure 23: C4c CMTS Chassis Handles

 Keep your back straight and lift with your legs, not your back. If you must bend down to lift the chassis, bend at the

knees, not at the waist, to reduce the strain on your lower back muscles.

Electrical Equipment Guidelines

Follow these basic guidelines when working with any electrical equipment:
