Chapter 5: C4c CMTS Installation Requirements

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

Air Filter

The C4c CMTS comes equipped with an air filter mounted on the inside of the Fan Tray Module. It is important to change

the fan filter at least every three months, depending on the air quality on site. The figure below shows where the air filter

is located and how it is removed for replacement.

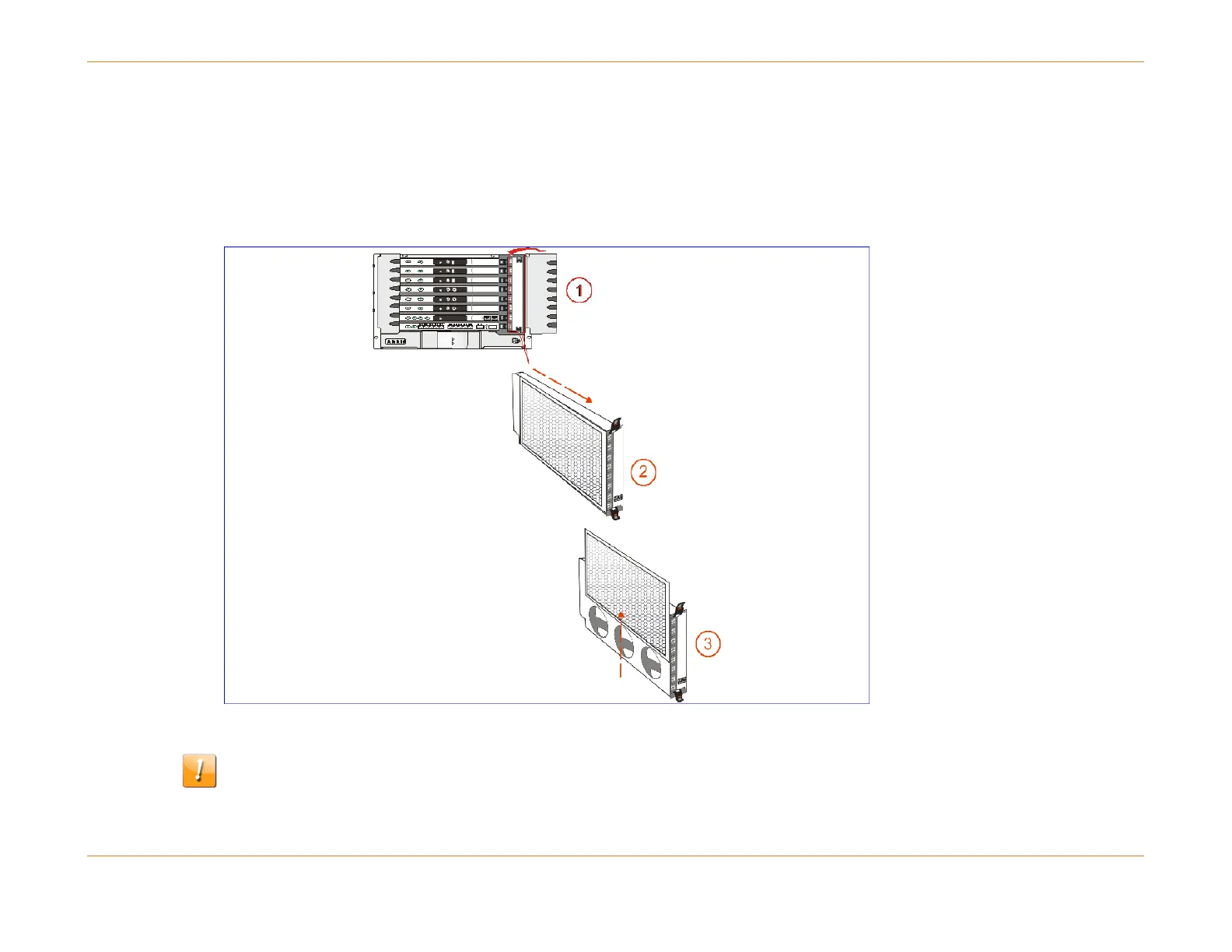

Figure 32: Replacing the Air Filter

CAUTION: Dirty air filters cannot be cleaned and reused.
