Arris C4C - C4 CMTS Front Access Panels

To Next Page

To Previous Page

Chapter 4: C4 CMTS General Installation Requirements

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

 Another small panel is found beneath the lower matching panel. The chassis slot numbers are printed on it; it flips

down to allow access to the air filter.

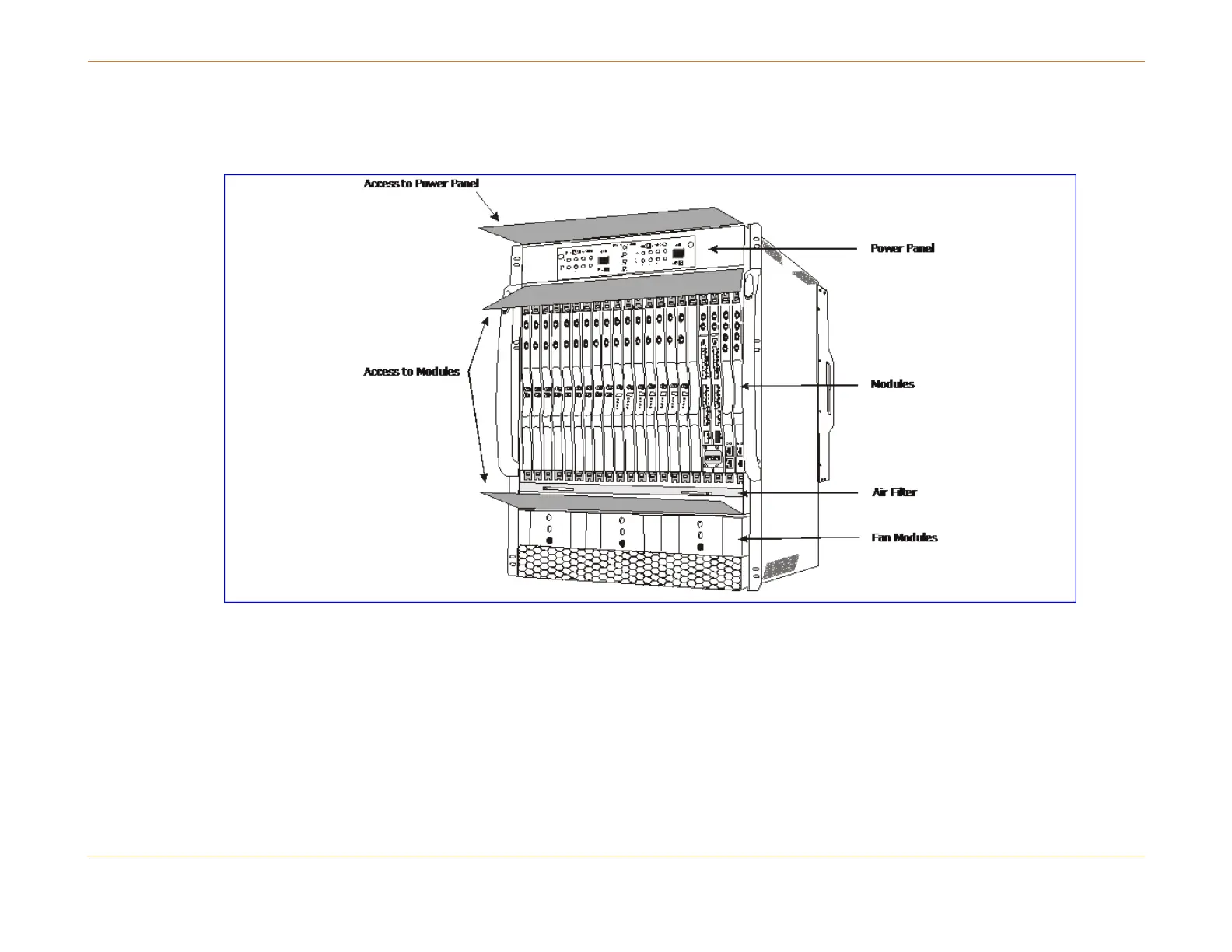

Figure 16: C4 CMTS Front Access Panels
