Arris C4C - Example of 24 U and XD Spare Groups (Front View)

To Next Page

To Previous Page

Chapter 13: CAM Sparing

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

The Odd and Even upstream CAM PICs are functionally identical but their connectors are offset to make cabling easier. The

upstream and downstream sparing PICs are not interchangeable.

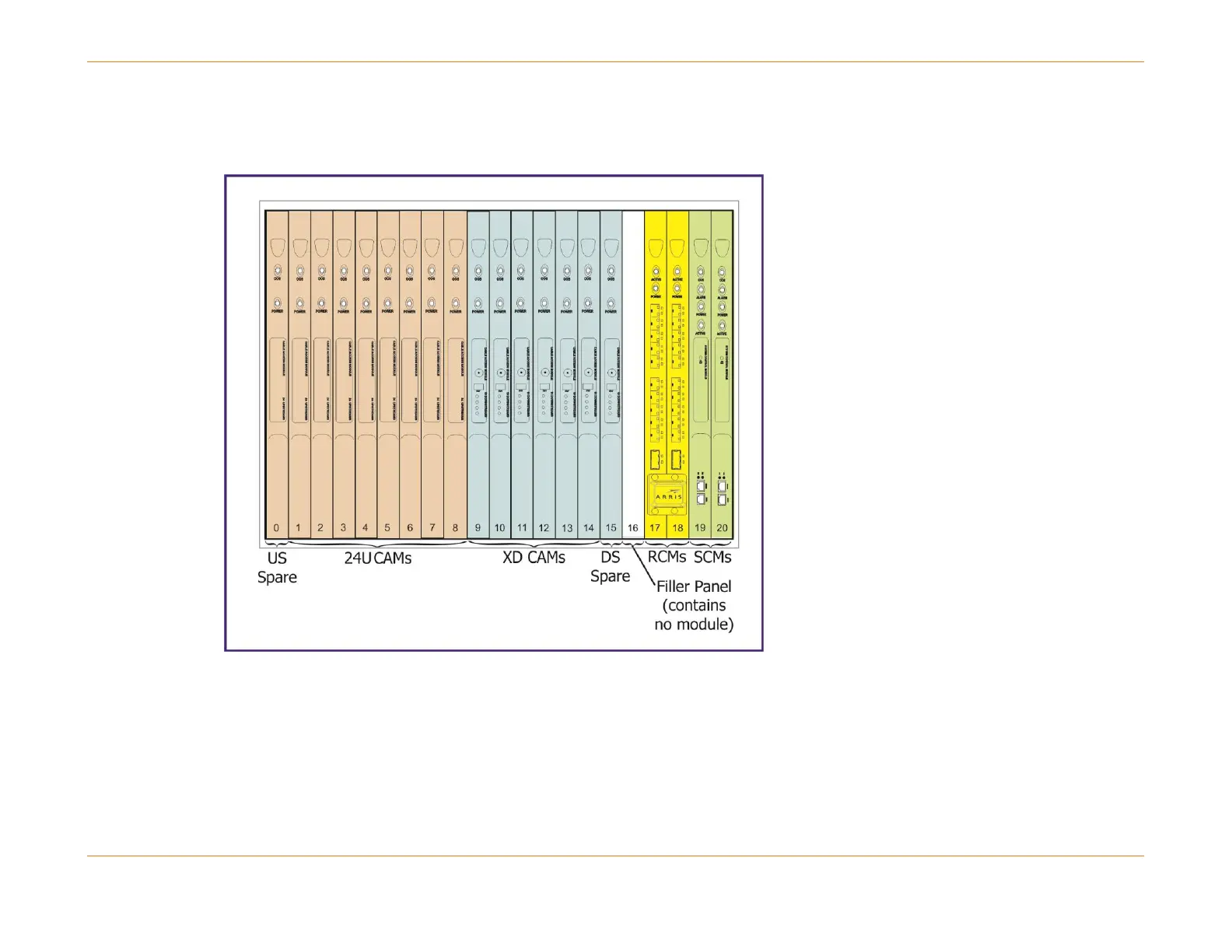

Figure 75: Example of 24U and XD Spare groups (front view)
