Chapter 24: IP Video

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

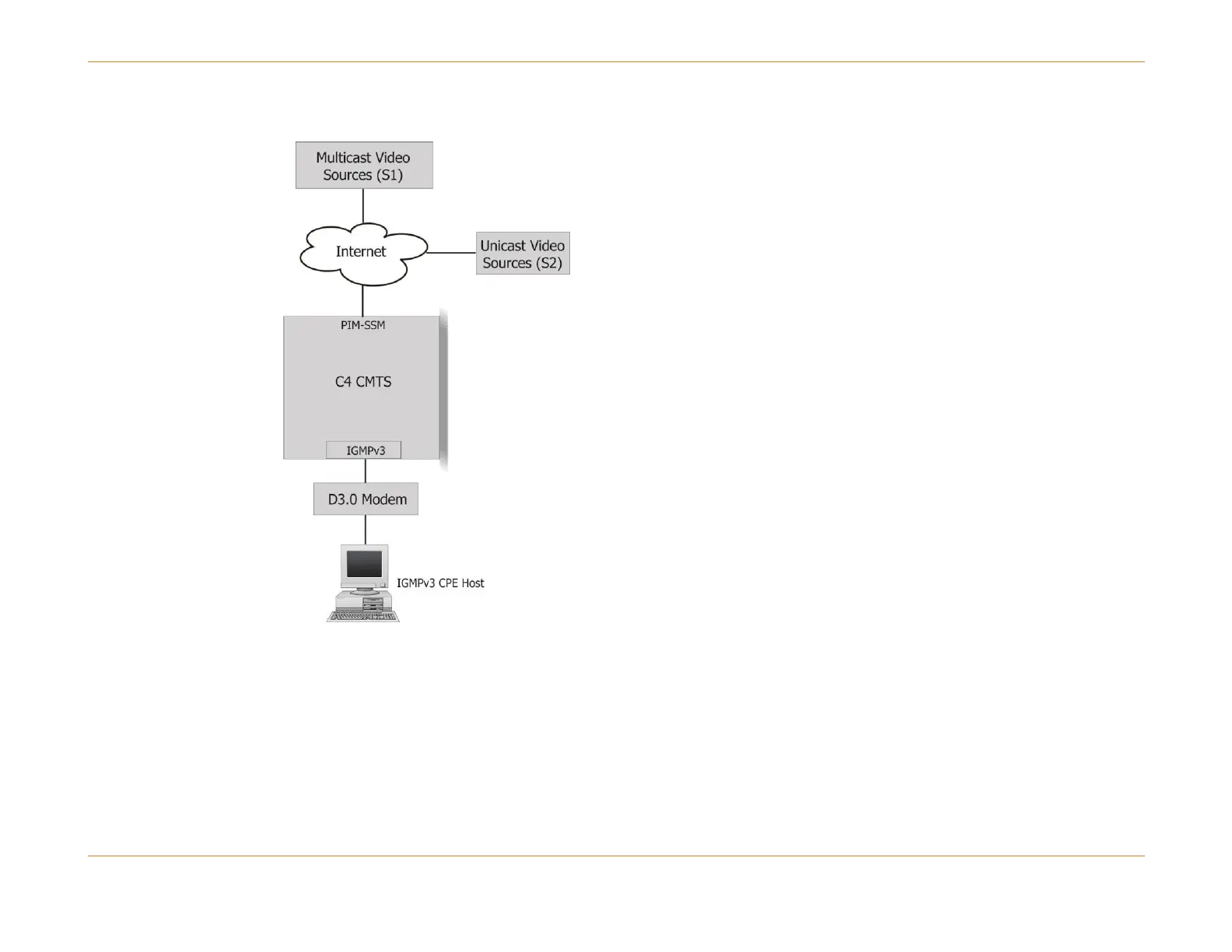

Figure 96: SSM Architecture

SSM Components

The SSM architecture consists of several components, including:

 PIM-SSM on the network side

 PIM-SSM on the cable side as passive

 Or alternatively to PIM-SSM, Proxy IGMPv3 joins received on the cable side to the network side
