Arris C4C - Example of Classification for Combined Voice, Video, and Data

Chapter 27: Converged Services (Voice and Data)
STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide
© 2016 ARRIS Enterprises LLC. All Rights Reserved. 809
The following diagram shows one possible classification scheme to set up flows with the parameters recommended above.
Note that the voice flows would be set up dynamically and the data and signaling flows would be set up via a modem
configuration file.

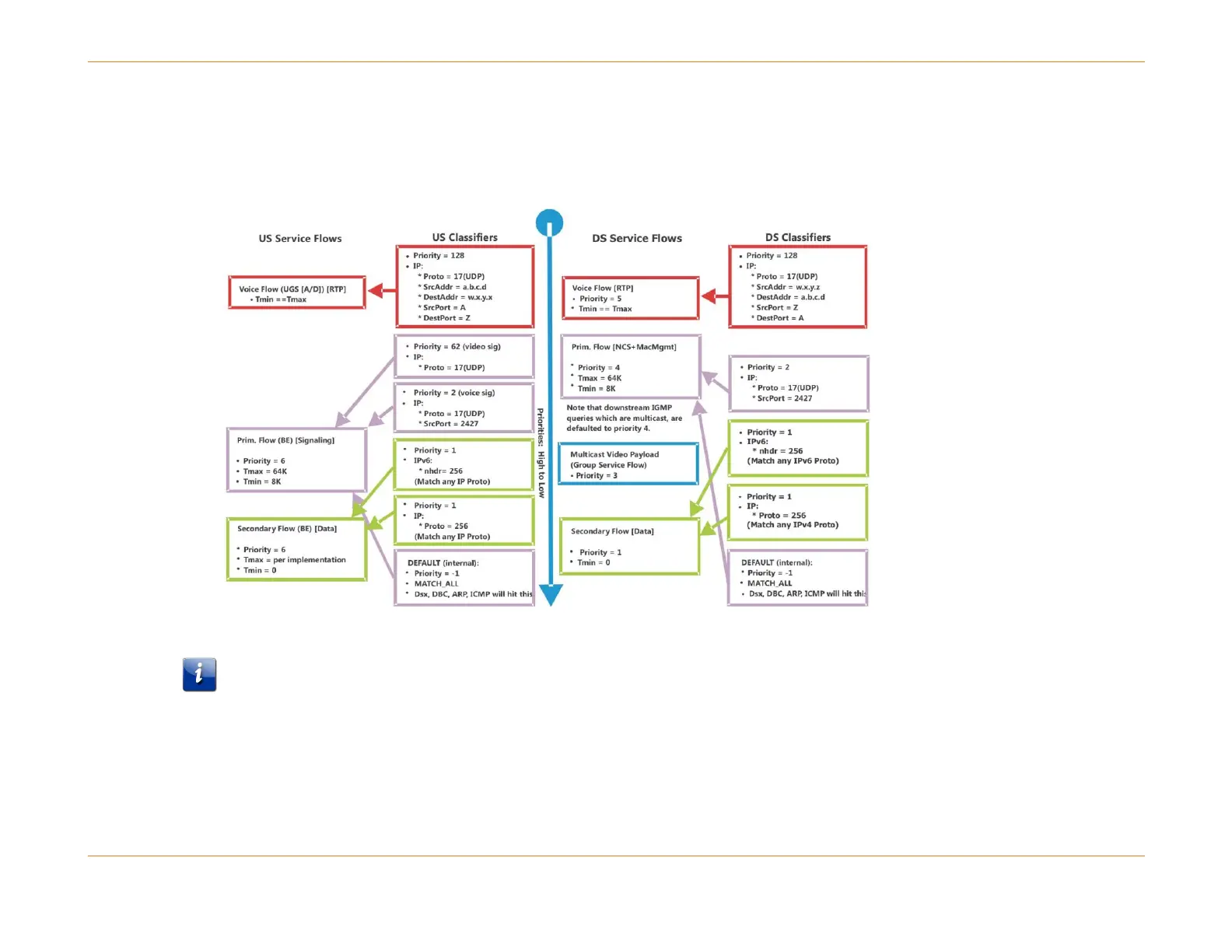

Figure 97: Example of Classification for Combined Voice, Video, and Data
Note: Port 2427 is an example of a commonly used port for Network-based Call Signaling (NCS). The Multimedia Terminal
Adapter (MTA) and Call Management Server (CMS) devices may be configured to use a port other than 2427.
