Chapter 23: IPv6

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

IPv6 Prefix Stability

Using Prefix-Stability

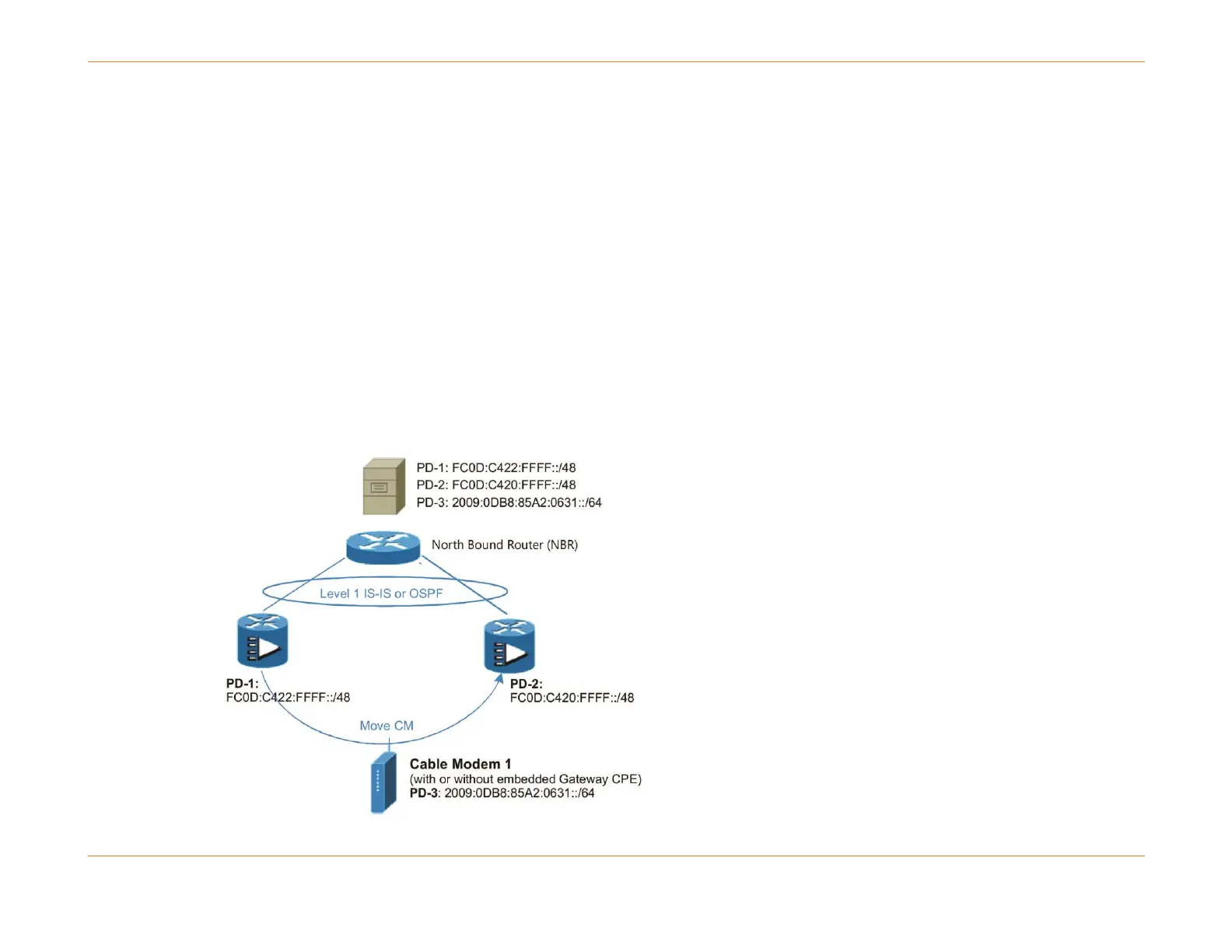

IPv6 Prefix Stability feature is an enhancement to the existing Prefix Delegation and Route Injection (PDRI) feature. The

PDRI feature allows the C4/c CMTS to learn IPv6 PD type routes as they are given via DHCPv6 to requesting IPv6 gateways.

The C4/c CMTS keeps the PD route for the duration of the lease time. The Prefix Stability feature allows an IPv6

gateway/CPE to move seamlessly to another C4/c CMTS while keeping the same IPv6 Prefix Delegation (PD), as long as

lease has not expired.

This section describes the CLI commands and provides sample configurations for the Prefix-Stability feature. Configuration

examples are provided for IS-IS and OSPFv3 (OSPF for IPv6) as IGPs used in the network:
