Chapter 5: C4c CMTS Installation Requirements

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

 Do not attempt to lift the chassis by yourself: have at least one other person assist you.

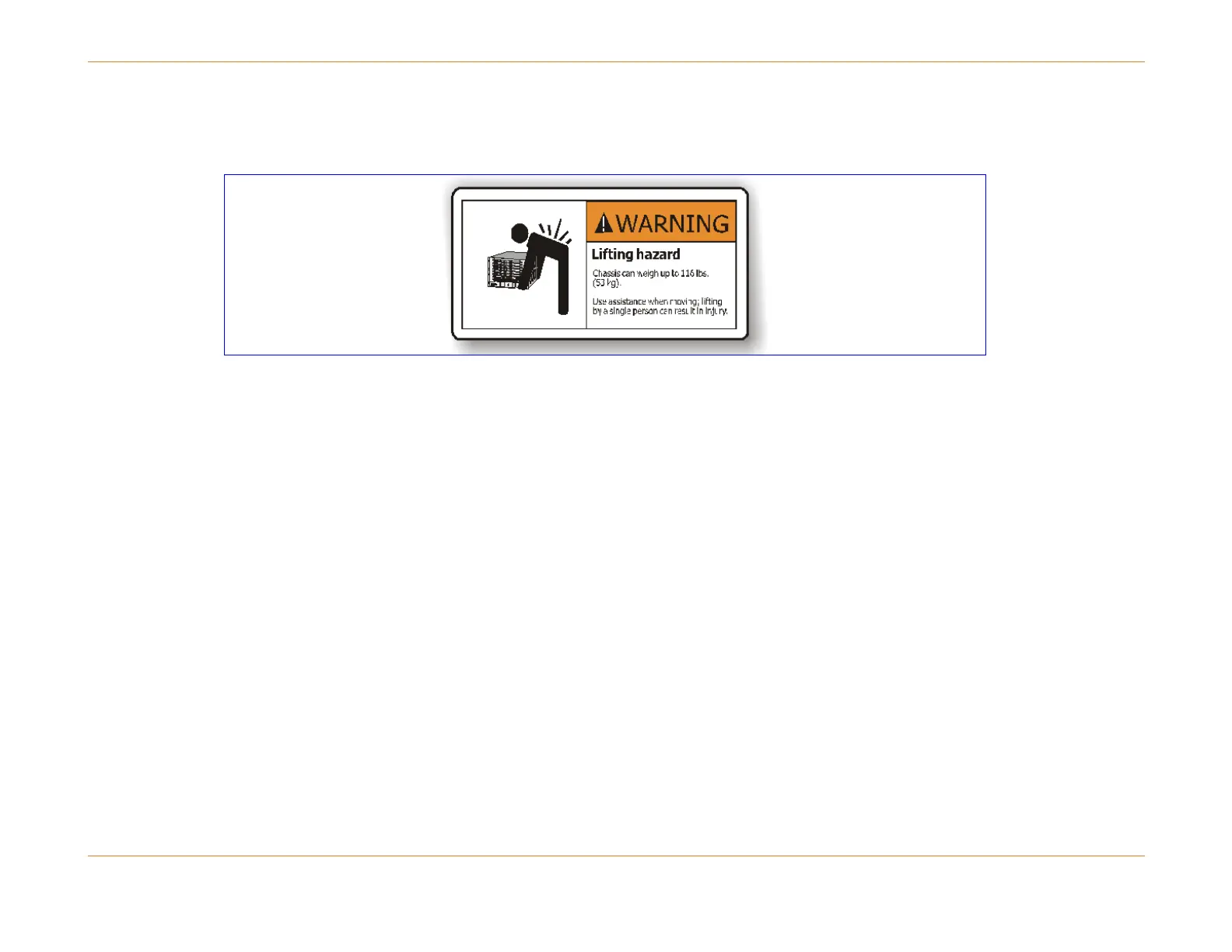

Figure 22: Lifting Hazard Warning

 Ensure that your footing is solid and that you balance the weight of the object between your feet.
