Chapter 9: Upstream Cable Access Modules (UCAMs)

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

Note: Extended Upstream frequency ranges are available to modems that support the extended frequencies. The

maximum upstream frequency can be set independent of the Annex or region of operation. Refer to Notes on DOCSIS 3.0

Upstream Frequency Range (page 308) for more information on changing the maximum allowable center frequencies.

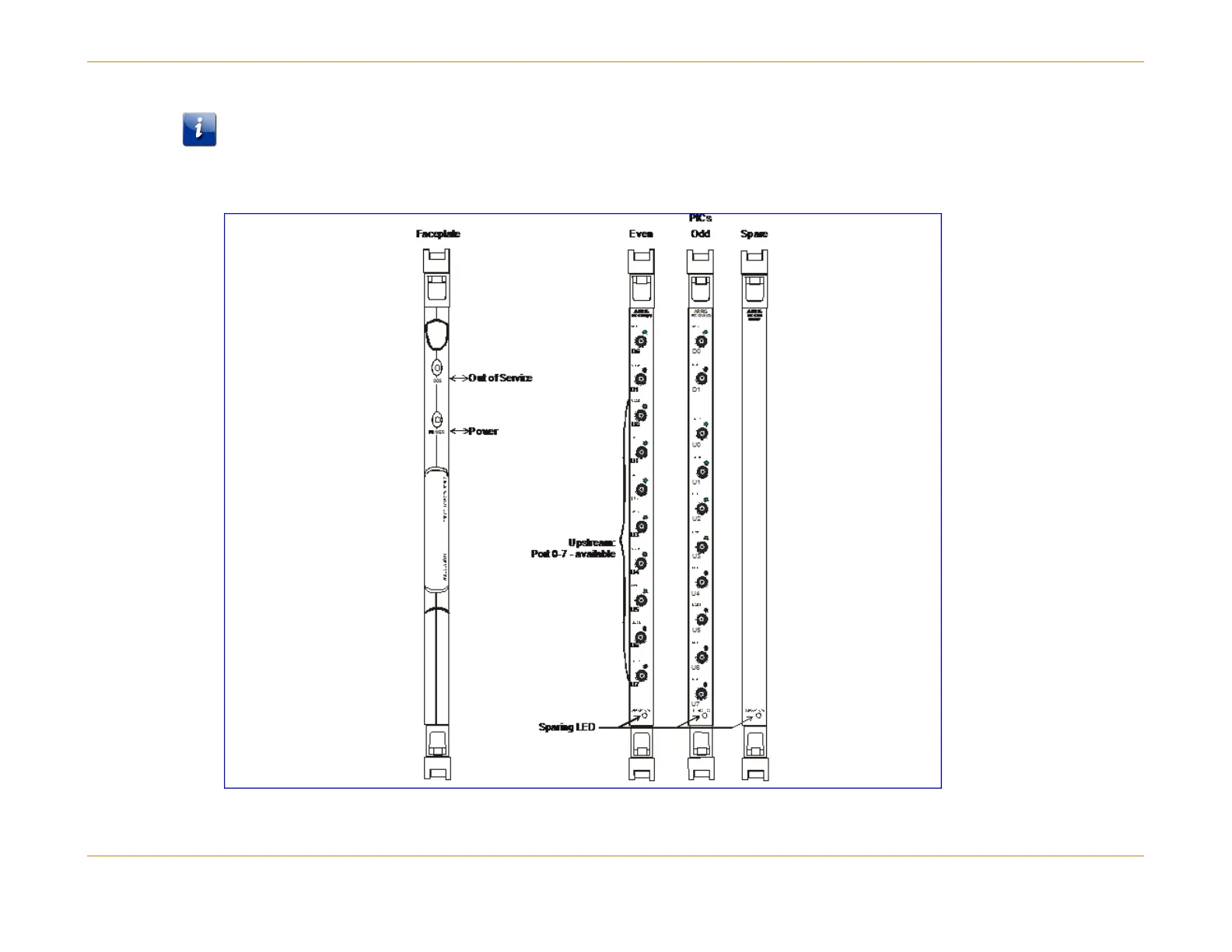

Figure 65: 24U Cable Access Module (CAM) and the Three Types of Upstream Physical Interface Cards (PICs)
