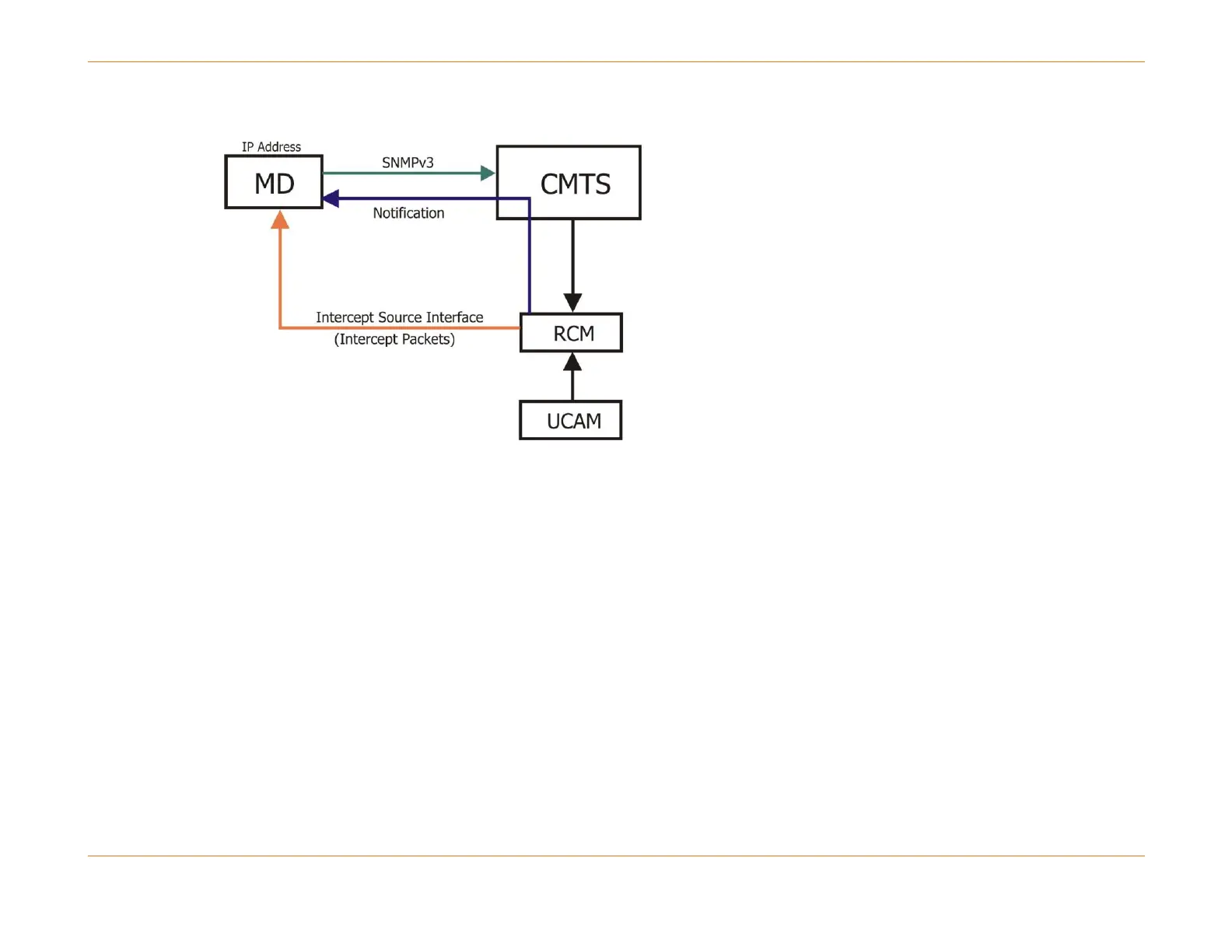

Figure 104: PC 2.0 LAES Functional Layout
PC 2.0 LAES supports the following:
 UCAM cards
 A maximum of 512 simultaneous intercepts for each of LAES and LI surveillance features.
 Both IPv4 and IPv6 traffic can be intercepted
 Maximum of 16 simultaneous tap filters per cable modem in each of the US and DS directions.
Additional Guidelines
The following items should be considered with regard to the PC 2.0 LAES feature:
 The C4/c CMTS does not support filtering on type of service, flow ID, or virtual router function (VRF). Therefore, the
following corresponding pktcESTapStreamEntry MIB objects are accepted but have no impact on the packets selected
for intercept:
 pktcESTapStreamTosByte
