Chapter 5: C4c CMTS Installation Requirements

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

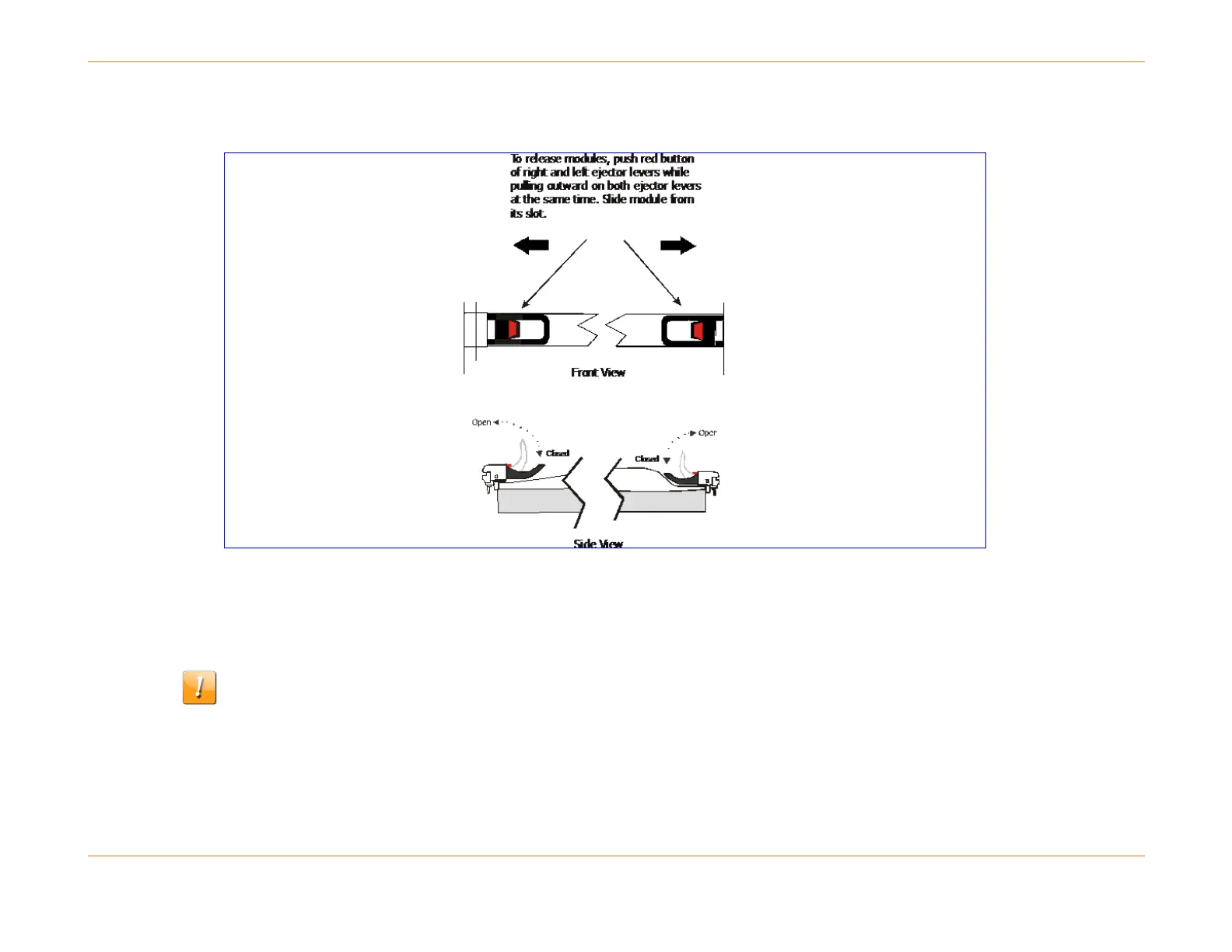

Figure 30: Ejector Levers

Fan Tray Module

The C4c CMTS contains one Fan Tray module. When a fan fails, it is easily identified by the Fan LED on the Control and

Display cover on the front of the chassis. Maintenance personnel can replace the failed Fan Tray Module (also called fan

tray) without shutting down the entire system. The chassis can operate even if one of the six fans in the Fan Tray Module

fails.

These fans cool the system components by forcing air from the right side of the chassis through all front modules and out

the left side of the chassis.
