Arris C4C - Installing the Fan Tray Module

To Next Page

To Previous Page

Chapter 5: C4c CMTS Installation Requirements

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

4. Flip the ejector levers toward each other to close and lock the Fan Tray Module in the slot. The teeth of the ejector

levers engage the seating rails and the ejectors click into place if the module is seated correctly.

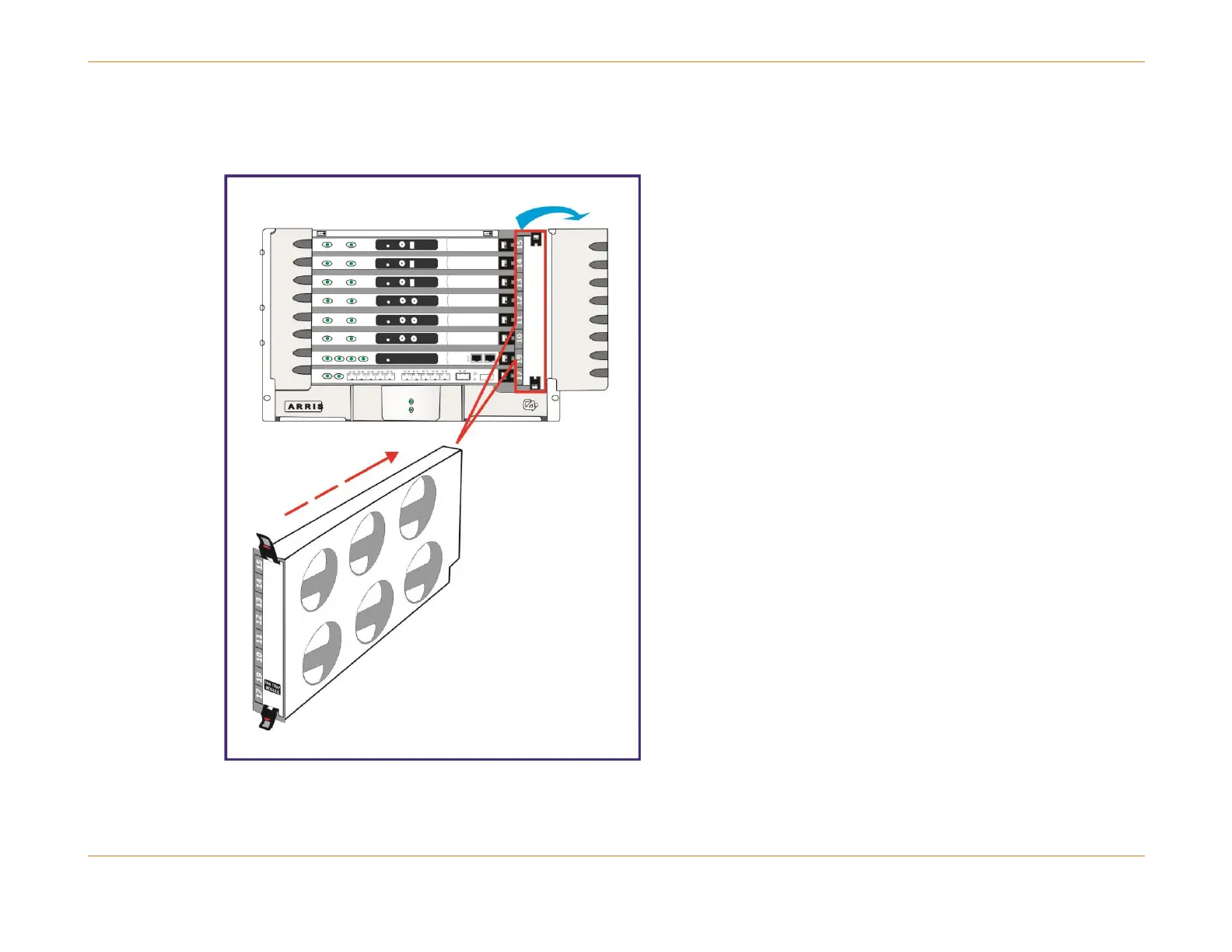

Figure 31: Installing the Fan Tray Module
