Chapter 6: System Control Module (SCM)

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

SCM Faceplate Designation

The following figure displays the various SCM faceplate designations.

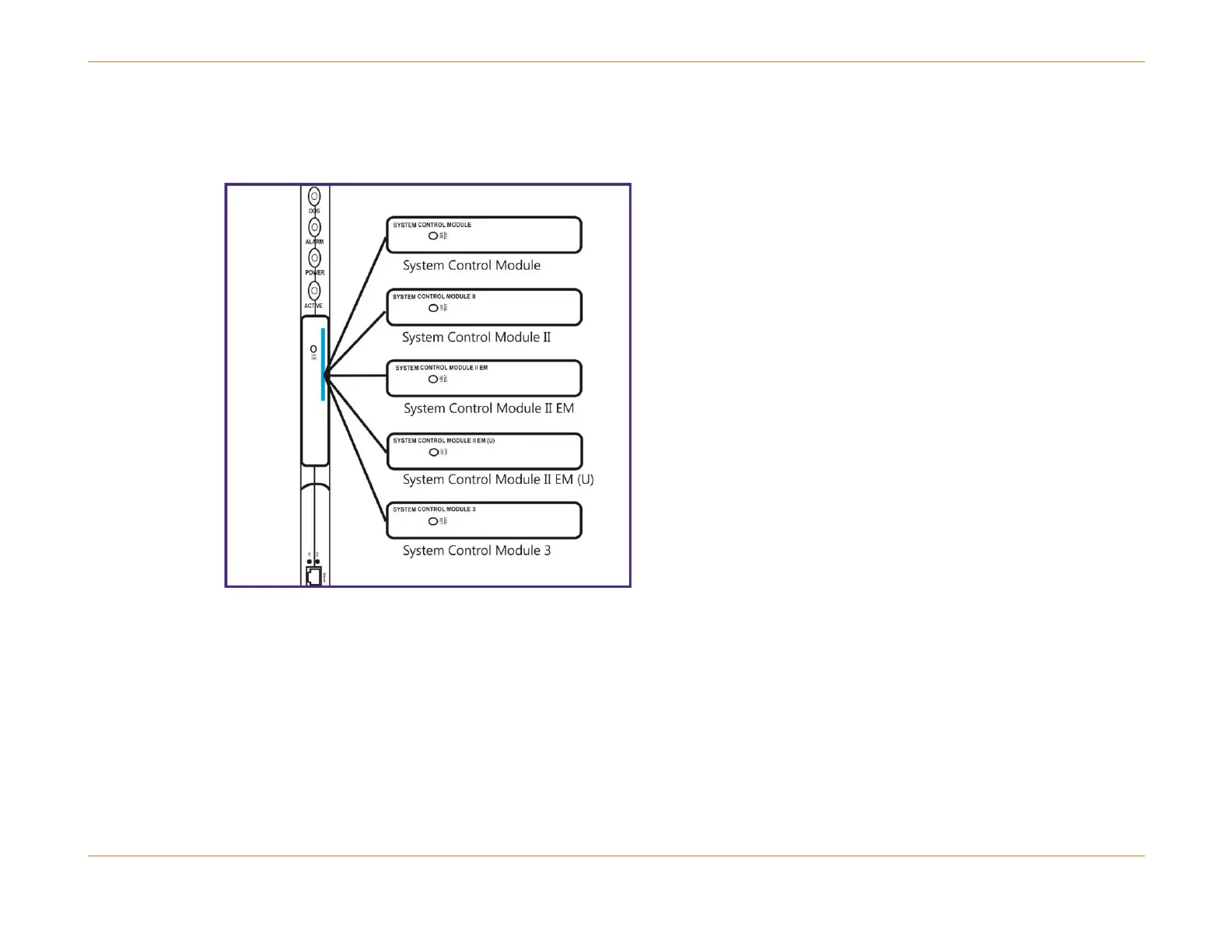

Figure 43: SCM Faceplate Designations

SCM PIC Considerations

The SCM PIC in slot 19 comes equipped with a MAC address and a printed label. This MAC serves as the basis for all

generated MAC addresses in the chassis. The slot 19 SCM PIC is also equipped with a fan controller. The fan controller is a

daughter board that is only visible when the PIC is removed from the slot. The SCM PIC used in slot 20 has neither the fan

controller nor the printed MAC address.
