Chapter 4: C4 CMTS General Installation Requirements
STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide
© 2016 ARRIS Enterprises LLC. All Rights Reserved. 120
These feeds supply power to the C4 CMTS midplane and to all circuit modules. Power is distributed to the twenty-one slots
by the four branches as shown in the figure below.

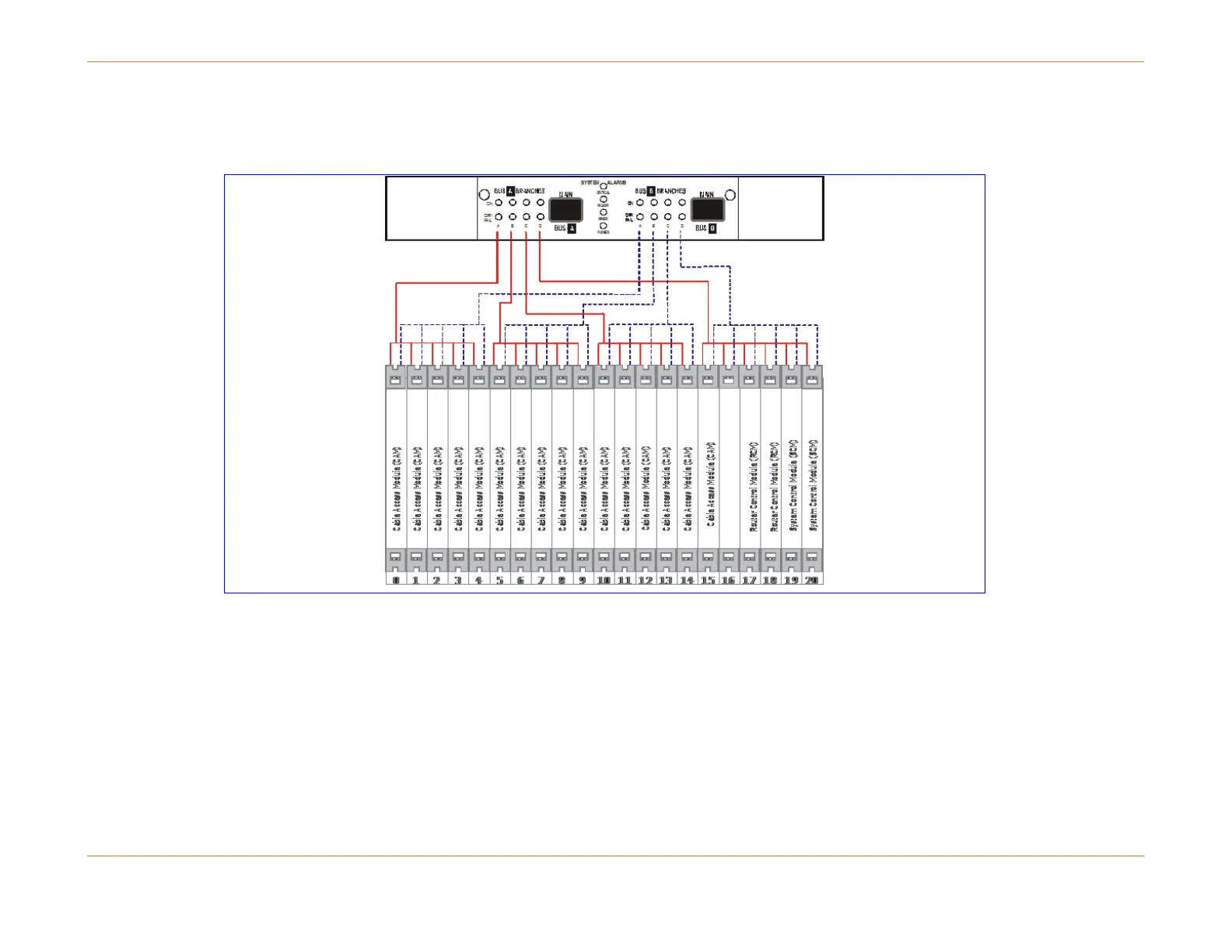

Figure 19: Second Level — Internal Branch Fusing
If, for example, a damaged module or bent pin causes an electrical short, the fuses and overcurrent circuits protect the
power distribution wiring and midplane circuitry from damage.
