Chapter 8: Downstream Cable Access Modules (DCAMs)
STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide
© 2016 ARRIS Enterprises LLC. All Rights Reserved. 233

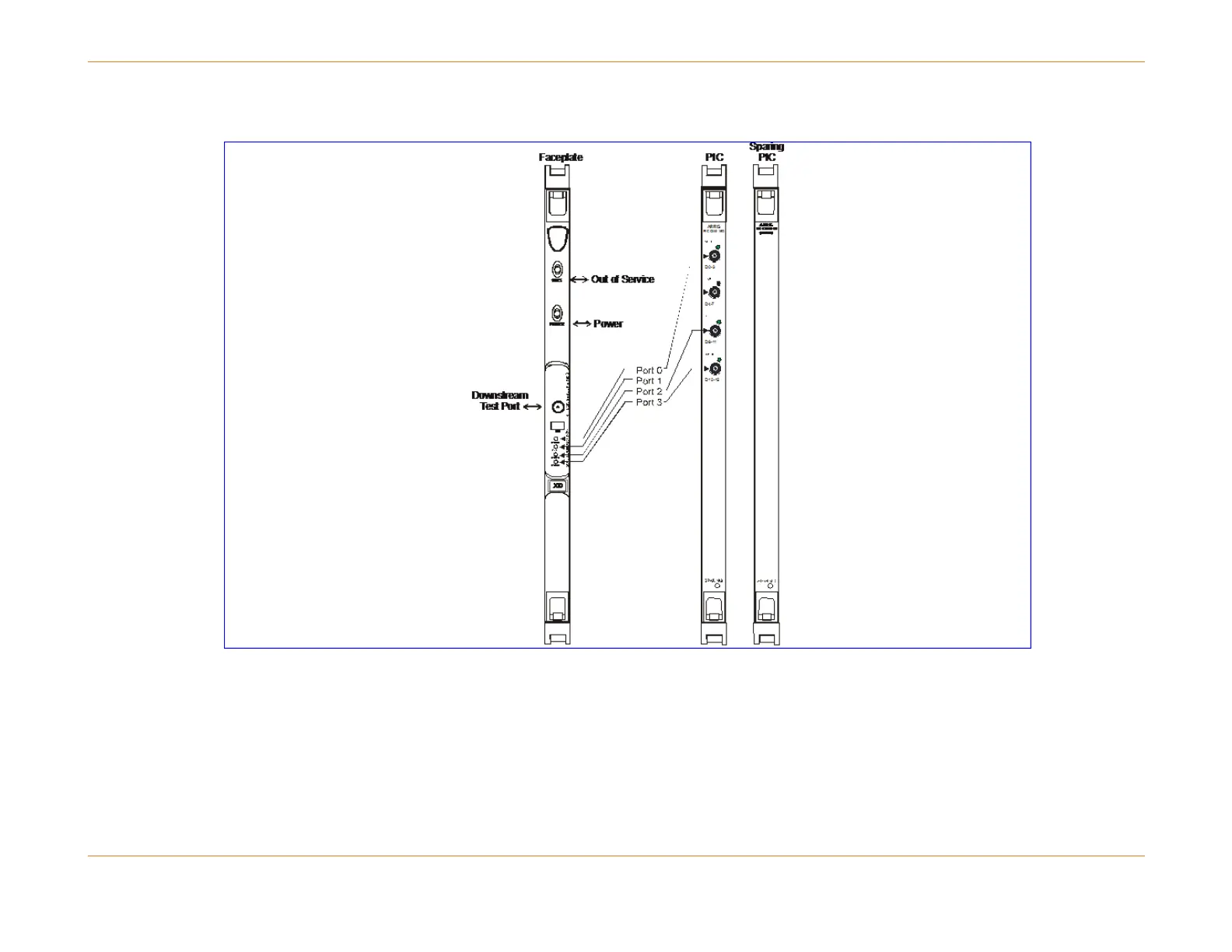

Figure 60: XD Cable Access Module (CAM) and Rear Physical Interface Cards (PICs)
Port Designation on Faceplate
The XD CAM upgrade kit contains a decal (XD) which should be applied to the front of the faceplate to identify upgraded
CAMs as XD CAMs. However, they do not contain a decal to cover the port designations. Hence, if you are running a 16D
CAM or have upgraded a 16D CAM to an XD CAM, the ports on the faceplate will be shown as D0-3, D4-7, D8-11, and D12-
