Chapter 8: Downstream Cable Access Modules (DCAMs)
STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide
© 2016 ARRIS Enterprises LLC. All Rights Reserved. 256

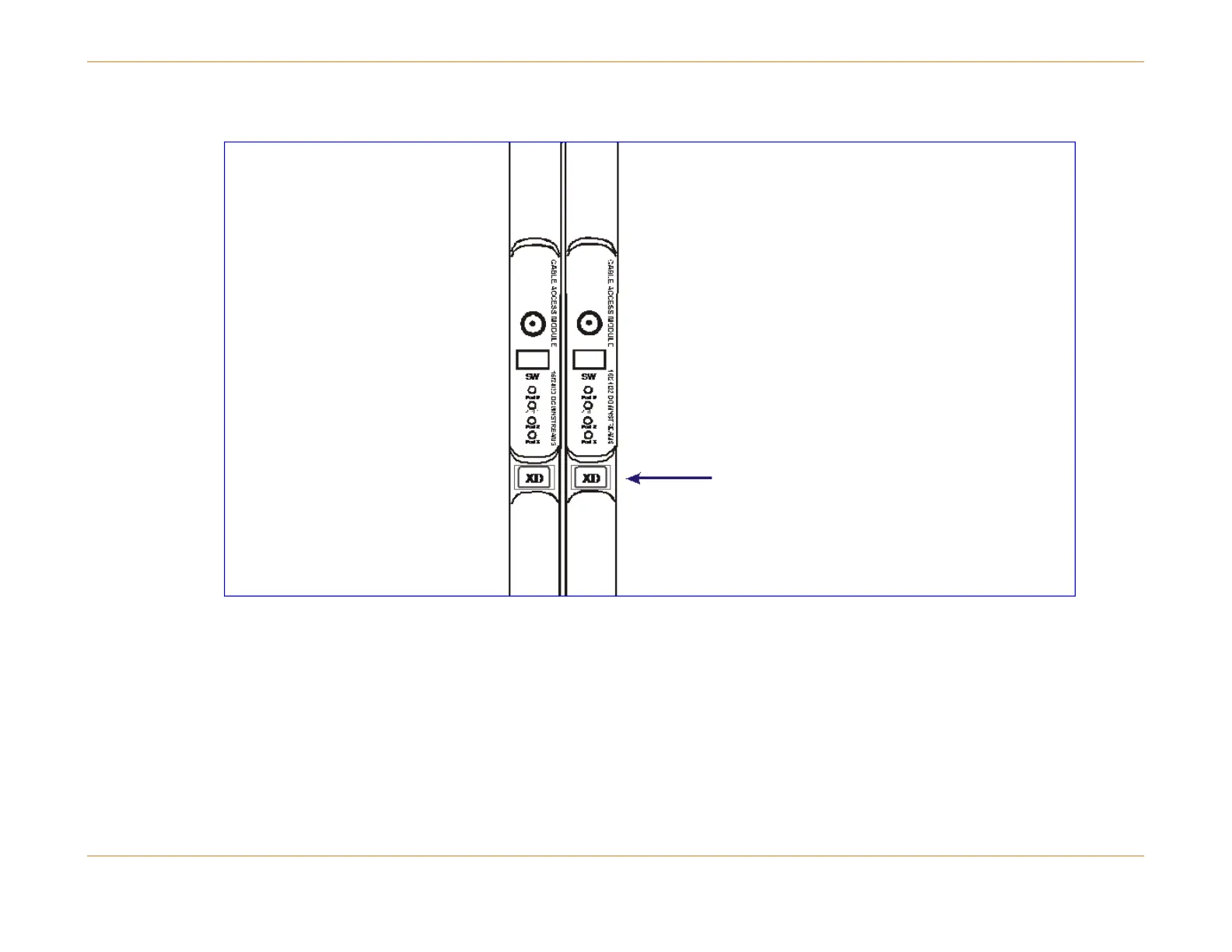

Figure 63: Upgraded CAMs with XD Decals
Sample Script for 32D CAM Provisioning
The following script is an example of the provisioning commands needed to activate a 32D CAM after it has been upgraded
to an XD CAM. In this example slot 14 is used for the active CAM. Slot 15 is also an XD CAM and is the spare group leader.
This example presumes Annex B is being used: the downstream channels are 6 MHz wide.
# Change card types from 16D CAM to 32D CAM (Annex B.)
configure slot 14 type 32DCAM-B name "CAM (32D)"
