Chapter 24: IP Video

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

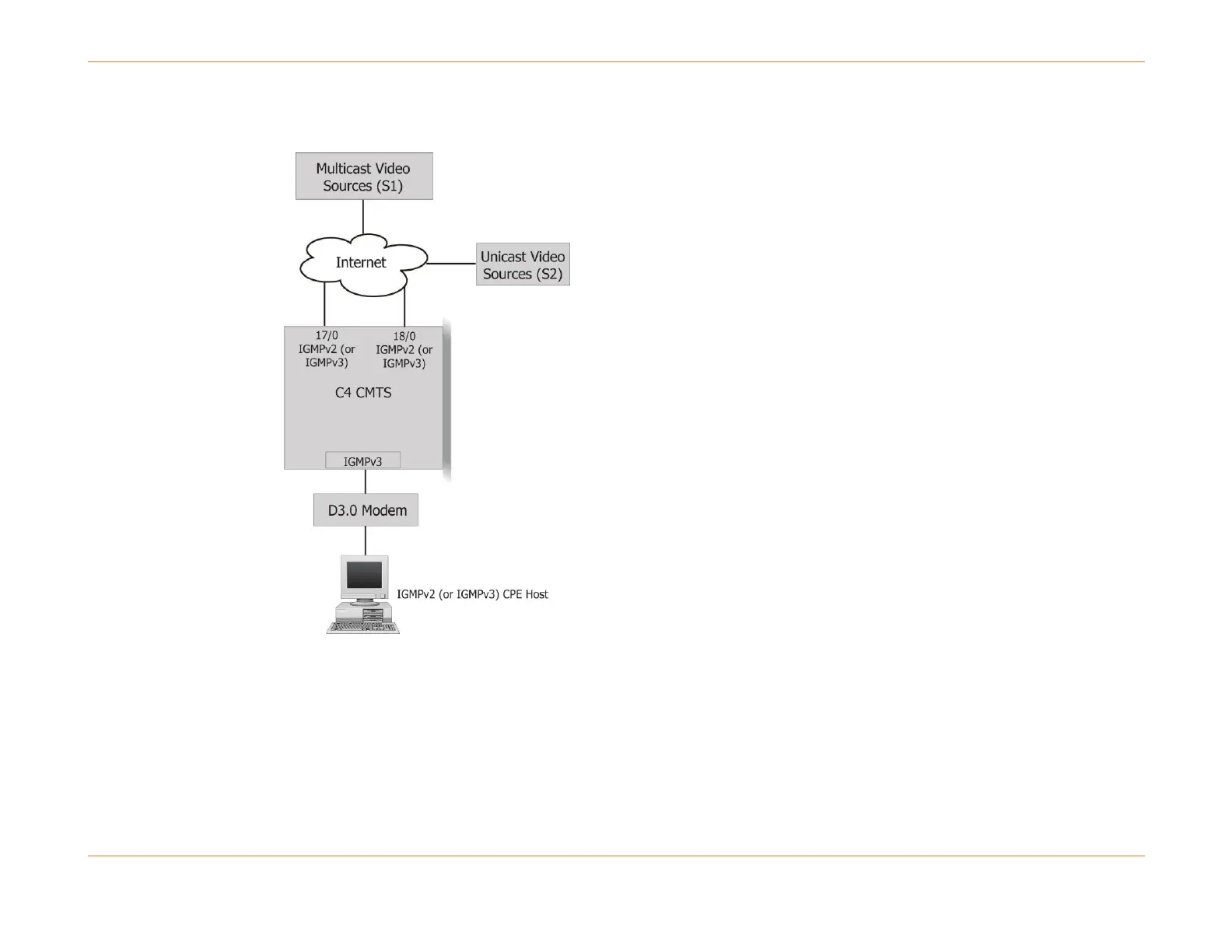

Figure 95: ASM Architecture

ASM Components

The ASM architecture consists of several components, including:

 IGMPv2 IGMPv3 host on the network side

 IGMP proxy with IGMPv3 router/querier on the cable side
