Chapter 16: Dynamic Routing Protocols

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

Each router in a Level 1 area builds an area unique LSP database with its peers. Disjointed Level 1 areas must be joined

together via a Level 2 (backbone) area.

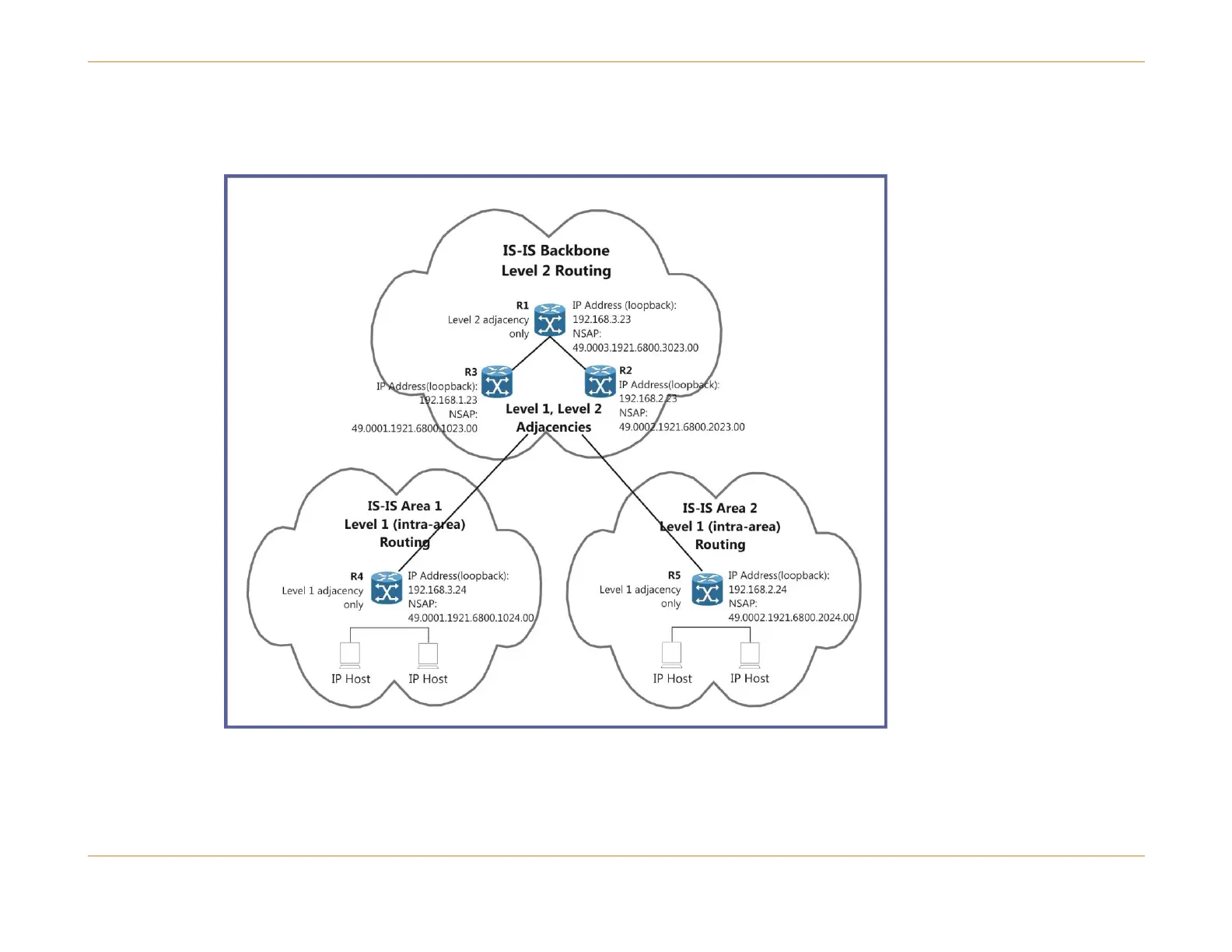

Figure 82: IS-IS Level 1 and 2 Routing

By default, Level 1 areas are considered "stub" areas because they rely on a default route to forward traffic out of the area.

However, route leaking from Level 2 and Level 1 areas allows for more intelligent inter-area routing.
