Chapter 6: System Control Module (SCM)

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

3. Remove the SCM from the CMTS chassis and place on a flat, grounded antistatic mat with the components facing up.

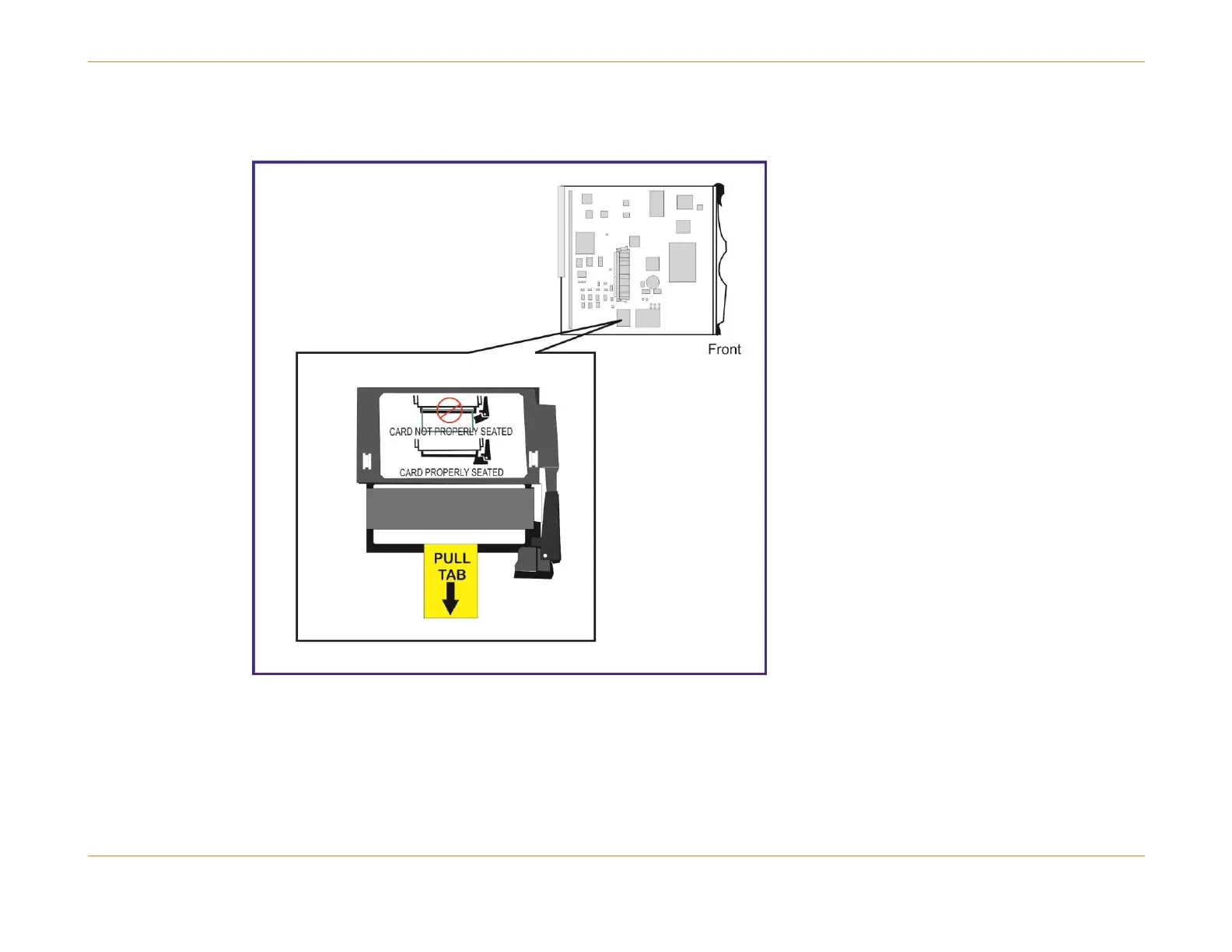

The following figure shows the location of the compact flash disk on the SCM II EM (U) and SCM 3.
