ST SPC560P34 - Figure 68. MC

To Next Page

To Previous Page

Reset Generation Module (MC_RGM) RM0046

188/936 Doc ID 16912 Rev 5

PAD[4:2]

RESET_B

Registers

Platform Interface

core

MC_RGM

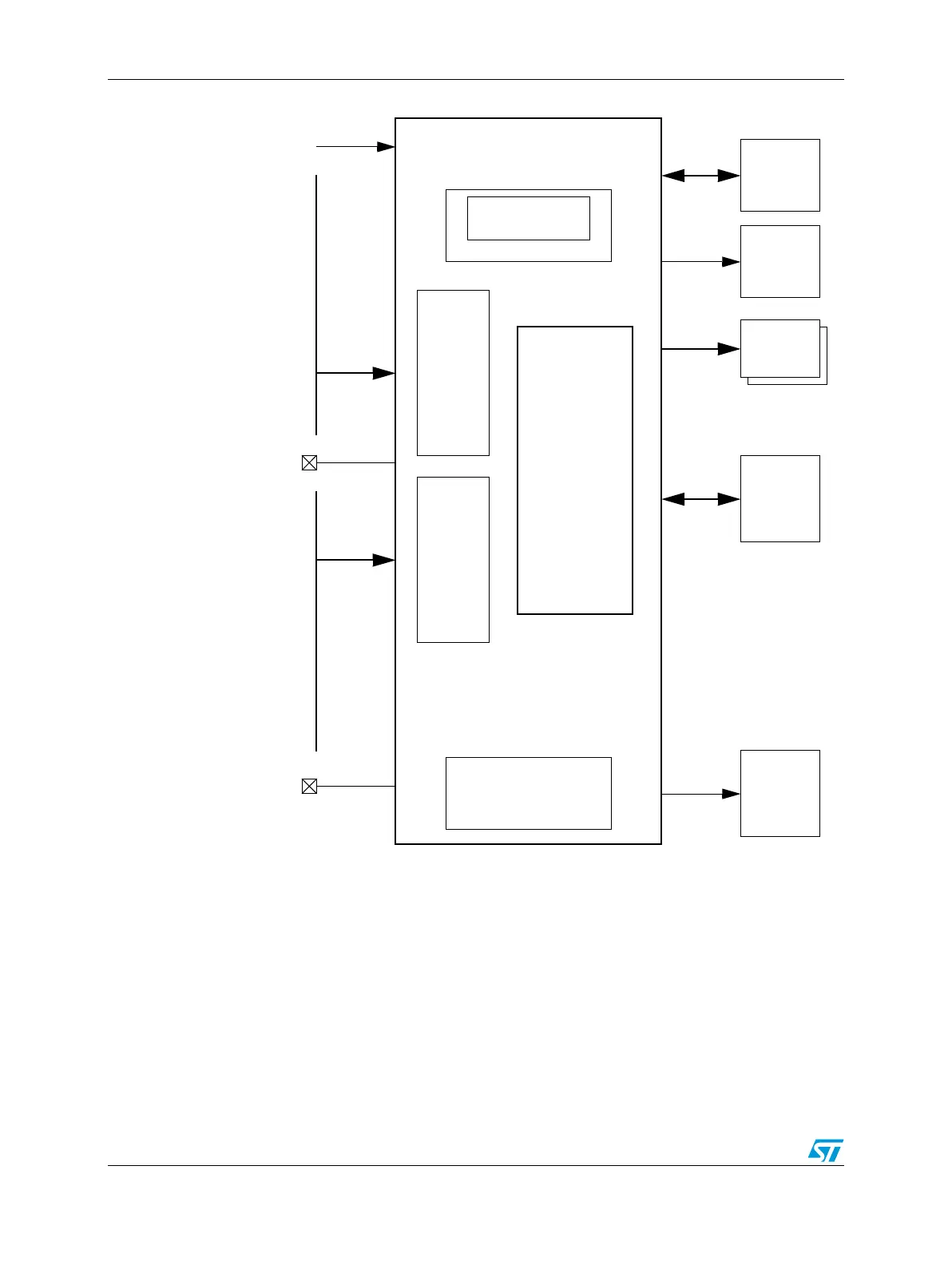

Figure 68. MC_RGM Block Diagram

MC_ME

power-on

1.2V low-voltage detected

software watchdog timer

2.7V low-voltage detected

(VREG)

2.7V low-voltage detected

(flash)

2.7V low-voltage detected (I/O)

JTAG initiated reset

core reset

software reset

checkstop reset

PLL0 fail

oscillator frequency lower than

reference

CMU0 clock frequency

higher/lower than reference

4.5V low-voltage detected

code or data flash fatal error

PLL1 fail

Functional

Reset Filter

Boot Mode

Capture

Destructive

Reset Filter

Reset

State

Machine

SSCM

peripherals

MC_CGM
