RM0046 eTimer
Doc ID 16912 Rev 5 733/936
generation has the advantage of allowing almost any desired PWM frequency and/or
constant on or off periods. This mode of operation is often used to drive PWM amplifiers
used to power motors and inverters. The CMPLD1 and CMPLD2 registers are especially
useful for this mode, as they allow the programmer time to calculate values for the next
PWM cycle while the PWM current cycle is underway.

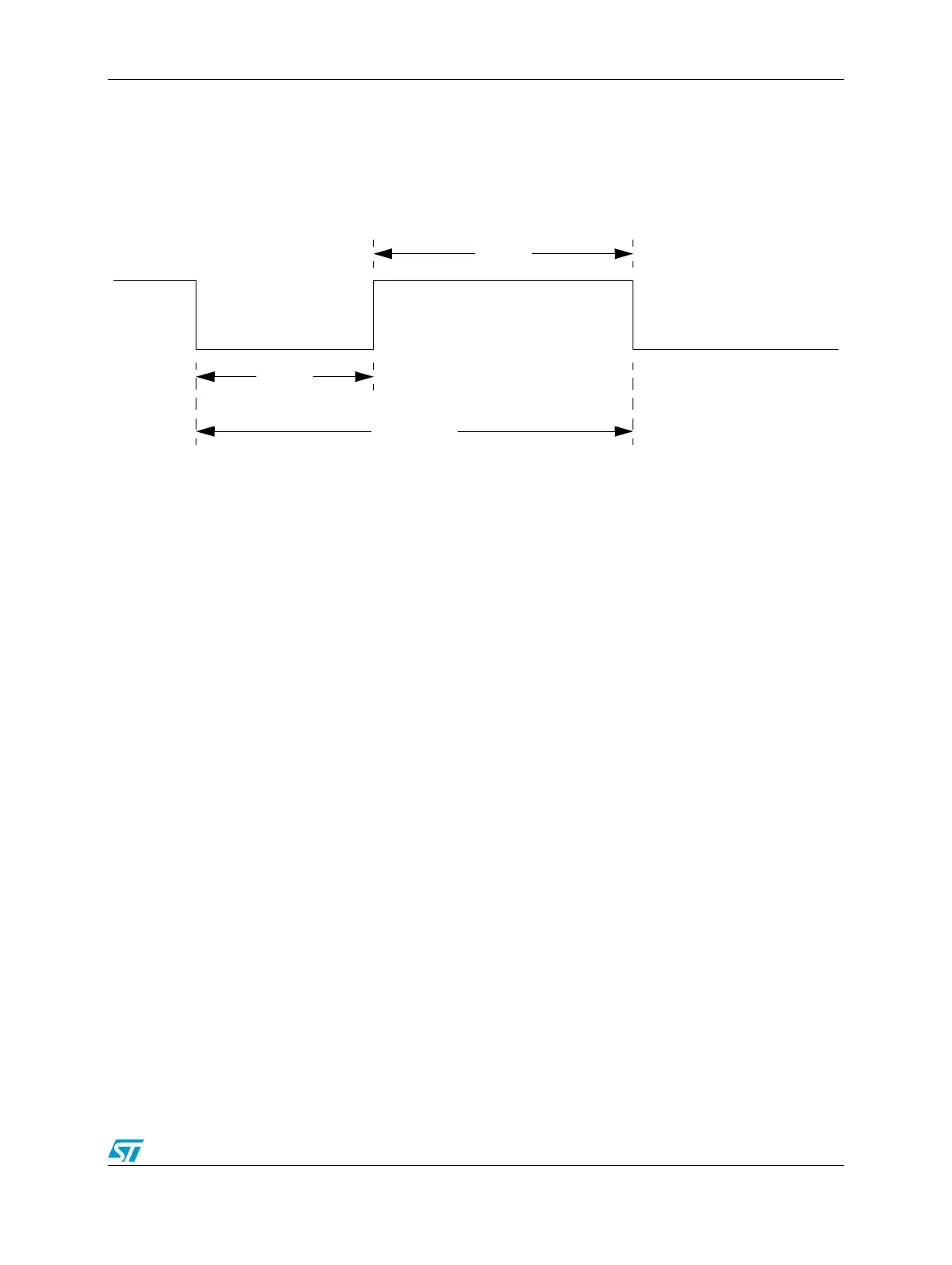

Figure 417. Variable PWM waveform
Usage of compare registers
The dual compare registers (COMP1 and COMP2) provide a bidirectional modulo count
capability.
The COMP1 register should be set to the desired maximum count value or 0xFFFF to
indicate the maximum unsigned value prior to roll-over, and the COMP2 register should be
set to the minimum count value or 0x0000 to indicate the minimum unsigned value prior to
roll-under.
When the output mode is set to 0100, the OFLAG will toggle while using alternating
compare registers. In this variable frequency PWM mode, the COMP2 value defines the
desired pulse width of the on time, and the COMP1 register defines the off time. COMP1 is
used when OFLAG == 0 and COMP2 is used when OFLAG == 1.
Use caution when changing COMP1 and COMP2 while the counter is active. If the counter
has already passed the new value, it will count to 0xFFFF or 0x0000, roll over, then begin
counting toward the new value. The check is: CNTR = COMPx, not CNTR > COMP1 or
CNTR < COMP2.
Using the CMPLD1 and CMPLD2 registers to preload compare values helps to minimize
this problem.
Usage of Compare Load registers
The CMPLD1, CMPLD2, and CCCTRL registers offer a high degree of flexibility for loading
compare registers with user-defined values on different compare events. To ensure correct
functionality while using these registers, the following methods are recommended.
The purpose of the compare load feature is to allow quicker updating of the compare
registers. A compare register can be updated using interrupts. However, because of the
latency between an interrupt event occurring and the service of that interrupt, there is the
possibility that the counter may have already counted past the new compare value by the
