ST SPC560P34 - DMA Channels with no Triggering Capability; Figure 204. DMA Mux Channel 4-15 Block Diagram

DMA Channel Mux (DMA_MUX) RM0046
432/936 Doc ID 16912 Rev 5
19.5.2 DMA channels with no triggering capability
Channels 4–15 of the DMA Mux provide the normal routing functionality as described in
Section 19.1.3, “Modes of operation.

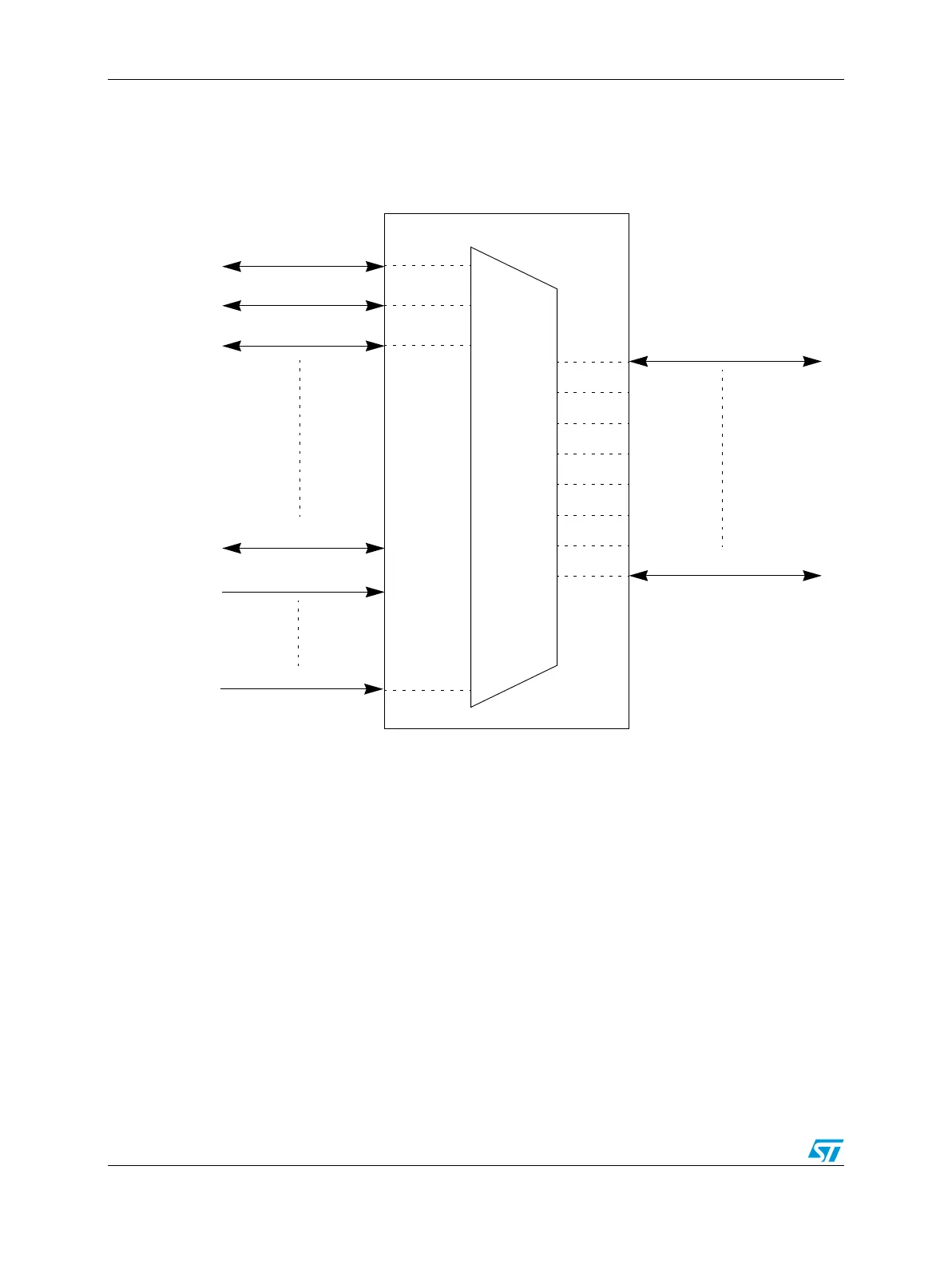

Figure 204. DMA mux channel 4–15 block diagram
19.6 Initialization/application information
19.6.1 Reset
The reset state of each individual bit is shown within the register description section (see
Section 19.3.2, “Register descriptions). In summary, after reset, all channels are disabled
and must be explicitly enabled before use.
19.6.2 Enabling and configuring sources
Enabling a source with periodic triggering:
Source #1
Source #2
Source #3
Source #21
Always #1
Always #9
DMA Channel #4
DMA Channel #15
