ST SPC560P34 - Figure 481. SPC560 P40;34 Flash Partitioning and RCHW Search; Single Chip Boot Mode; Table 438. Flash Boot Sector

To Next Page

To Previous Page

Boot Assist Module (BAM) RM0046

810/936 Doc ID 16912 Rev 5

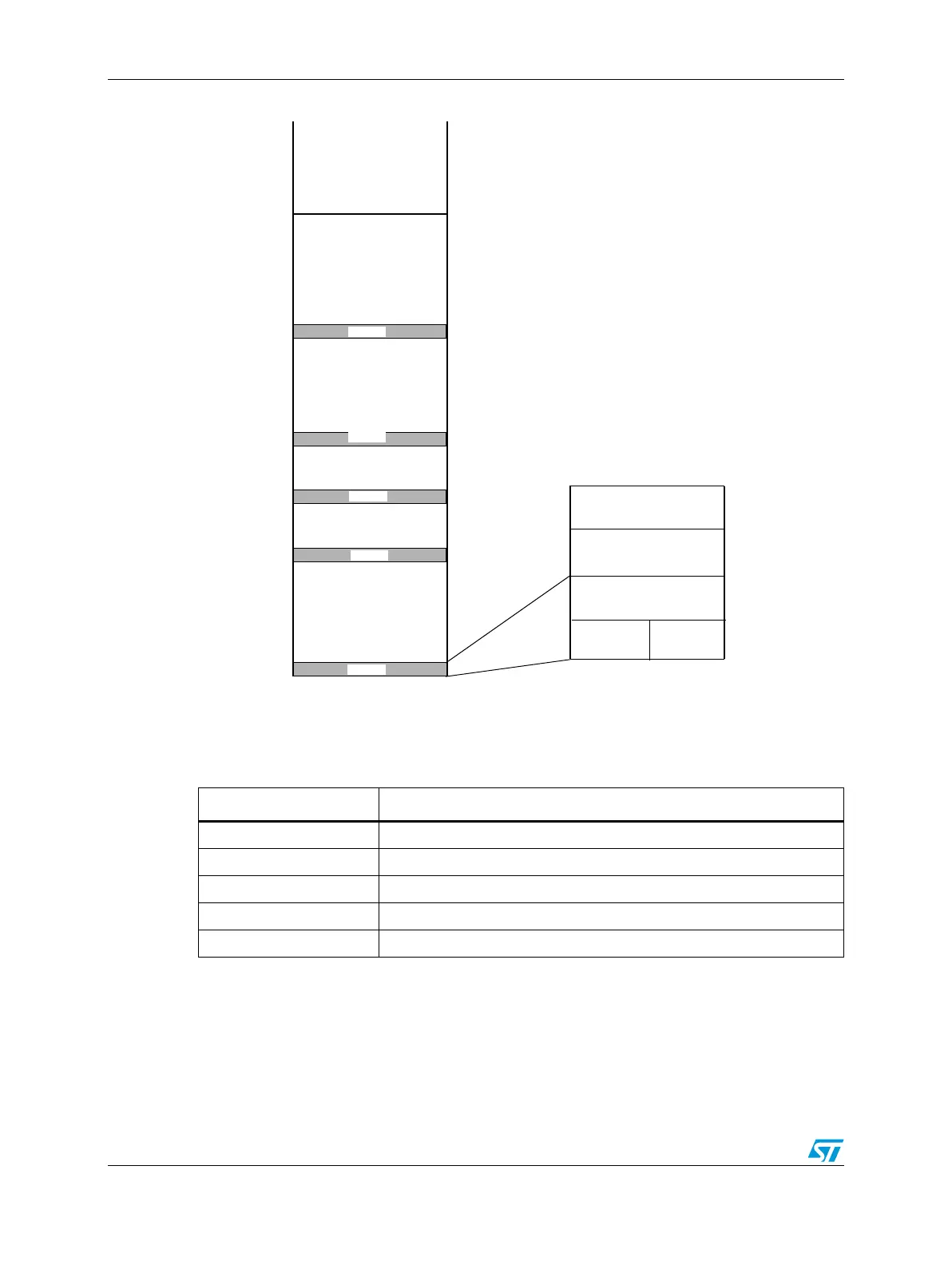

Figure 481. SPC560P40/34 Flash partitioning and RCHW search

33.5.4 Single chip boot mode

In single chip boot mode, the hardware searches the flash boot sector for a valid boot ID. As

soon the device detects a bootable sector, it jumps within this sector and reads the 32-bit

word at offset 0x4. This word is the address where the startup code is located (reset boot

vector).

32K

Boot information

16K

32K

0x0000 0000

0x0000 8000

0x0000 C000

0x0001 0000

0x0002 0000

Internal Flash

RCHW

0x0000 0000

0x0000 0004

0x0000 0008

0x0000 000C

32K

0x0001 8000

Boot information

128K

Boot information

Application start address

Application

Table 438. Flash boot sector

Block Address

0 0x0000_0000

1 0x0000_8000

2 0x0000_C000

3 0x0001_0000

4 0x0001_8000

Main Page
